1986 Suzuki GV1200GLF Clutch Diagram

← All diagrams

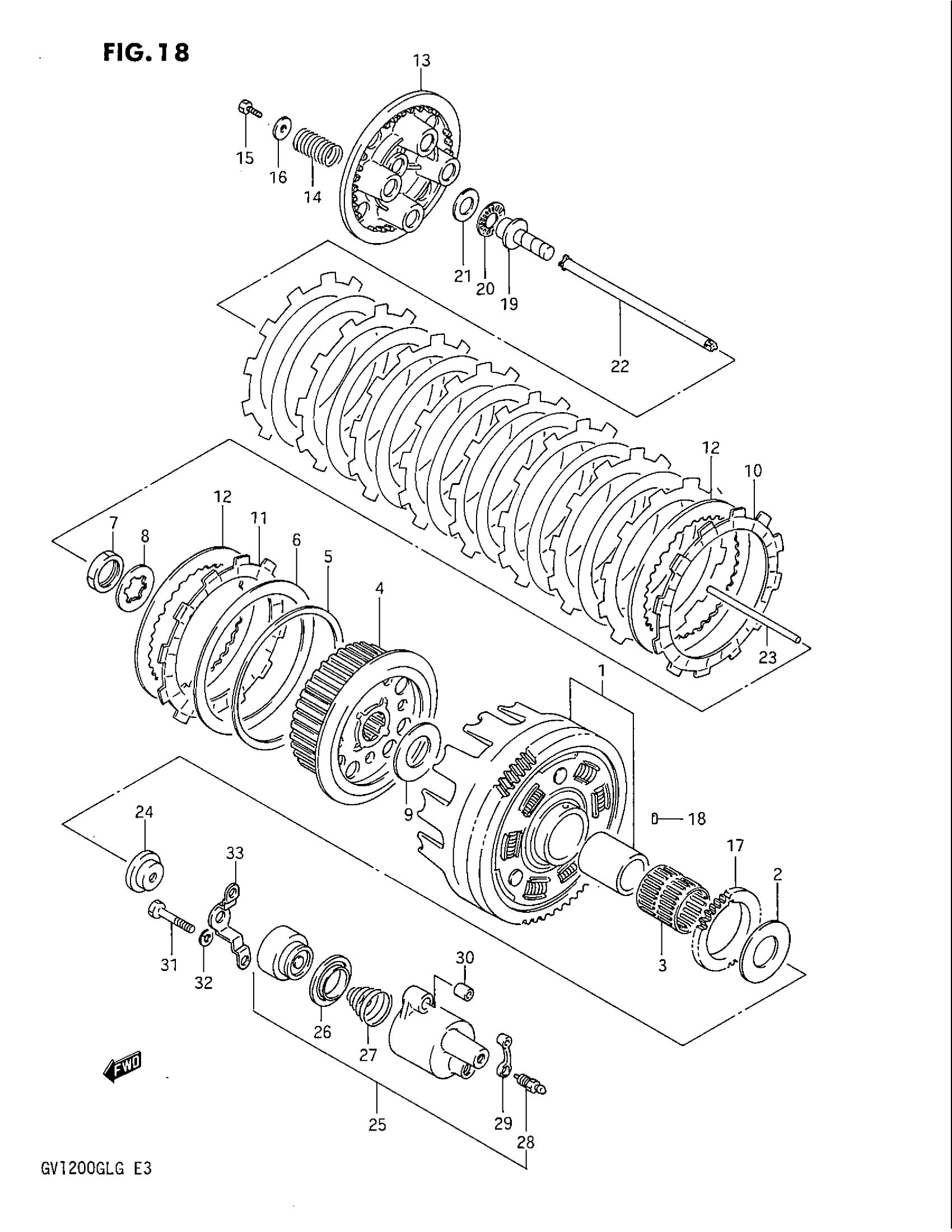

Find the part on the Clutch diagram for your 1986 Suzuki GV1200GLF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GV1200GLF Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVEN (NT:72) | ~E.NO.104389 This part replaces 21200-05870.

21200-05874

1
Out of stock

1

GEAR, PRIMARY DRIVEN (NT:72) | E.NO.104390~

21200-05874

1
Out of stock

2

WASHER | MODEL F/F2

09160-25057

1
Out of stock

2

WASHER | MODEL G This part replaces 09160-25062.

09160-25067

1
Out of stock

3

BEARING

09263-35013

1

$34.44

In stock

4

NO DESCRIPTION AVAILABLE This part replaces 21410-05A00.

21410-24A00

1
Out of stock

5

SEAT, WAVE WASHER

21471-37400

1

$9.75

In stock

6

WASHER, WAVE

09164-00004

1

$11.15

In stock

7

NUT

09140-24007

1

$3.84

In stock

8

WASHER

09167-25007

1
Out of stock

9

.WASHER (25X50X2.5)

09160-25056

1

$11.40

In stock

10

PLATE, DRIVE (T:3.0)

21441-37400

9

$18.07

In stock

12

PLATE, DRIVEN

21451-05A00

9

$10.09

In stock

13

NO DESCRIPTION AVAILABLE | MODEL F/F2 This part replaces 21462-05A00.

21462-20A01

1
Out of stock

13

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 21462-05A01.

21462-20A01

1
Out of stock

14

4

$3.47

In stock

15

4

$1.90

In stock

16

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

4
Out of stock

17

GEAR, OIL PUMP DRIVE (NT:35)

16321-05A00

1
Out of stock

18

PIN

09261-06002

1

$1.87

In stock

19

PIECE, PUSH

23121-44100

1
Out of stock

20

BEARING

09263-15003

1

$8.03

In stock

21

1

$3.77

In stock

22

ROD, PUSH RH

23110-38400

1
Out of stock

23

ROD, PUSH LH

23111-05A01

1

$14.11

In stock

24

SEAL, OIL This part replaces 09285-06014.

09285-06016

1
Out of stock

25

CLUTCH CY RELEA | Includes Item(s) 26 - 29 This part replaces 23160-05A01.

23160-05A03

1
Out of stock

26

CUP

23163-05A00

1

$7.73

In stock

27

SPRING

23164-05A00

1

$4.33

In stock

28

BLEEDER

59121-01A00

1
Out of stock

29

CAP

59122-01A00

1
Out of stock

30

PIN

04211-09129

2
Out of stock

31

BOLT This part replaces 01107-06356.

01500-0635A

2
Out of stock

32

2

$1.97

In stock

33

RETAINER | MODEL F/F2

23117-05A02

1
Out of stock
