1986 Suzuki GV1200GLF Cam Chain Diagram

← All diagrams

Find the part on the Cam Chain diagram for your 1986 Suzuki GV1200GLF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

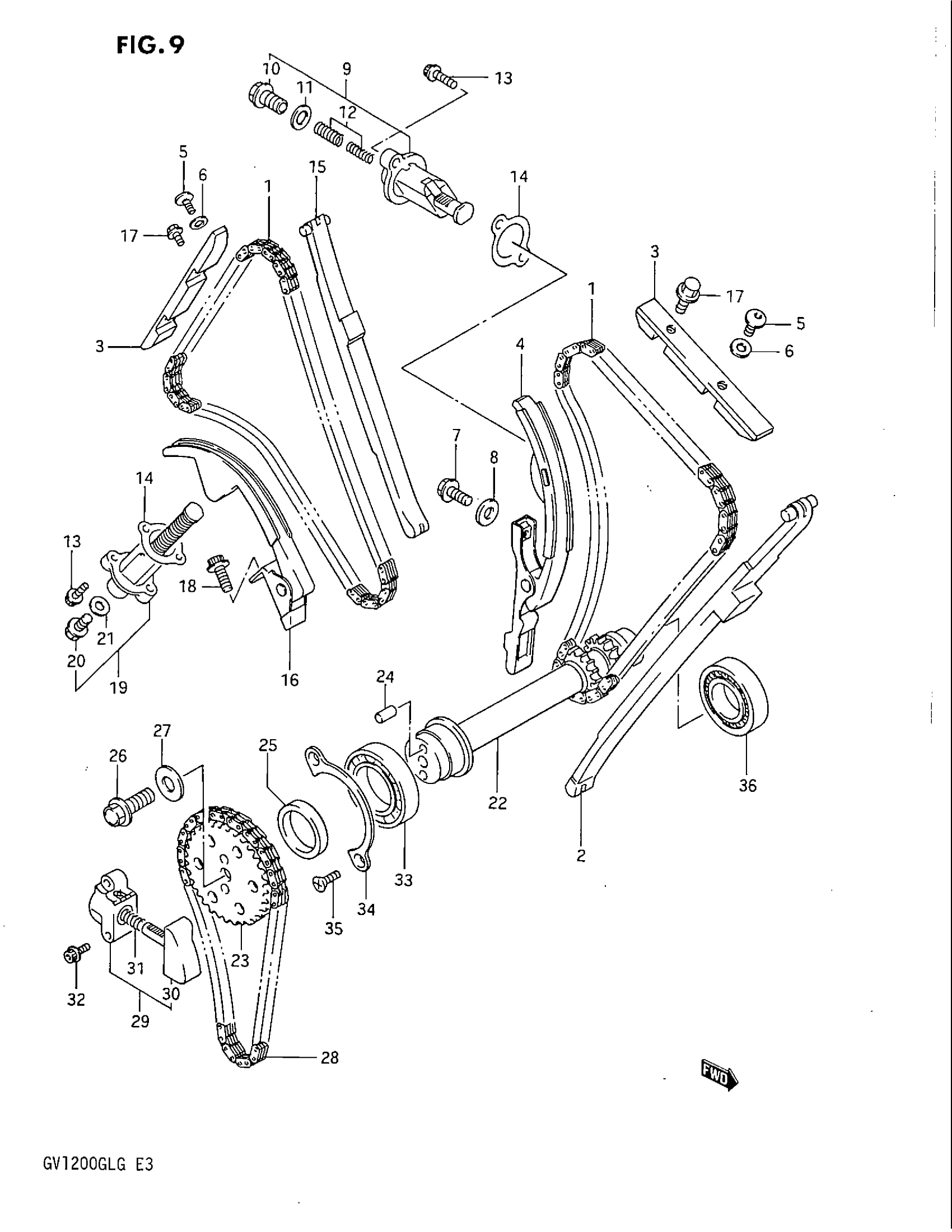

1986 Suzuki GV1200GLF Cam Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE

12760-05A00

2
Out of stock

2

GUIDE, FRONT CAM CHAIN, NO.1

12771-05A00

1
Out of stock

3

GUIDE,CAM CHAIN This part replaces 12782-05A01.

12782-05A02

2
Out of stock

4

TENSIONER, FRONT CAM CHAIN

12810-05A00

1
Out of stock

5

SCREW | ~E.NO.104659E.NO.104660~ This part replaces 09139-06031.

09139-06078

2
Out of stock

6

GASKET (5.8X13X1.2) | ~E.NO.104659E.NO.104660~ This part replaces 09168-06015.

09168-06023

2
Out of stock

7

BOLT This part replaces 01517-08205.

01550-0820A

1
Out of stock

8

GASKET This part replaces 09168-08014.

09168-08021

1
Out of stock

9

ADJUSTER ASSY, TENSIONER FRON | Includes Item(s) 10 - 12

12831-05A00

1
Out of stock

10

PLUG

12833-05A00

1
Out of stock

11

GASKET This part replaces 12837-05A00.

09168-12018

1
Out of stock

12

SPRING SET

12838-05A00

1
Out of stock

13

BOLT This part replaces 07110-06255.

07130-0625B

4
Out of stock

14

.GASKET,TENSIONER ADJUSTER This part replaces 12837-38200.

12837-24A10

2
Out of stock

15

GUIDE, REAR CAM CHAIN, NO.1

12772-05A00

1
Out of stock

16

TENSIONER, CAM CHAIN REAR

12815-05A01

1
Out of stock

17

BOLT | ~E.NO.104659E.NO.104660~ This part replaces 01517-06108.

01550-06107

2
Out of stock

18

BOLT This part replaces 07120-08208.

07120-0820A

1
Out of stock

19

ADJUSTER ASSY, FRONT TENSIONER | Includes Item(s) 20 - 21 This part replaces 12832-05A00.

12832-24A01

1
Out of stock

20

PLUG (11X8)

12834-05A00

1
Out of stock

20

PLUG (11X12)

12834-05A01

1
Out of stock

21

GASKET This part replaces 12837-05A00.

09168-12018

1
Out of stock

22

SHAFT, IDLER | MODEL F This part replaces 12715-05A00.

12715-05A01

1
Out of stock

22

SHAFT, IDLER | MODEL F2/G

12715-05A01

1
Out of stock

23

SPROCKET, IDLER SHAFT

12745-05A00

1
Out of stock

24

PIN

09261-06001

2
Out of stock

25

SPACER

09180-32004

1
Out of stock

26

BOLT (10X27) | MODEL F

09103-10108

1
Out of stock

26

BOLT (10X24) | MODEL F2/G

09103-10112

1
Out of stock

27

WASHER | MODEL F

09160-10076

1
Out of stock

28

CHAIN, IDLER SHAFT DRIVE

12761-05A00

1
Out of stock

29

ADJUSTER ASSY, IDLER CHAIN | Includes Item(s) 30 - 31

12835-05A00

1
Out of stock

30

SHOE

12836-05A00

1
Out of stock

31

SPRING

12839-05A00

1
Out of stock

32

NO DESCRIPTION AVAILABLE This part replaces 07110-06358.

07130-06357

2
Out of stock

33

BEARING, RH

09262-32005

1
Out of stock

34

RETAINER

12746-05A00

1
Out of stock

35

SCREW This part replaces 02122-06168.

02122-06167

2
Out of stock

36

BEARING, LH

09264-20004

1
Out of stock
