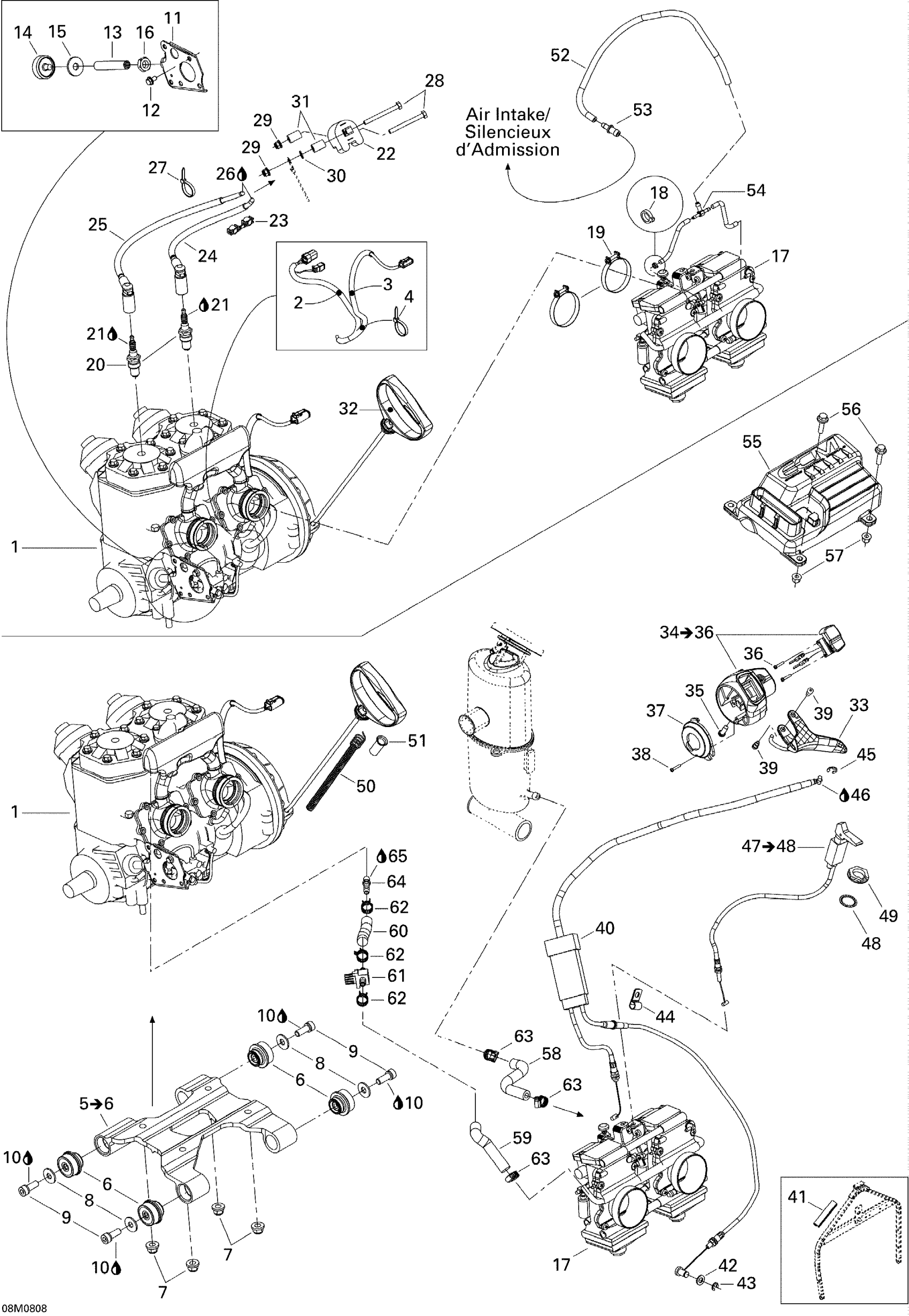

Ski-Doo GTX SPORT 500SS, 2008 Engine Diagram

#

Description
Price

1

Engine 593

400509779

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

Unavailable

3

Tubing 10 MM 1000MM Long

219704407

Unavailable

4

Tie Wrap 142 mm

293750002

Unavailable

5

ENGINE SUPPORT ASS'Y - Call your local BRP dealership | Includes 5 to 6

512060047

Unavailable

6

Rubber Mount

512059691

$44.58

7

Hex. Flange Elastic Nut M10

233201414

$1.26

8

Flat Washer M10 | 4X4

250200014

$1.17

9

TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership

235202544

Unavailable

10

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

11

PLATE - Call your local BRP dealership

512059840

Unavailable

12

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

13

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

14

STOPPER - Call your local BRP dealership

512059610

Unavailable

15

WASHER - Call your local BRP dealership

512059057

Unavailable

16

Hex. Jam Nut M14

232170411

Unavailable

17

Carburetor Kit TM40-B352Z1

403138788

Unavailable

18

Tie Wrap 94 mm | 4X4

293750001

$0.83

19

Gemi Clamp

512059835

Unavailable

20

Spark Plug NGK BR10ECS

512060354

$9.70

21

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

22

Ignition Coil

512059968

Unavailable

23

Plastic Clip, Spark Plug Wire

410914600

Unavailable

24

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

Unavailable

25

Cable Ass’y, 375 mm

512059696

Unavailable

26

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

27

Tie-Rap 180 mm

414115200

$0.09

28

Hex. Screw M6 X 60

207066044

$0.56

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

30

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

31

Spacer

517203200

Unavailable

32

Starter Grip

572084400

Unavailable

33

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

34

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

35

Socket Head Screw M6 X 16

250000036

Unavailable

36

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

37

COVER - Call your local BRP dealership

512059698

Unavailable

38

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

39

Flange Screw

732601143

$4.02

40

THROTTLE CABLE - Call your local BRP dealership

512060084

Unavailable

41

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

42

Flat Washer 8 mm, Nylon

234081100

$1.00

43

Circlip

414753500

$0.59

44

TIE CLAMP - Call your local BRP dealership

293750042

Unavailable

45

Circlip

414274500

Unavailable

46

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

47

CHOKE CABLE - Call your local BRP dealership | Includes 47 to 48

512059266

Unavailable

48

Lock Washer, Interior Teeth

394103300

Unavailable

49

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

50

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

51

TUBE - Call your local BRP dealership

512059536

Unavailable

52

Polyurethane Hose 10000Mm Long

219704410

Unavailable

53

Straight Fitting

293710035

$8.63

54

T-Fitting

572045500

Unavailable

55

CALIBRATED MODULE - Call your local BRP dealership

512060383

$547.99

56

Hex.Flange Screw M5 X 20

207652044

$1.56

57

Hex. Flange Elastic Nut M5

233251414

Unavailable

58

FORMED HOSE - Call your local BRP dealership

509000171

Unavailable

59

Was 509000407 Hose 8 mm

219704420

Unavailable

60

Was 509000407 Hose 8 mm

219704420

Unavailable

61

Valve 5/16” | Grand Touring 500.

512059324

Unavailable

62

Spring Clamp

414655700

Unavailable

63

Tridon Gear Clamp

293650170

$1.74

64

Male Connector 1/8"-27 NPT

512060196

Unavailable

65

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable
