Description

Price

1

Speedometer | Includes 10 to 10c

515177910

$679.99

2

Speedometer Button | XTP

415129355

$16.49

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$25.99

5

BRP Logo 20MM x 2MM | XTP

516006224

$14.49

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$154.99

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$154.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$24.49

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

$13.49

10

Rubber Cap Protector

219800280

$19.49

11

Torx Screw M6 X 20

250000722

$1.69

12

Panel Nut M6 X 1.0

250100198

$2.19

13

DESS Switch

515177249

$114.99

14

Male Terminal

515175232

$1.59

15

Male Housing, 3 Circuits

515175494

$16.49

16

Tubing 12 mm

409902000

Unavailable

17

Safety Nut (DESS Switch)

278002963

$3.39

18

DESS

515178284

$84.99

21

Voltage Regulator | Package-DPS, Model-Europe

710005569

$109.99

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

23

Main Harness | Includes 1 to 982

515176751

Unavailable

24

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

25

Clip

270000141

$11.99

26

Pop Rivet 3/16"

390402200

$1.49

27

Flat Washer M5

234051410

$1.49

28

PLATE - Call your local BRP dealership

515177044

Unavailable

29

Fuse Support - Call Your Local BRP Dealership

515177549

Unavailable

30

PROTECTOR - Call your local BRP dealership

515176637

Unavailable

31

Pop Rivet 3/16"

390402200

$1.49

32

Flat Washer M5

234051410

$1.49

33

Switch Ass'y

515176472

$74.99

34

Brass Nut

250000373

$7.69

35

Hex. Flange Screw M6 X 20

210262040

$2.19

36

Hex. Flange Screw M6 X 20

210262040

$2.19

37

Flat Washer

224061121

$1.49

38

Ground Wire

515176358

$28.99

39

Tie Rap Mount (screwable)

515176795

$5.49

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Tie Wrap 94 mm | 4X4

293750001

$1.49

41

Tie Wrap 142 mm

293750002

$1.49

41

Tie-Rap 180 mm

414115200

$1.49

41

Tie Wrap 368 mm

293750008

$1.49

42

Visor Harness

515177837

$34.99

43

Male Terminal

515175232

$1.59

44

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

45

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$21.99

46

Male Terminal Housing, 2 Circuits

515175654

$9.29

47

Cap

572103300

$10.99

48

Extension

515175851

$11.49

49

Outlet Power Kit, 12 Volts

861507200

$37.99

58

Motor Ass'y

515176480

Unavailable

59

Not Available As Spare Part - Friction Washer

Unavailable

60

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

61

PLATE - Call your local BRP dealership

515176821

Unavailable

62

Hex. Flange Screw M6 X 20

207662044

$2.09

63

Flat Washer

224061121

$1.49

64

REVERSE CABLE - Call your local BRP dealership | Includes 3130A to 3130K

515176760

Unavailable

65

Male Terminal

515175232

$1.59

66

Female Terminal

515175282

$7.99

67

Relay | DS 650 X

710010053

$24.49

68

Female Housing, 5 Circuits

409209900

$9.79

69

Female Terminal

561503100

$2.49

70

Tubing 10 MM 1000MM Long

219704407

$2.89

71

Male Terminal Housing, 4 Circuits

515175846

$8.99

72

Female Terminal Housing

515176550

$7.99

73

Rocker Switch

510004413

$8.99

74

Switch Protector

510004414

$7.99

75

SEAT HARNESS - Call your local BRP dealership

515177189

Unavailable

76

Female Terminal

409010100

$5.69

77

Female Terminal Housing, 1 Circuit

409010400

$7.79

78

Male Terminal

515175232

$1.59

79

Female Terminal

515175231

$4.49

80

Tubing 6 Mm 3000Mm Long

219704425

$13.99

81

Was 409901700 Tubing (9 mm)

219704399

$86.99

82

Diode

409012700

$11.49

83

Male Terminal Housing, 2 Circuits

515175654

$9.29

84

Female Housing, 2 Circuits

515175658

$16.49

85

Not Available As Spare Part - Friction Washer

Unavailable

86

Compressor Module

515176678

Unavailable

87

Hex. Flange Screw M6 X 35

207663544

$1.49

88

Flat Washer 6 mm

234061410

$1.49

89

Hex. Nut M6

232061414

$1.49

90

Tubing 6 Mm 3000Mm Long

219704425

$13.99

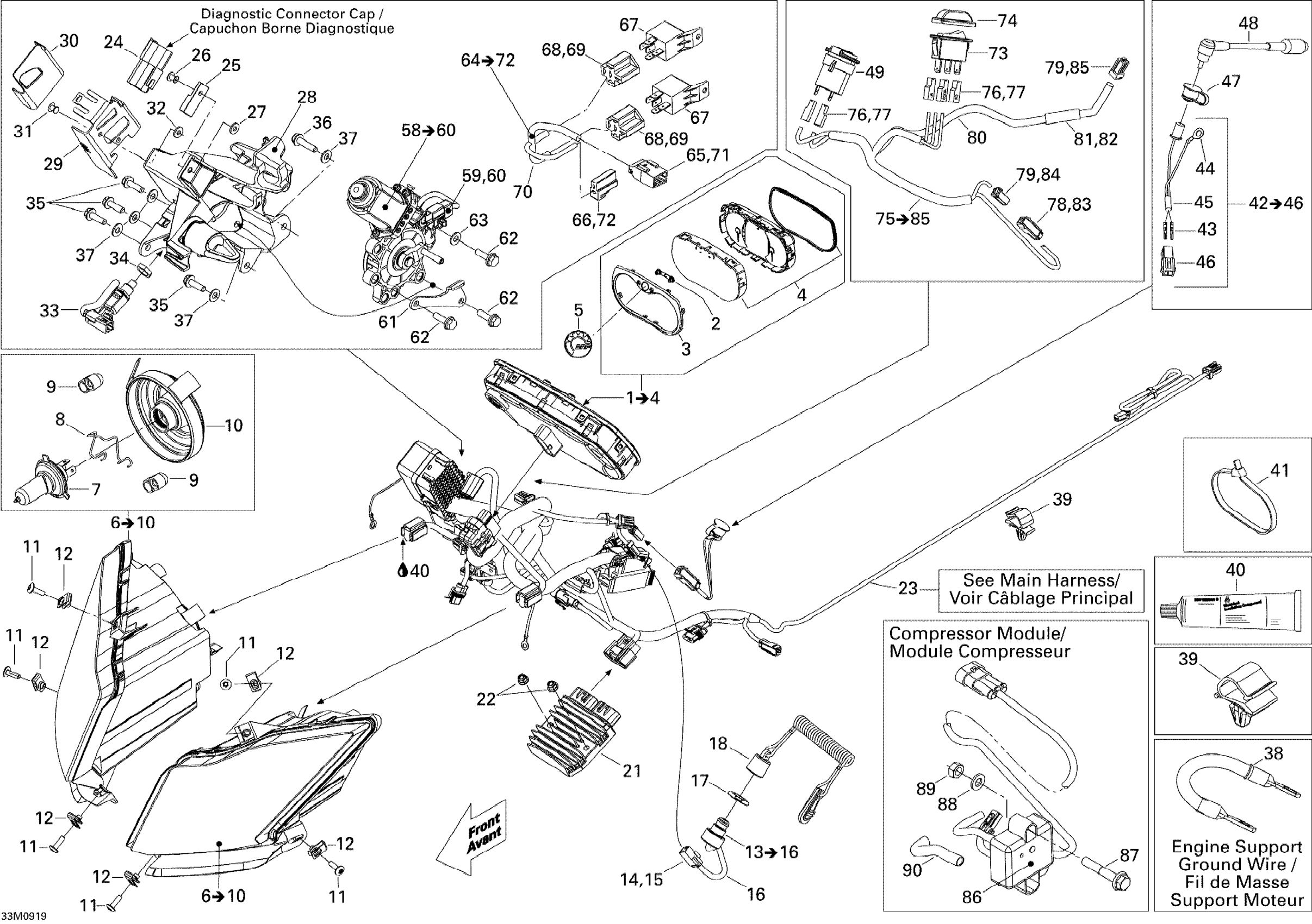

Ski-Doo GTX SE 1200 4-TEC, 2009 Electrical System Diagram

Speedometer | Includes 10 to 10c

Speedometer Button | XTP

Gauge Ring

Lens | XTP

BRP Logo 20MM x 2MM | XTP

RH Headlamp Ass'y | Includes 2400 to 2400c

LH Headlamp Ass'y | Includes 2600 to 2600c

Halogen Bulb, 60/55 W, 12 V ( H4 )

Not Available As Spare Part - Friction Washer

Cap

Rubber Cap Protector

Torx Screw M6 X 20

Panel Nut M6 X 1.0

DESS Switch

Male Terminal

Male Housing, 3 Circuits

Tubing 12 mm

Safety Nut (DESS Switch)

DESS

Voltage Regulator | Package-DPS, Model-Europe

Hex. Flange Elastic Nut M6 x 1.0

Main Harness | Includes 1 to 982

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

Clip

Pop Rivet 3/16"

Flat Washer M5

PLATE - Call your local BRP dealership

Fuse Support - Call Your Local BRP Dealership

PROTECTOR - Call your local BRP dealership

Pop Rivet 3/16"

Flat Washer M5

Switch Ass'y

Brass Nut

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 20

Flat Washer

Ground Wire

Tie Rap Mount (screwable)

Was 293550004 Dielectric Grease, 150 g

Tie Wrap 94 mm | 4X4

Tie Wrap 142 mm

Tie-Rap 180 mm

Tie Wrap 368 mm

Visor Harness

Male Terminal

OPEN BARREL - Call your local BRP dealership

Vinyl Tubing, Low Temp 3000Mm Long

Male Terminal Housing, 2 Circuits

Cap

Extension

Outlet Power Kit, 12 Volts

Motor Ass'y

Not Available As Spare Part - Friction Washer

MALE TERMINAL - Call your local BRP dealership

PLATE - Call your local BRP dealership

Hex. Flange Screw M6 X 20

Flat Washer

REVERSE CABLE - Call your local BRP dealership | Includes 3130A to 3130K

Male Terminal

Female Terminal

Relay | DS 650 X

Female Housing, 5 Circuits

Female Terminal

Tubing 10 MM 1000MM Long

Male Terminal Housing, 4 Circuits

Female Terminal Housing

Rocker Switch

Switch Protector

SEAT HARNESS - Call your local BRP dealership

Female Terminal

Female Terminal Housing, 1 Circuit

Male Terminal

Female Terminal

Tubing 6 Mm 3000Mm Long

Was 409901700 Tubing (9 mm)

Diode

Male Terminal Housing, 2 Circuits

Female Housing, 2 Circuits

Not Available As Spare Part - Friction Washer
