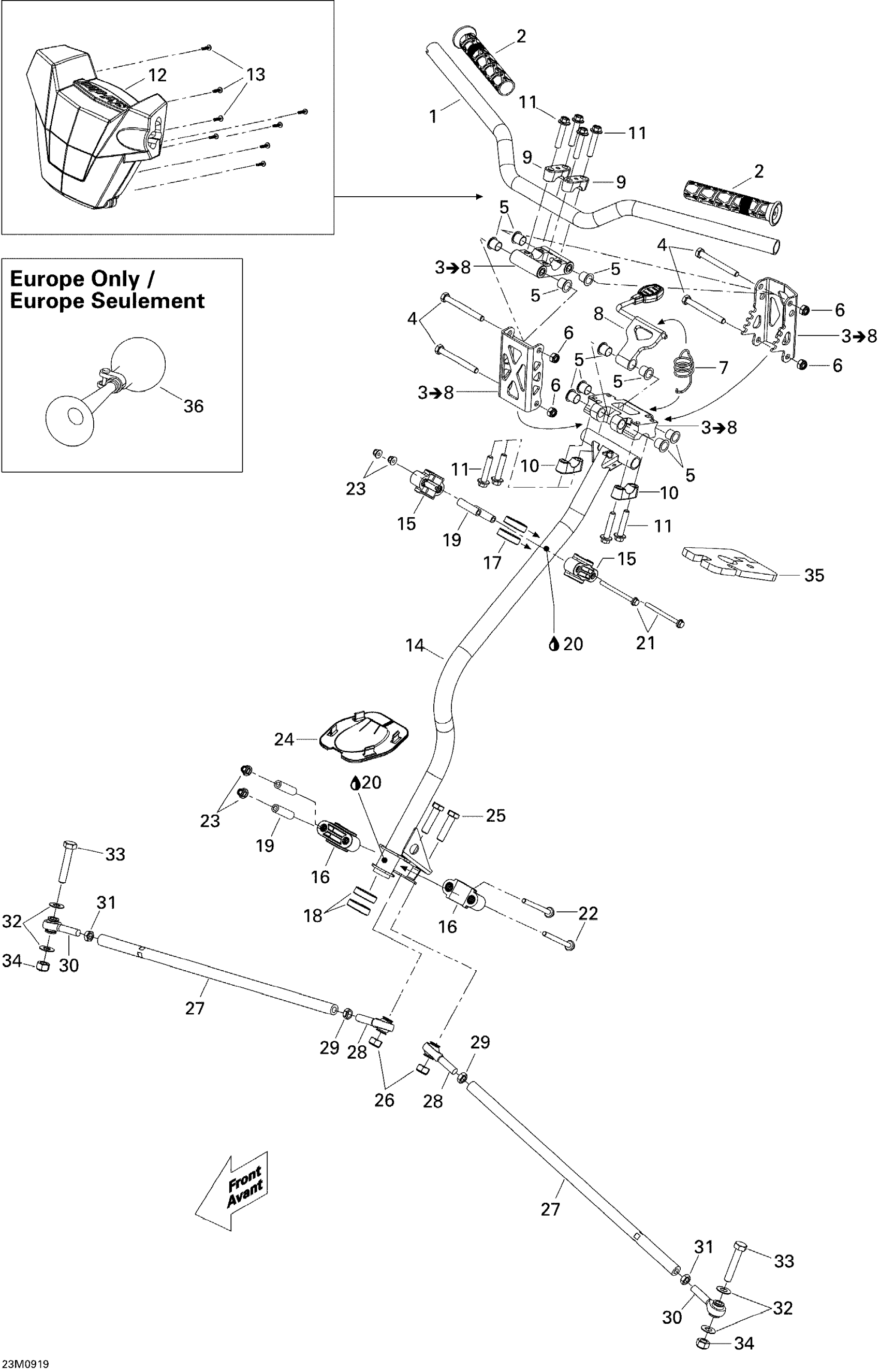

Ski-Doo GTX SE 1200 4-TEC, 2009 Steering Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152304

Unavailable

2

Handle Grip

506152424

$13.78

3

ADJUSTABLE HANDLEBAR - Call your local BRP dealership

506152197

Unavailable

4

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

5

Cushion

506152520

$12.37

6

Hex. Flange Elastic Nut M8

233281414

$1.14

7

Spring | Package SE

506152184

$8.74

8

HANDLE ASM - Call your local BRP dealership

506152411

Unavailable

9

Steering Support | Includes 40 to 40a

506152751

$10.09

10

Steering Support | Includes 40 to 40a

506152751

$10.09

11

Hex. Flange Screw M8 x 40

250000285

$0.77

12

Steering Pad (Adjustable)

506152330

$96.12

13

Truss Head Torx Screw K50 X 20

250000297

$2.06

14

Steering Column

506152964

$189.20

15

Upper Half Housing

506152219

$1.68

16

Lower Half-Housing

506152217

$5.57

17

Upper Vibration Ring

506152292

$0.72

18

Lower Vibration Ring

506152518

$4.52

19

Housing Bushing

506152297

$10.23

20

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

21

Hex. Flange Screw M6 X 70

207667056

$3.61

22

Hex. Flange Screw M6 X 70

207667044

$0.70

23

Elastic Flange Nut M6 X 1.0

233261416

$1.74

24

Plate

506152163

$10.23

25

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

26

Elastic Stop Nut M10

232500416

$1.56

27

Tie-Rod Ass'y

506152496

$59.97

28

LH Thread Ball Joint

506152081

$39.97

29

LH Threaded Hex. Jam Nut M10

250100016

$0.72

30

RH Threaded Ball Joint

506152019

$39.97

31

RH Threaded Hex. Jam Nut M10

732610010

$0.72

32

Washer

506152194

$4.42

33

Hex. Screw M10 X 55

207005544

$1.85

34

Elastic Stop Nut M10

232500416

$1.56

35

Bushing

506152521

$13.60

36

Horn

549011291

$35.35
