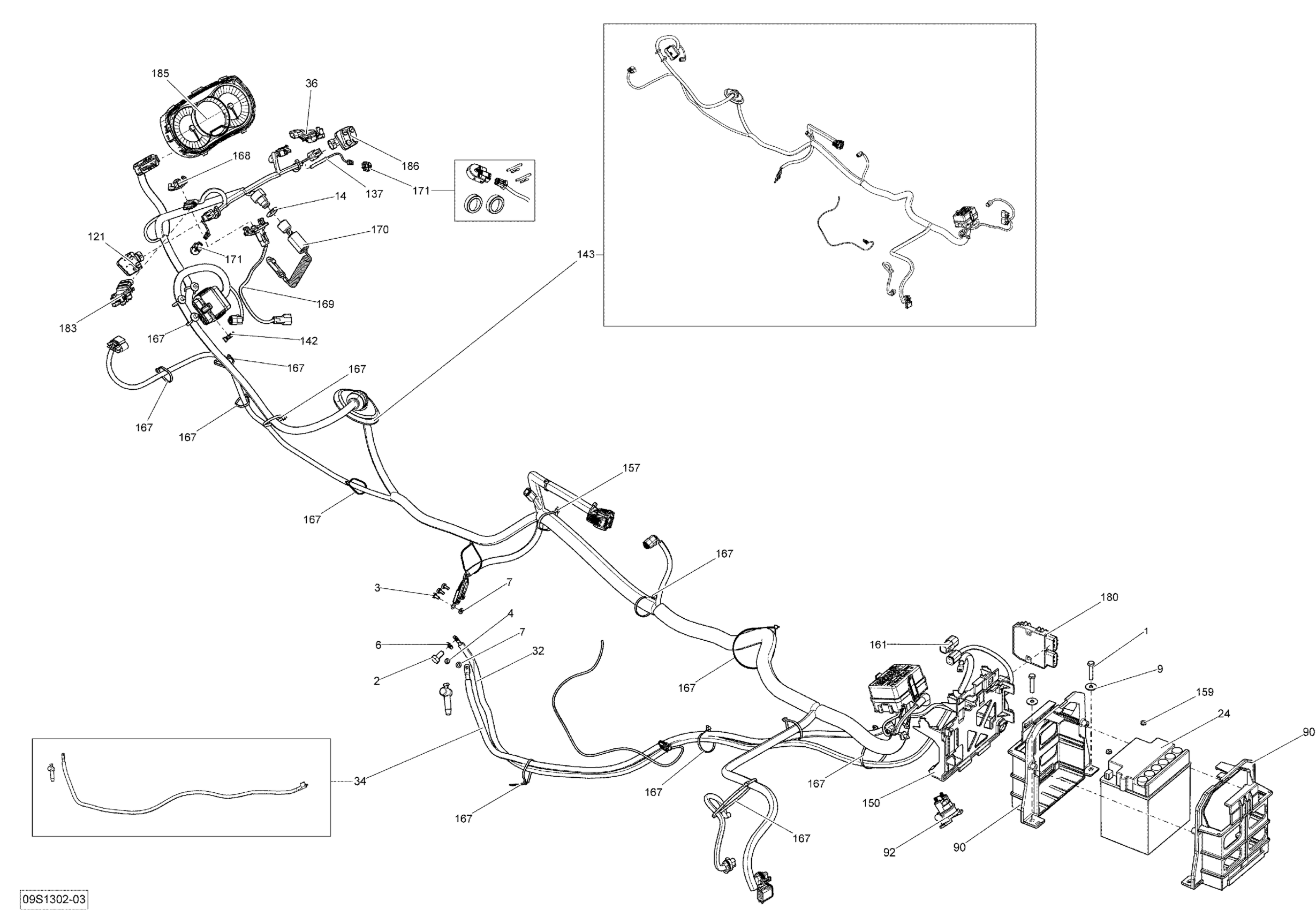

Sea-doo GTX S 155, 2013 Electrical System Diagram

#

Description
Price

1

Hex. Screw M8 X 40

207184060

Unavailable

2

Hex. Screw M10 X 20, Scotch Grip

207302060

Unavailable

3

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

4

Elastic Stop Nut M6, Brass

232561200

Unavailable

6

Flat Washer 10 mm, Stainless

234000600

Unavailable

7

Stainless Flat Washer M6

234061600

$0.25

9

Flat Washer 8 mm, Stainless

234082600

Unavailable

14

Safety Nut (DESS Switch)

278002963

$2.72

24

Battery, 30 Amperes

278001882

Unavailable

32

Battery Ground Cable

278003269

Unavailable

34

Cable-Starter

278003398

Unavailable

36

Throttle Position Sensor

278002283

Unavailable

90

Battery Support

278003306

Unavailable

92

Starter Relay

278003012

Unavailable

121

Switch LH Sport/Eco

278002768

Unavailable

137

Wiring Harness Ass'y

278002950

Unavailable

142

Clip (double dart)

278002910

Unavailable

143

Main Wiring Harness | Includes 101 To 2057

278002940

Unavailable

150

Support

278003048

Unavailable

157

Tie Wrap 368 mm

293750008

$0.85

159

Battery Bolt Kit

250000282

$2.95

161

Diagnostic Connector

278002704

Unavailable

167

Tie-Rap 180 mm

414115200

$0.09

168

O.T.A.S Actuator

278003537

Unavailable

169

O.T.A.S. Sensor Ass'y

278003009

Unavailable

170

Safety Lanyard, Learning Key

278002484

Unavailable

171

Start/Stop Switch Kit

295501137

Unavailable

180

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

183

LH Throttle Sensor

278002284

Unavailable

185

Cluster LCD This part replaces 278002718.

278003005

Unavailable

186

Switch RH Mode/Set

278002602

Unavailable
