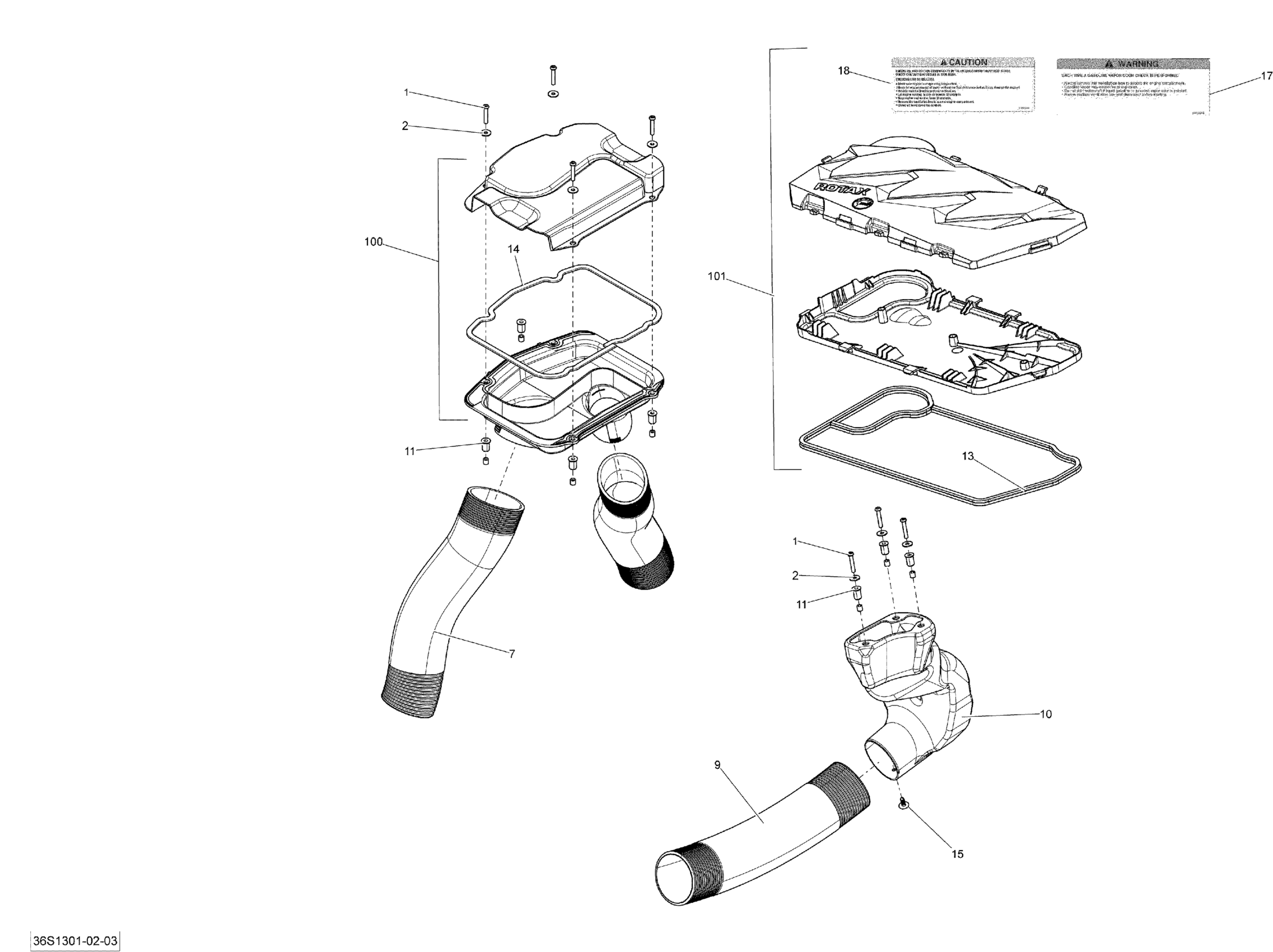

Sea-doo GTX S 155, 2013 Ventilation Diagram

#

Description
Price

1

Socket Head Screw M6 X 35

205463560

Unavailable

2

Flat Washer M6, Stainless

234062600

Unavailable

7

VENT HOSE 3.5 - Call your local BRP dealership

237000030

Unavailable

9

Vent Hose 3.5"

237000031

Unavailable

10

REAR VENT DUCT - Call your local BRP dealership

237000057

Unavailable

11

Expansion Nut M6 X 1

250100150

Unavailable

13

LIP SEAL 2000MM LONG - Call your local BRP dealership

219704376

Unavailable

14

Was 293250099 Gasket

219704377

Unavailable

15

Black, Dart

293730011

Unavailable

17

WARNING DECAL, GASOLINE VAPOR - Call your local BRP dealership

219903090

Unavailable

18

CAUTION DECAL, ENGINE OIL - Call your local BRP dealership

219903084

Unavailable

100

FRONT VENTILATION BOX ASS'Y - Call your local BRP dealership | Includes 10 to 10a

237000063

Unavailable

101

Vent Adaptor | Includes 2105 to 2105e

295501145

Unavailable
