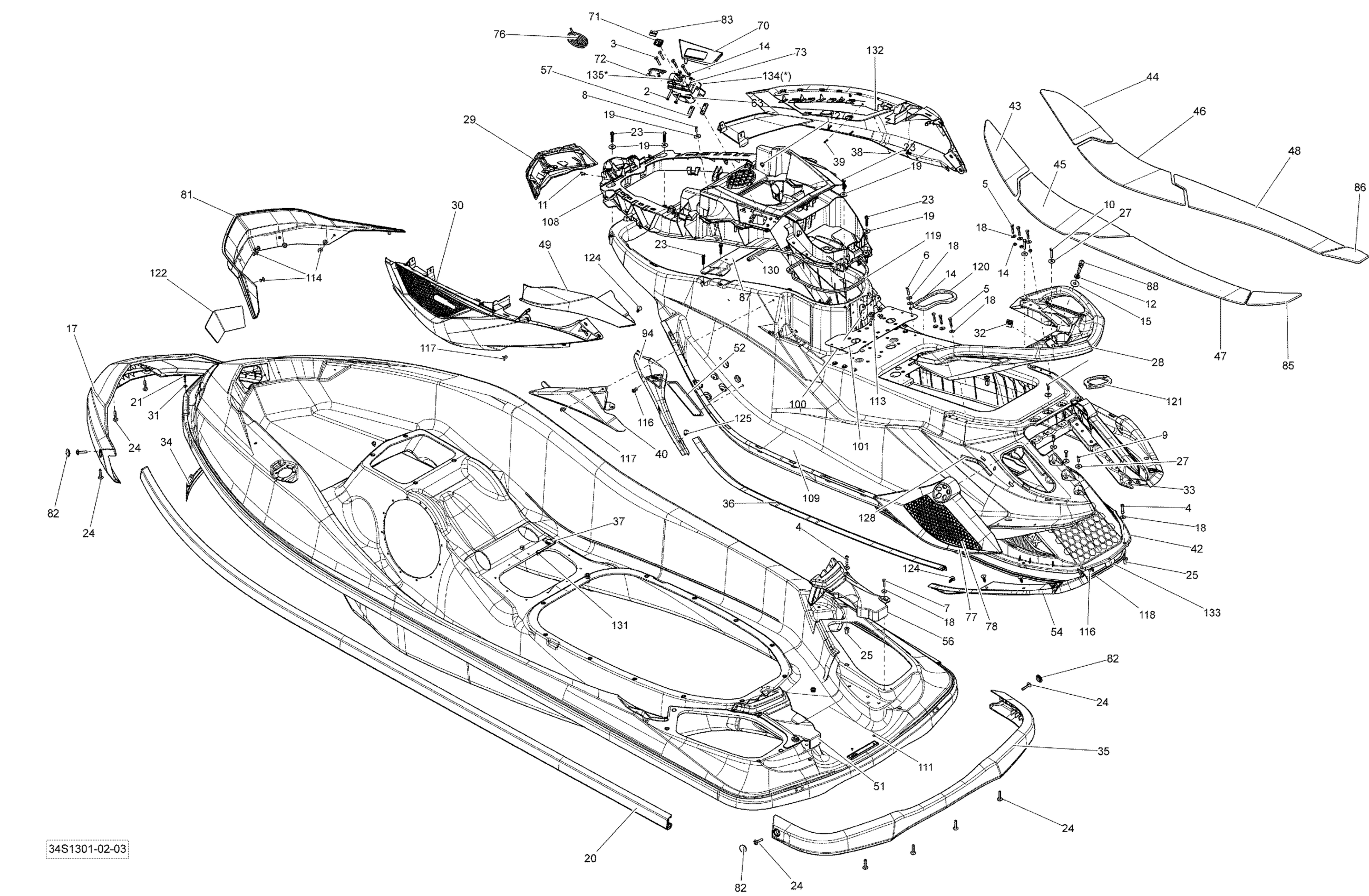

Sea-doo GTX S 155, 2013 Body Diagram
#
2
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
3
SOCKET SCREW HEAD M6 X 45 - Call your local BRP dealership
205364560
Unavailable
4
Socket Head Screw M6 X 35
205463560
Unavailable
5
Hex. Screw M6 X 30
207063060
Unavailable
6
Hex. Screw M6 X 25
207162560
Unavailable
8
Hex. Screw M6 X 16, Scotch Grip
207361660
Unavailable
9
Hex. Screw M6 X 20, Scotch Grip
207362060
Unavailable
10
Screw Hex. M6 X 35, Scotch Grip
207363560
Unavailable
11
HEX. FORMING SCREW M6 X 16 - Call your local BRP dealership
211000106
Unavailable
12
Hex. Jam Nut M10
232100600
Unavailable
14
Elastic Stop Nut M6, Brass
232561200
Unavailable
15
Flat Washer 10 mm, Stainless
234002600
Unavailable
17
Front Bumper
291004275
Unavailable
18
Flat Washer M6, Stainless
234062600
Unavailable
19
Flat Washer 8 mm, Stainless
234082600
Unavailable
20
Lateral Bumper
291003872
Unavailable
21
Hex. Flange Screw K40 X 25
241142560
Unavailable
22
Oval Philipp Screw KA30 x 12
241731260
Unavailable
23
Plastite Hex. Screw M6.8 X 35
243163560
Unavailable
24
Hexagonal Cap Screw M6 X35
250000399
Unavailable
25
Expansion Nut M6 X 1
250100150
Unavailable
27
Flat Washer M6.6 X 22
250200022
Unavailable
28
Black, Rear Handle
291004621
Unavailable
29
FRONT GRID - Call your local BRP dealership
269501797
Unavailable
30
LH Front Moulding Ass'y | GTX S
291003505
Unavailable
31
Flat Washer 4 mm, Stainless
234042600
Unavailable
32
Elastic Nut M10 Housing
271001732
Unavailable
33
REAR PIVOT ASS'Y - Call your local BRP dealership
279000214
Unavailable
34
DECK NOSE - Call your local BRP dealership
291002818
Unavailable
35
Rear Bumper
291004274
Unavailable
36
MID JOINT - Call your local BRP dealership
291003818
Unavailable
37
CAP - Call your local BRP dealership
293000118
Unavailable
38
Push Nut | Not shown
211100002
Unavailable
39
Hex. Flange Screw K40 X 16
241141660
Unavailable
40
Not Available As Spare Parts
XXX
Unavailable
41
Not Available As Spare Parts
XXX
Unavailable
43
ANTI SLIP MAT FL - Call your local BRP dealership
291002607
Unavailable
44
RH Front Carpet
291002608
Unavailable
45
LH CENTER FRONT CARPET - Call your local BRP dealership
291003463
Unavailable
46
RH CENTER FRONT CARPET - Call your local BRP dealership
291003464
Unavailable
47
LH CENTER REAR CARPET - Call your local BRP dealership
291003465
Unavailable
48
RH CENTER REAR CARPET - Call your local BRP dealership
291003466
Unavailable
49
LH UPPER BODY CAP COVER - Call your local BRP dealership
291003515
Unavailable
49
RH UPPER BODY CAP COVER - Call your local BRP dealership
291003516
Unavailable
51
LH Rear Grille
291002658
Unavailable
52
LH FOOTREST COVER - Call your local BRP dealership
291002694
Unavailable
52
RH FOOTREST COVER - Call your local BRP dealership
291002695
Unavailable
54
LH REAR SCRAPER JOINT - Call your local BRP dealership
291002696
Unavailable
54
RH REAR SCRAPER JOINT - Call your local BRP dealership
291002697
Unavailable
56
RH REAR GRILL - Call your local BRP dealership
291002698
Unavailable
57
DOUBLE CAGE NUT ASS'Y - Call your local BRP dealership
291002755
Unavailable
70
FRONT REWINDER CAP - Call your local BRP dealership
291002756
Unavailable
71
BUTTON - Call your local BRP dealership
291002726
Unavailable
72
UNDER CAM - Call your local BRP dealership
291002727
Unavailable
73
ROPE GUIDE - Call your local BRP dealership
291002729
Unavailable
76
ROPE 3/16 3000MM LONG - Call your local BRP dealership
219704363
Unavailable
77
LH LATERAL REAR TRIM - Call your local BRP dealership
291002739
Unavailable
77
RH Lateral Rear Trim
291002741
Unavailable
78
LH Rear Side Grille
291002740
Unavailable
78
RH Rear Side Grille
291002742
Unavailable
81
Deflector
291004280
Unavailable
82
Bumber Cap | Except Cab Package
291002744
Unavailable
83
Button Cap
291002754
Unavailable
84
INSIDE COVER - Call your local BRP dealership
291002762
Unavailable
85
ANTI SLIP MAT REAR L - Call your local BRP dealership
291002775
Unavailable
86
ANTI SLIP MAT REAR R - Call your local BRP dealership
291002776
Unavailable
87
Module Stifner
291002778
Unavailable
88
Seat Stud
291003878
Unavailable
94
LH Front Scraper Joint
291002837
Unavailable
94
RH FRONT SCRAPER JOINT - Call your local BRP dealership
291002838
Unavailable
100
SEAT PIVOT - Call your local BRP dealership
291002865
Unavailable
101
UPPER REINFORCEMENT - Call your local BRP dealership
291003416
Unavailable
106
LOWER CENTRAL REINFORCEMENT - Call your local BRP dealership
291003306
Unavailable
108
Front Module
291004595
Unavailable
109
Upper Body Ass'y
291003462
Unavailable
111
Black, Snap Cap
293000014
Unavailable
113
Pop Rivet 3/16
293150186
Unavailable
114
Pop Rivet 3/16"
293150123
Unavailable
118
Lip Seal
293250185
Unavailable
119
NEOPRENE SEAL - Call your local BRP dealership
293250200
Unavailable
120
LIP SEAL - Call your local BRP dealership
293250205
Unavailable
121
LIP SEAL - Call your local BRP dealership
293250209
Unavailable
122
GASKET - Call your local BRP dealership
293250231
Unavailable
124
Black, Dart
293730006
Unavailable
125
Black Dart
293730010
Unavailable
128
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
130
Was 271000110 Protection Trim
219704353
Unavailable
132
RH FRONT MOULDING ASS'Y - Call your local BRP dealership | GTX S
291003502
Unavailable
133
DECK EXTENSION ASS'Y - Call your local BRP dealership
291002763
Unavailable
134
Retractable Rope Ass'y | Includes 2300 to 2300e
291004019
Unavailable
135
JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership | Includes 2300a to 2300a2
291003023
Unavailable
