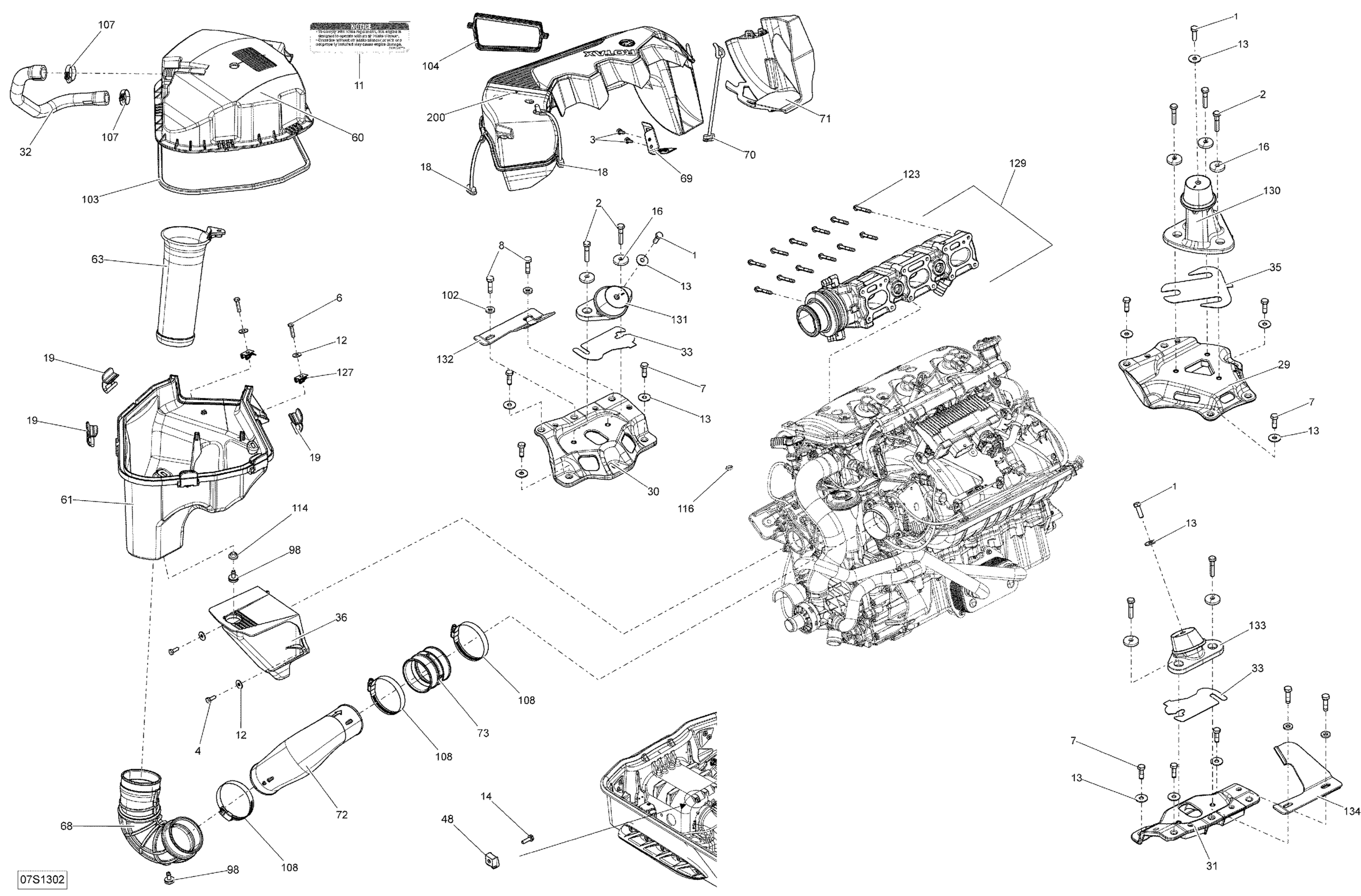

Sea-doo GTX S 155, 2013 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Hex. Screw M8 X 25, Scotch Grip

207382560

Unavailable

2

Hex. Screw M8 X 40, Scotch Grip

207284060

Unavailable

3

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

4

Hex. Screw M6 X 16, Scotch Grip

207361660

Unavailable

6

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

Unavailable

7

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

Unavailable

8

Hex. Screw M8 X 30, Scotch Grip

250000526

Unavailable

11

Air Silencer Notice Decal

219903177

Unavailable

12

Flat Washer M6, Stainless

234062600

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

Unavailable

14

Hex. Flange Screw M6.81 x 20

243162060

Unavailable

16

Cone Washer

250200018

Unavailable

18

Strap

269501299

Unavailable

19

Clip

269501718

Unavailable

29

SPACER - Call your local BRP dealership

270000767

Unavailable

30

SPACER - Call your local BRP dealership

270000763

Unavailable

31

Spacer

270000766

$78.43

32

Formed Hose

270000807

$53.05

33

Shim 1.3 mm

270000762

Unavailable

35

Shim 1.3 mm

270000770

Unavailable

36

AIR BOX SUPPORT - Call your local BRP dealership

270000791

Unavailable

48

Strap Anchor

270000854

Unavailable

60

Air Silencer Upper

273000249

Unavailable

61

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

63

Intake Hose

273000359

Unavailable

68

CONNECTOR HOSE - Call your local BRP dealership

273000257

Unavailable

69

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

70

Strap

273000261

Unavailable

71

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

72

HOSE INTAKE - Call your local BRP dealership This part replaces 273000276.

273000327

Unavailable

73

Intake Fitting

273000277

Unavailable

98

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

102

Flat Washer M8.5 x 18

293050001

Unavailable

103

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

104

SEAL - Call your local BRP dealership

293250190

Unavailable

107

Tridon Gear Clamp

293650051

Unavailable

108

Tridon Clamp

293650179

Unavailable

114

GROMMET - Call your local BRP dealership

293720064

Unavailable

116

Tie Wrap 142 mm

293750002

Unavailable

123

Torx Flange Screw M6 X 45

420641198

Unavailable

127

Panel Nut M6 X 1

420942108

$11.48

129

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

Unavailable

130

Rubber Mount

270000886

Unavailable

131

Engine Support Ass'y

270001081

Unavailable

132

LH STOPPER - Call your local BRP dealership

270000796

$28.43

133

Engine Support Ass'y

270001081

Unavailable

134

RH Stopper

270000799

Unavailable

200

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable
