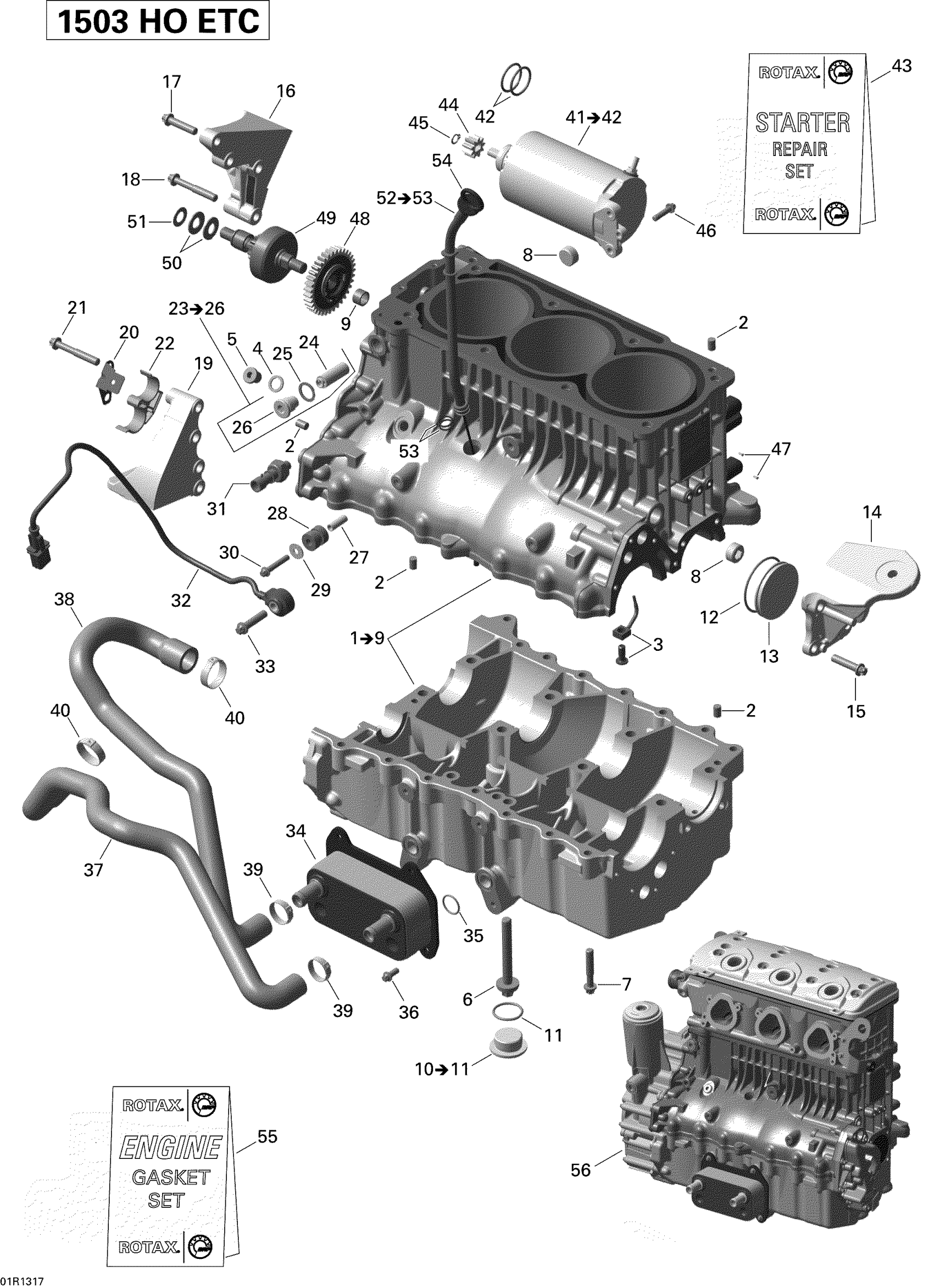

Sea-doo GTX LTD iS 260, 2013 Engine Block 1 Diagram

#

Description
Price

1

Cylinder Block With Sleeves | Includes 1 to 9 This part replaces 420892461.

420893511

Unavailable

2

Center Pin 8 X 12

420632010

Unavailable

3

Oil Spray Nozzle This part replaces 420956778.

420956827

Unavailable

4

Aluminum Sealing Ring

420250016

Unavailable

5

Plug Screw M12

420841923

Unavailable

6

Torx Flange Screw M10 X 82

420641120

Unavailable

7

Hex. Flange Screw M8 X 45

420641208

Unavailable

8

Plug Screw M20 X 1.5

420641317

$10.58

9

Needle Bushing

420232482

Unavailable

10

Plug Screw M30 X 1.5

420641171

Unavailable

11

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

Unavailable

12

O-Ring

420430405

Unavailable

13

Plug Cover

420660110

Unavailable

14

FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.

420811792

Unavailable

15

Torx Flange Screw M8 X 35

420641188

$6.11

16

Engine Bracket PTO, Exhaust

420811788

Unavailable

17

Torx Flange Screw M8 X 35

420641188

$6.11

18

Torx Flange Screw M8 X 55

420641213

$6.11

19

Engine Bracket PTO, Exhaust

420811784

Unavailable

20

Retaining Plate

420851740

Unavailable

21

Torx Flange Screw M8 X 55

420641213

$6.11

22

Hose Bracket

420660290

Unavailable

23

Chain Tensioner With Screw | Includes no. 8-11

420236259

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Gasket Ring

420430624

$1.51

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Spacer

420847971

Unavailable

28

Rubber Bracket

420660090

Unavailable

29

Flat Washer M6

420827968

Unavailable

30

Torx Flange Screw M6 X 35

420641258

$2.78

31

Oil Pressure Switch

420856533

Unavailable

32

Noise Sensor

420664031

$50.67

33

Torx Flange Screw M8 X 35

420641188

$6.11

34

Oil Radiator

420888877

Unavailable

35

O-Ring

420250057

Unavailable

36

Torx Flange Screw M6 X 16

420641048

Unavailable

37

Formed Hose

420922834

Unavailable

38

Formed Hose

420922832

Unavailable

39

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

40

Gear Clamp

420851673

$4.71

41

Electric Starter Ass'y | Includes no. 20-21

420888995

Unavailable

42

O-Ring

420631310

Unavailable

43

Carbon Brush Set

420881340

Unavailable

44

Starter Gear, 9 Teeth

420834522

Unavailable

45

Retaining Ring

420845601

Unavailable

46

Torx Flange Screw M6 X 25

420641238

Unavailable

47

Grooved Pin

420249073

Unavailable

48

Bendix Starter This part replaces 420889872.

420890637

Unavailable

49

Bendix Starter This part replaces 420889872.

420890637

Unavailable

50

Spring Washer

420238300

Unavailable

51

Thrust Washer

420827261

Unavailable

52

Oil Level Tube

420956944

Unavailable

53

O-Ring

420950810

Unavailable

54

Oil Level Gauge

420956933

Unavailable

55

Engine Gasket Set

420889773

Unavailable

56

Engine Long Block This part replaces 420150338.

420150394

Unavailable

56

Engine Long Block This part replaces 420150338.

420150394

Unavailable

56

Engine Long Block This part replaces 420150338.

420150394

Unavailable
