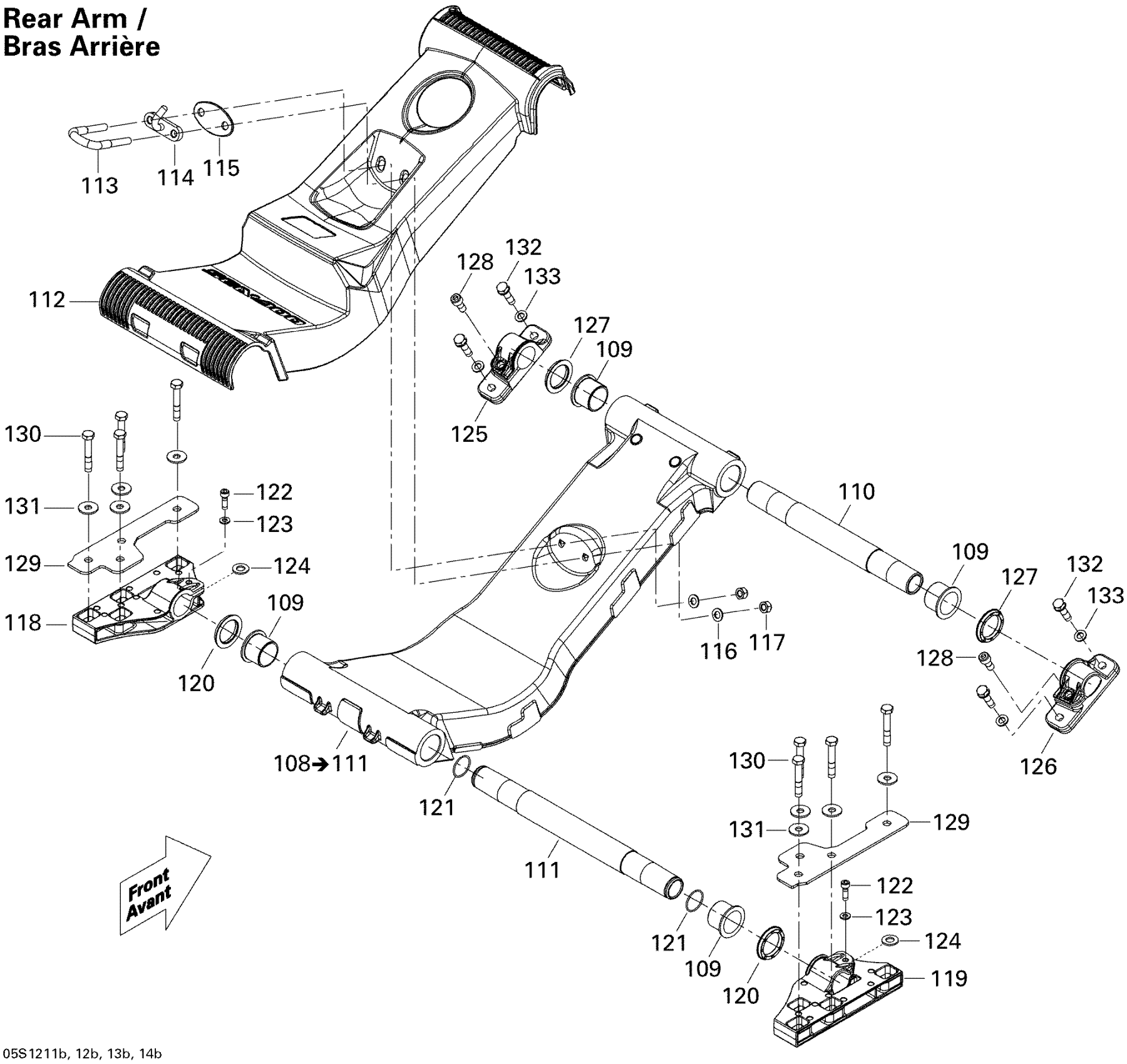

Sea-doo GTX LTD iS 260, 2012 Seat Suspension 2 Diagram

#

Description
Price

108

REAR ARM ASS'Y - Call your local BRP dealership | Includes 1001 to 1001c

279000001

Unavailable

109

Bushing

279000019

$19.47

110

PIVOT TUBE - Call your local BRP dealership

279000031

Unavailable

111

PIVOT TUBE - Call your local BRP dealership

279000033

Unavailable

112

REAR ARM MOULDING - Call your local BRP dealership

279000080

Unavailable

113

U-Clamp

292000933

$32.47

114

Hook | Package LTD

291002351

$67.13

115

Black, Finition Plate

291001386

$8.57

116

Stainless, Flat Washer 8 mm

234081600

$0.46

117

Hex. Elastic Nut M8 Brass

232581200

$1.29

118

LH REAR BASE - Call your local BRP dealership

279000083

Unavailable

119

RH REAR BASE - Call your local BRP dealership

279000087

Unavailable

120

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

121

RETAINING RING - Call your local BRP dealership

279000100

Unavailable

122

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

123

Flat Washer 10 mm, Stainless

234001600

$0.91

124

Stainless Flat Washer M6

234061600

$0.25

125

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

126

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

127

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

128

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.15

129

RETAINING PLATE - Call your local BRP dealership

279000114

$13.42

130

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.70

131

Flat Washer 8 mm, Stainless

234082600

$1.98

132

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

133

Flat Washer M8, Stainless

234080600

$1.25
