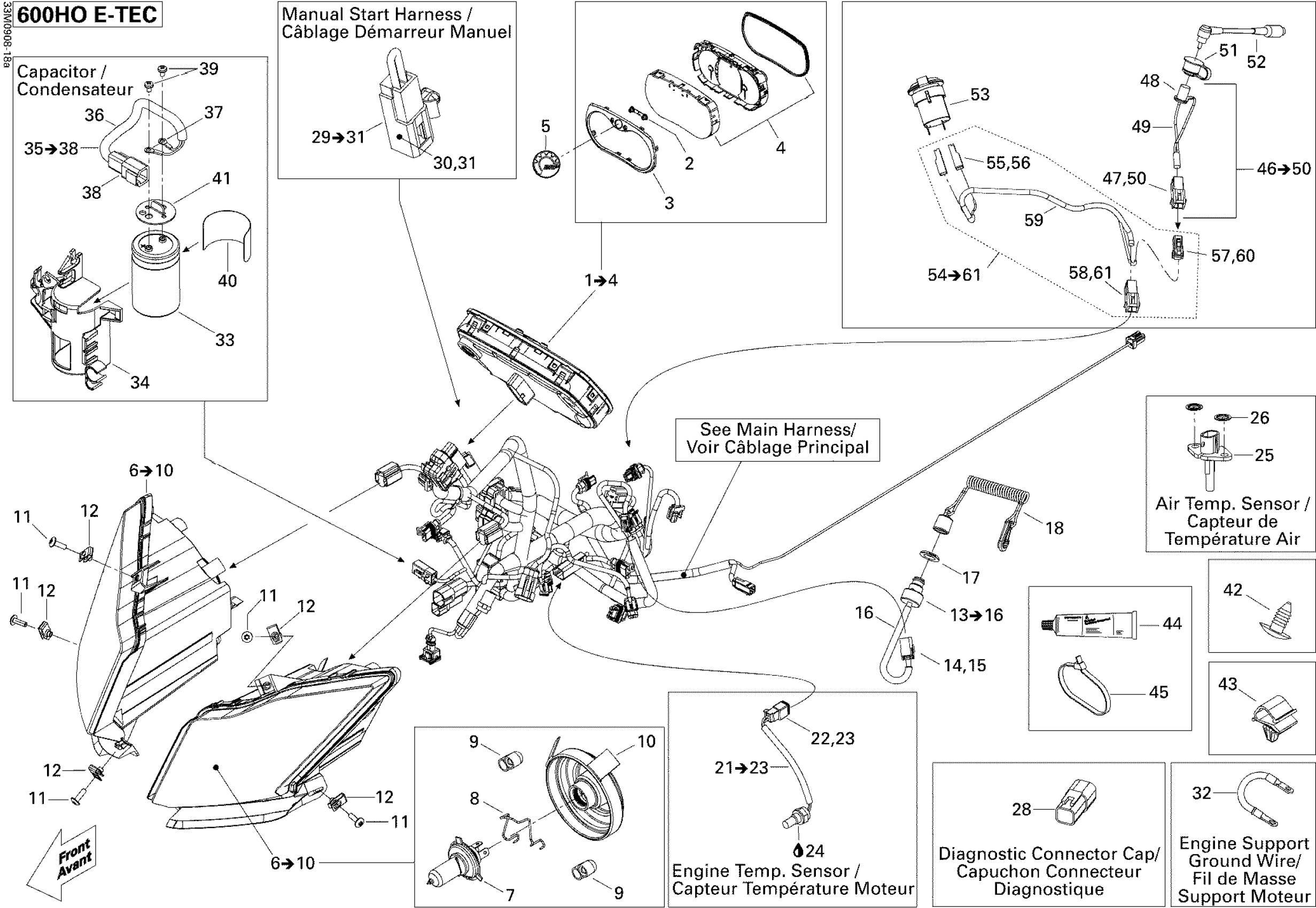

Ski-Doo GTX LE 600 H.O. E-TEC, 2009 Electrical System 600 HO Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$615.35

2

Speedometer Button | XTP

415129355

$13.94

3

Gauge Ring

415129348

$11.71

4

Lens | XTP

415129349

$23.05

5

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$139.97

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$139.97

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

$12.18

10

Rubber Cap Protector

219800280

$17.66

11

Torx Screw M6 X 20

250000722

$1.34

12

Panel Nut M6 X 1.0

250100198

$1.73

13

DESS Switch

515177249

$106.12

14

Male Terminal

515175232

$1.49

15

Male Housing, 3 Circuits

515175494

$15.35

16

Tubing 12 mm

409902000

Unavailable

17

Safety Nut (DESS Switch)

278002963

$2.72

18

DESS

515178284

$81.51

21

Temperature Sensor This part replaces 420664508.

420664509

$142.28

22

Female Terminal Housing, 2 Circuits

515175670

$7.85

23

Female Terminal

278000632

$1.69

24

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

25

Air Temperature Sensor

515176366

$18.43

26

Push Nut

389804300

$0.43

28

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

29

MANUAL START HARNESS - Call your local BRP dealership | Includes 29 to 31

515176661

Unavailable

30

Male Terminal

515175232

$1.49

31

Male Housing, 2 Circuits

710000667

$7.48

32

Ground Wire

515176358

$26.12

33

Capacitor

515177272

$85.35

34

Capacitor Support

515176607

$17.66

35

Capacitor Harness

515176605

$31.51

36

Tubing 6 Mm 3000Mm Long

219704425

$13.14

37

Ring Terminal

515175504

$7.48

38

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

39

SCREW 10-32 X 5/16 - Call your local BRP dealership

515176542

Unavailable

40

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

41

Cap

515177193

$4.43

42

Black, Dart

414644300

$0.78

43

Tie Rap Mount (screwable)

515176795

$5.11

44

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

45

Tie-Rap 180 mm

414115200

$0.09

45

Tie Wrap 142 mm

293750002

$0.88

45

Tie Wrap 368 mm

293750008

$0.85

45

Tie Wrap 94 mm | 4X4

293750001

$0.83

46

Visor Harness

515177837

$32.28

47

Male Terminal

515175232

$1.49

48

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

49

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

50

Male Terminal Housing, 2 Circuits

515175654

$7.48

51

Cap

572103300

$9.65

52

Extension

515175851

$10.88

53

DC Outlet

710001248

$31.17

54

Power Outlet Harness - Call Your Local BRP Dealership | Includes 50 to 57

515176527

Unavailable

55

Female Terminal

409010100

$5.46

56

Female Terminal Housing, 1 Circuit

409010400

$7.48

57

Male Terminal

515175232

$1.49

58

Female Terminal

515175231

$4.12

59

Tubing 6 Mm 3000Mm Long

219704425

$13.14

60

Male Terminal Housing, 2 Circuits

515175654

$7.48

61

Female Housing, 2 Circuits

515175658

$15.35
