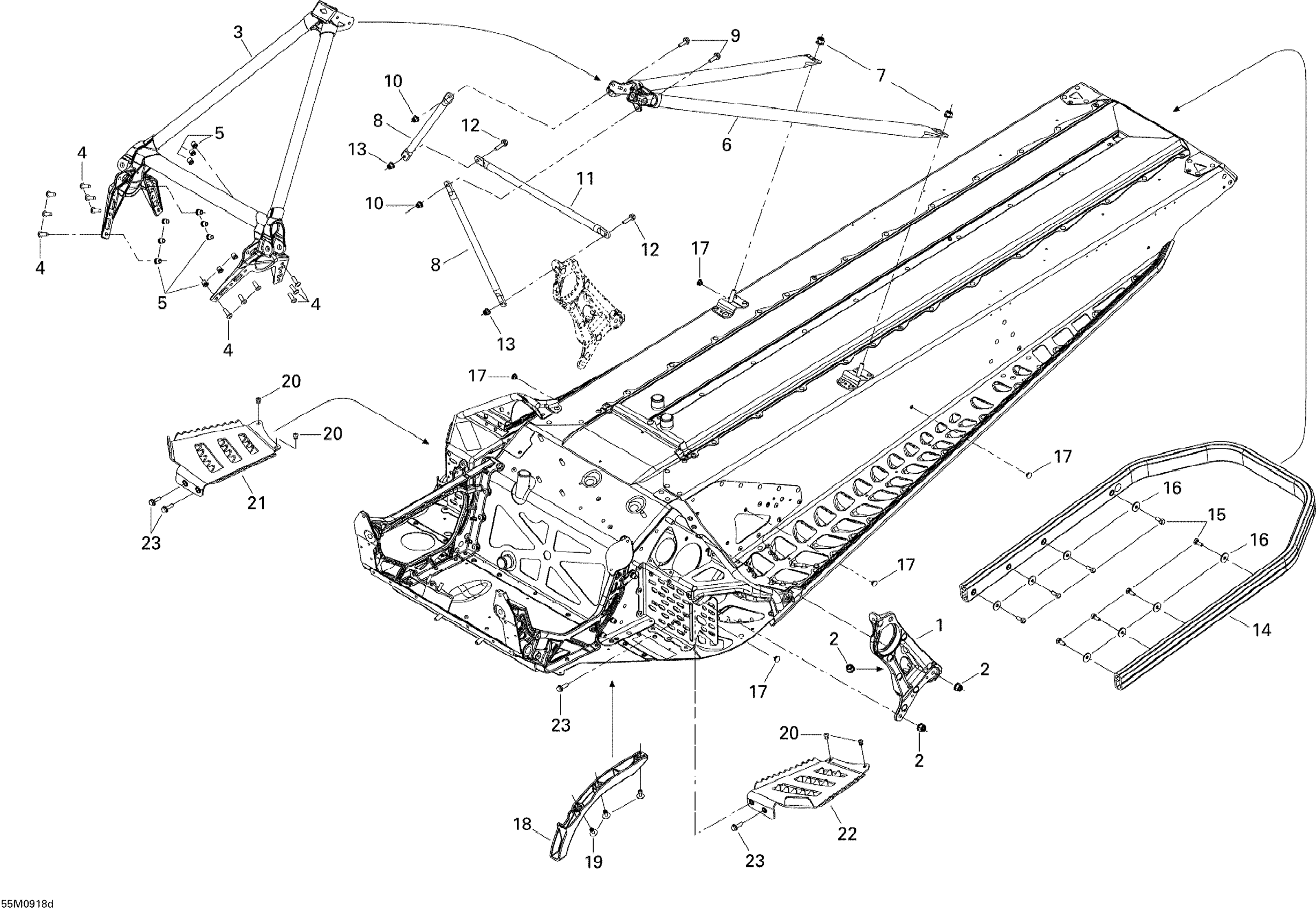

Ski-Doo GTX LE 600 H.O. E-TEC, 2009 Frame and Components 2_600HO Diagram

#

Description
Price

1

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

2

Hex. Flange Elastic Nut M8

233281414

Unavailable

3

Front Member

518326970

$276.12

4

Hex. Flange Screw M6 X 20

207662044

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

6

Rear Member

518326559

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

Upper Lateral Column Support

518325114

Unavailable

9

Hex. Flange Screw M6 X 20

207662044

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

11

Center Column Support

518325115

Unavailable

12

Hex. Flange Screw M6 X 25

207662544

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

REAR BUMPER - Call your local BRP dealership | Grand Touring LE

518325470

Unavailable

15

HEX. CAP SCREW M6 X 16 - Call your local BRP dealership

207161686

Unavailable

16

Flat Washer

224061201

Unavailable

17

Full Moon Dart 8 mm

293730041

$2.12

18

Front Tunnel Protector | Includes 1700 to 1700a

518326973

Unavailable

19

Pop Rivet 3/16”

293150108

$1.23

20

Stavex Rivet

293150144

Unavailable

21

RH FOOTREST - Call your local BRP dealership | Grand Touring LE

518326193

Unavailable

22

LH FOOTREST - Call your local BRP dealership | Grand Touring LE

518326194

Unavailable

23

Hex. Flange Screw M6 X 20

207662044

Unavailable
