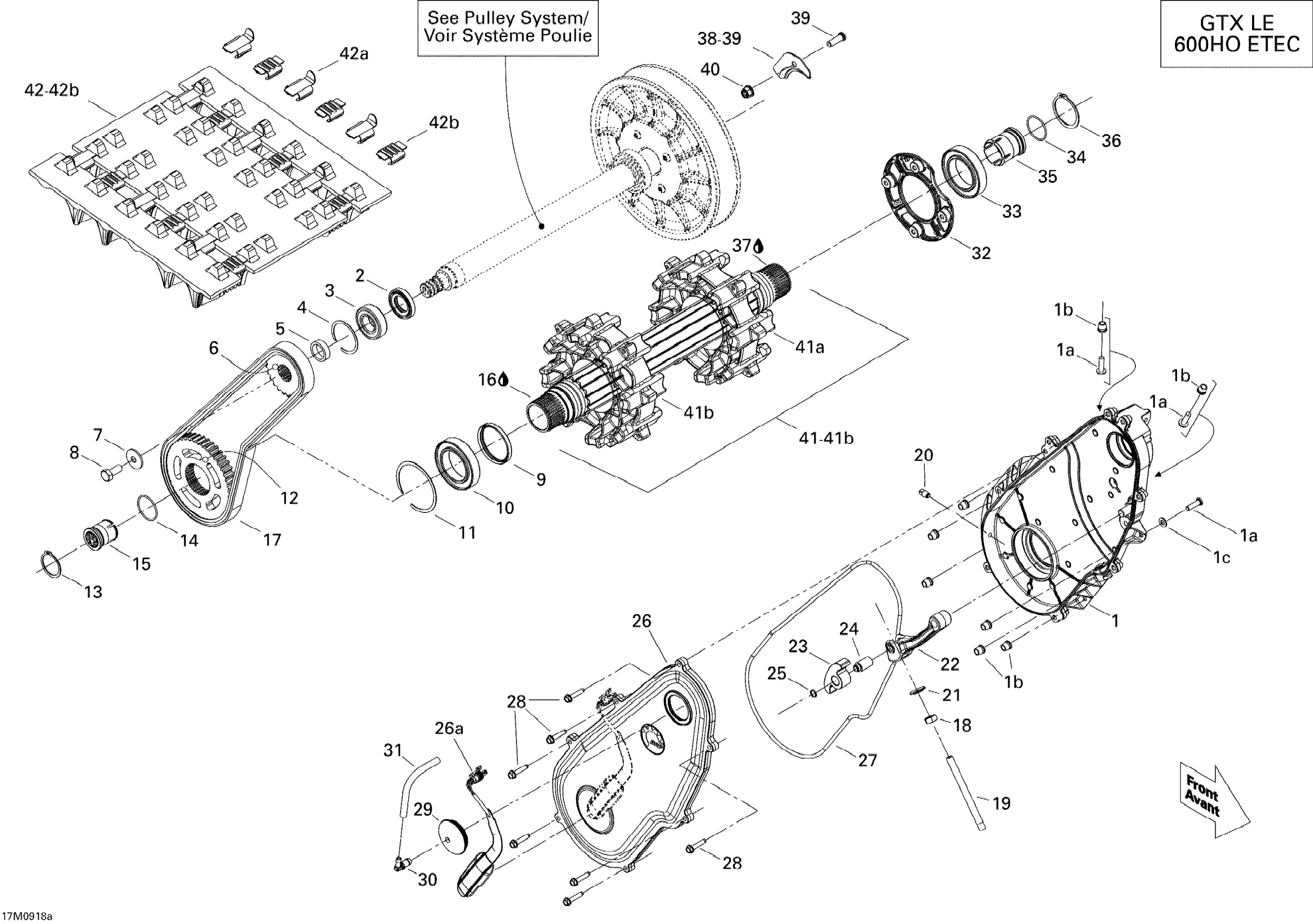

Ski-Doo GTX LE 600 H.O. E-TEC, 2009 Drive System Diagram

#

Description
Price

1

Chaincase

504153184

$321.51

1a

Hex. Flange Screw M6 X 20

207662034

$1.74

1b

Flange Elastic Nut M6

233261434

$3.61

1c

Flat Washer 6 mm

234061410

$1.04

2

Oil Seal

293200158

$12.52

3

Ball Bearing

293350115

$11.15

4

Circlip

504152576

$8.71

5

Shim

504152628

$8.40

6

Sprocket 23 Teeth

504153911

$42.28

7

Spring Washer M10

504152784

$6.26

8

Hex. Screw M10 X 25

207102544

$1.11

9

Oil Seal

293200159

$13.12

10

Ball Bearing

293350059

$30.74

11

Circlip

504152582

$8.71

12

Kit Sprocket This part replaces 504152593.

861805538

$153.05

13

Circlip

504152572

$6.26

14

O-Ring

293300122

$2.06

15

Magnetic Cap

504152619

$23.05

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Drive Chain, 104 Links

504152629

$173.82

18

Hex. Nut M10 X 1.5

232006414

$1.11

19

Adjustment Screw

504152602

$9.62

20

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.95

21

Bonded Washer

250200100

$1.74

22

Tensioner chain

504153429

$13.77

23

Slider Chain

504152739

$67.66

24

Tensioner Axle

504152841

$14.65

25

Circlip

504152282

$3.11

26

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$324.58

26a

Rotation Sensor

504152896

$35.35

27

Tight Seal

293300130

$7.31

28

Hex. Flange Screw M6 X 1.0 X 30

250000360

$1.74

29

Cap

504152860

$19.20

30

Male Connector

414580700

$3.38

31

Polyurethane Hose 10000Mm Long

219704410

$46.12

32

Bearing Housing

507032437

$18.43

33

Ball Bearing

293350059

$30.74

34

O-Ring

293300122

$2.06

35

Magnetic Cap

504152619

$23.05

36

Circlip

504152572

$6.26

37

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

38

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.89

39

Clinch Stud, M8 X 25

250300028

$4.28

40

Hex. Flange Elastic Nut M8

233281414

$1.14

41

Drive Axle Ass'y

504154054

$516.89

41a

Drive Axle Ass'y

504154054

$516.89

41b

Drive Axle Ass'y

504154054

$516.89

42

Track Ass'y 15X137X1.0

504152755

$879.99

42a

Track Guide | Track Width 16''

415129528

$3.12

42b

Cleat

504152651

$8.22
