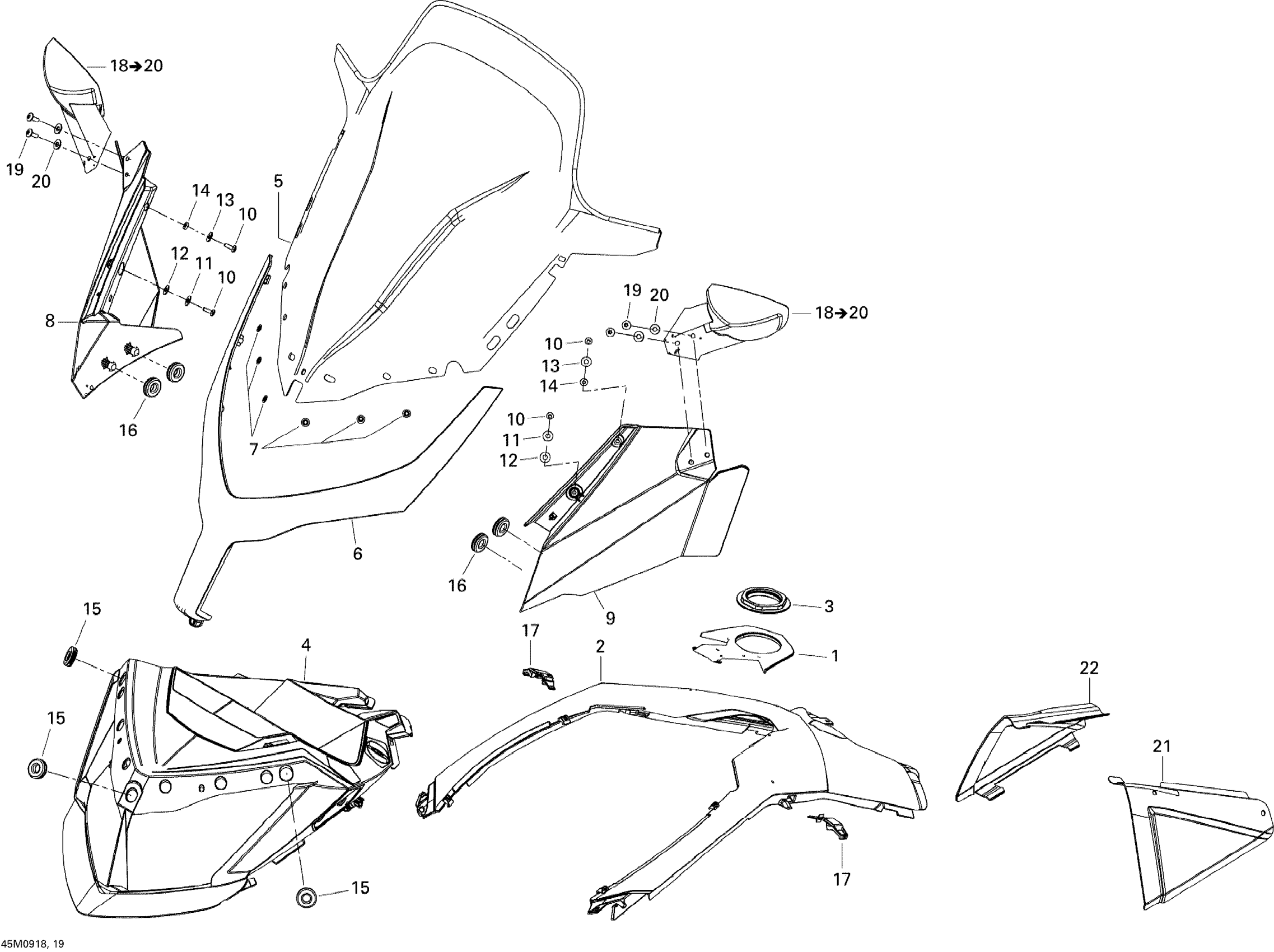

Ski-Doo GTX LE 1200 4-TEC, 2009 Windshield And Console Diagram

#

Description
Price

1

Deep Black, Cap Console

517304027

$12.67

2

Black Console

517303741

$205.94

2

CONSOLE - Call your local BRP dealership | Red-Red Model

517304042

Unavailable

3

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

4

INDICATOR SUPPORT - Call your local BRP dealership

517303971

Unavailable

5

EXTRA HIGHT WINDSHIELD (620) - Call your local BRP dealership

517304268

Unavailable

6

Windshield Support Kit

860200230

$35.79

7

Push Nut

732610072

$1.97

8

RH Console Air Deflector

517303745

$41.76

9

LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303746

Unavailable

10

Torx Screw K50 X 16

250000720

$1.60

11

Washer M5

250200025

$0.70

12

Rubber Washer 5 mm

250200024

$2.03

13

Flat Washer

517225900

$0.16

14

Rubber Washer 5 mm

517304281

$12.49

15

Grommet

517303756

$3.61

16

Grommet

517303756

$3.61

17

Panel Latch

517305000

$10.99

18

RH Mirror Ass'y

517305100

$49.97

18

LH Mirror Ass'y

517305101

$49.97

19

Torx Truss Screw M6 X 16

250000721

$1.60

20

Rubber Washer 5 mm

250200024

$2.03

21

DEEP BLACK LH FUEL TANK MOULDING - Call your local BRP dealership | Model-Black-Black

517304123

Unavailable

21

ROYAL RED LH FUEL TANK MOULDING - Call your local BRP dealership | Red-Red Model

517304083

Unavailable

22

DEEP BLACK RH FUEL TANK MOULDING - Call your local BRP dealership | Model-Black-Black

517304124

Unavailable

22

ROYAL RED RH FUEL TANK MOULDING - Call your local BRP dealership | Red-Red Model

517304084

Unavailable
