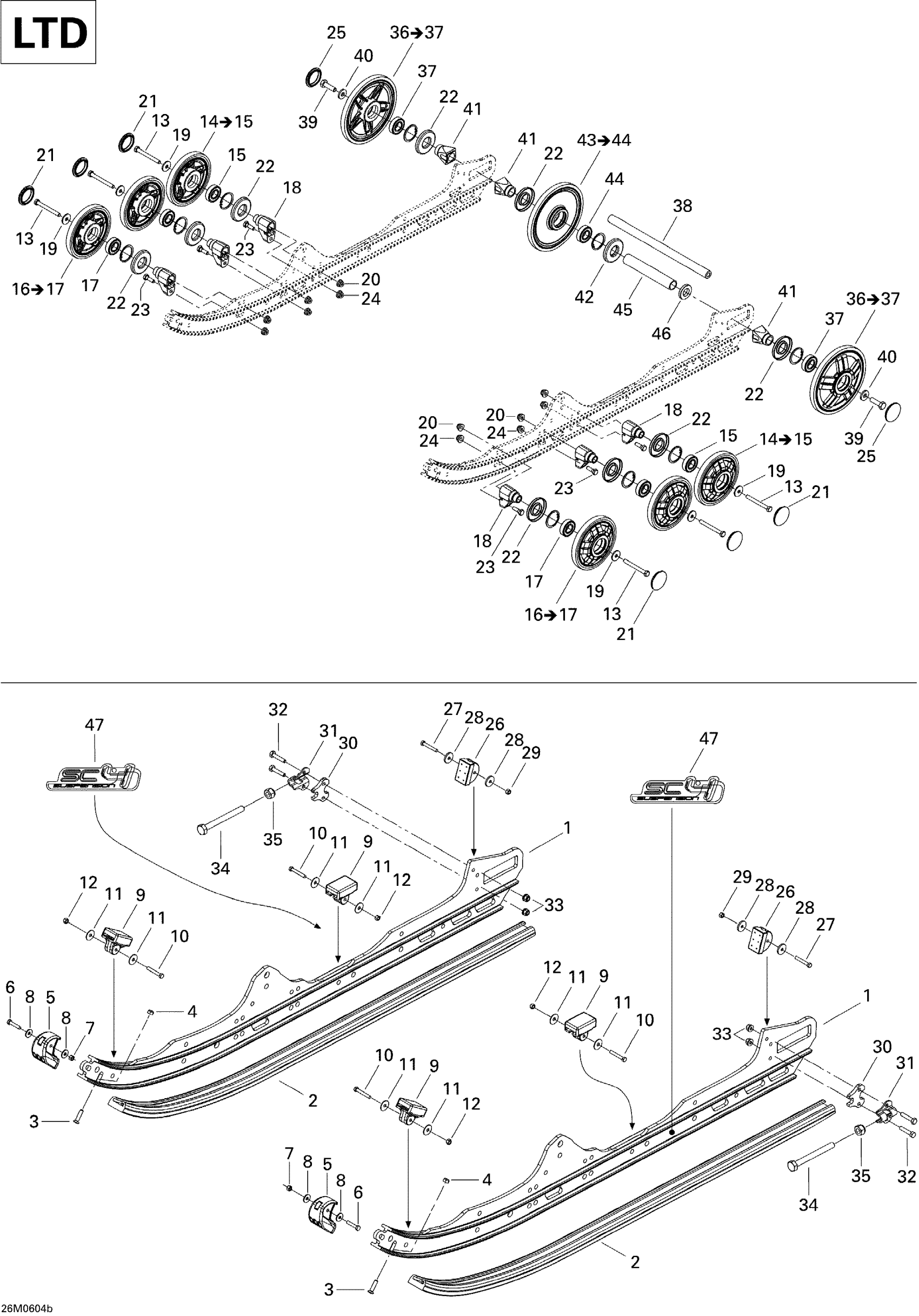

Ski-Doo GTX 800 HO, 2006 Rear Suspension LTD Diagram
#
1
RUNNER 136 - Call your local BRP dealership
503191055
Unavailable
2
Slider Shoe, Black
503191087
Unavailable
3
Phillips Screw M6 X 25
208562560
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
5
Runner Protector
503191137
Unavailable
6
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152544
Unavailable
7
Elastic Stop Nut M5
232551414
Unavailable
8
Washer | DS 650 X
391301600
Unavailable
9
Rubber Stopper
503190576
Unavailable
10
Hex. Screw M5 X 30
207053044
Unavailable
11
Washer
250200016
Unavailable
12
Elastic Stop Nut M5
232551414
Unavailable
13
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
14
WHEEL 147 WITH PATTERN ASS'Y, FULL MOON - Call your local BRP dealership | Includes 15 to 16
503191317
Unavailable
14
WHEEL 147 WITH PATTERN ASS'Y, FULL MOON - Call your local BRP dealership | Includes 15 to 16
503191317
Unavailable
14
Wheel 147 With Pattern Ass'y, Sea-shore | Includes 14 to 15
503191318
Unavailable
15
Ball Bearing | Package-STD
503190396
Unavailable
16
Wheel 141 With Pattern Ass'y, Full Moon
503191313
Unavailable
16
Wheel 141 With Pattern Ass'y, Full Moon
503191313
Unavailable
16
Wheel 141 With Pattern Ass'y, Full Moon | Includes 16 to 17
503191315
Unavailable
17
Ball Bearing | Package-STD
503190396
Unavailable
18
Support
503190580
Unavailable
19
Washer
211200041
Unavailable
20
Hex. Flange Elastic Nut M8
233281414
Unavailable
21
Wheel Cap
570063600
Unavailable
22
Labyrinth Seal
503190434
Unavailable
23
Hex. Screw M8 X 25
207182544
Unavailable
24
Hex. Flange Elastic Nut M8
233281414
Unavailable
25
Wheel Cap
570063600
Unavailable
26
Rubber Stopper
503191291
Unavailable
27
Hex. Screw M5 X 30
207053044
Unavailable
28
Washer
250200016
Unavailable
29
Elastic Stop Nut M5
232551414
Unavailable
32
Hex. Screw M6 X 30
207063044
Unavailable
33
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
34
HEX. SCREW M10 X 100 - Call your local BRP dealership
230100044
Unavailable
36
WHEEL 180, FULL MOON - Call your local BRP dealership | Includes 34 to 35
503190752
Unavailable
36
Wheel 180 | Includes 36 to 37
503191102
Unavailable
37
Ball Bearing | Package-STD
503190396
Unavailable
39
Hex. Screw With Nylon
250000019
Unavailable
42
Labyrinth Seal
503190682
Unavailable
43
Black - Wheel Ass'y 180 mm | Includes 600 to 600b
503194202
Unavailable
44
Ball Bearing | Package-STD
503190396
Unavailable
45
Spacer
503196317
Unavailable
46
Washer
503190432
Unavailable
47
SC4 Decal
516002615
Unavailable
