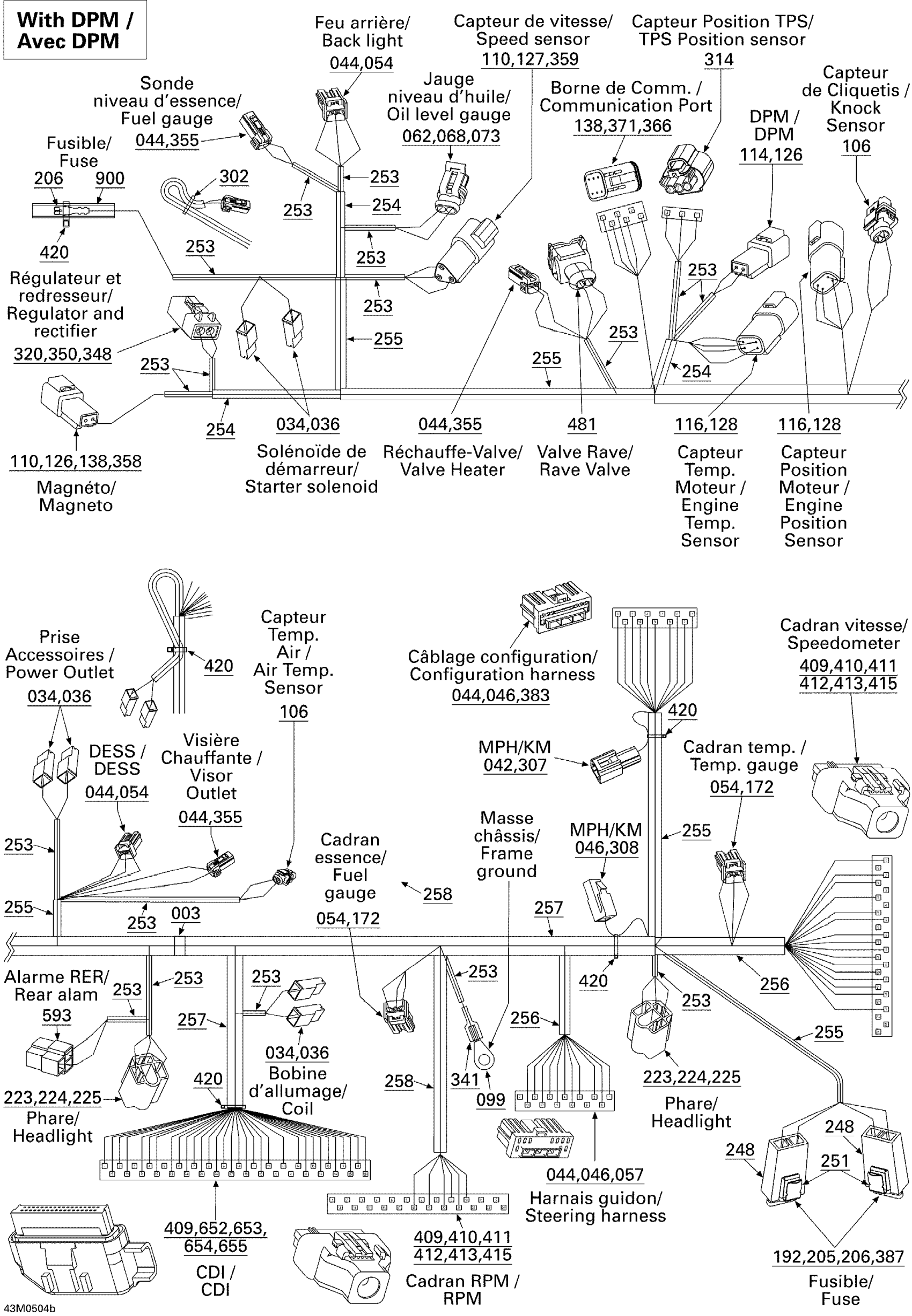

Ski-Doo GTX 800 HO, 2005 Electrical Harness With DPM Diagram
#
001
Frame Harness Ass'y | Includes 001 to 900
515176166
Unavailable
003
Not Available As Spare Part - Friction Washer
Unavailable
042
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
044
Female Terminal
515175231
Unavailable
057
Female Terminal Housing, 13 Circuits
515175350
Unavailable
062
Female Terminal
278001014
Unavailable
068
Female Housing, 3 Circuits
409209600
Unavailable
073
Wire Seal
278001013
Unavailable
112
Female Terminal
278000632
Unavailable
114
Male Housing, 2 Circuits
409206900
Unavailable
132
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
409207100
Unavailable
138
Sealing Cap
293000052
Unavailable
172
Female Terminal
561503100
Unavailable
206
Female Terminal
409004200
Unavailable
223
FEMALE TERMINAL - Call your local BRP dealership
515175320
Unavailable
224
FEMALE TERMINAL - Call your local BRP dealership
515175321
Unavailable
225
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
248
Fuse Holder
409004000
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
258
Tubing 10 MM 1000MM Long
219704407
Unavailable
286
Seal
409012300
Unavailable
307
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175509
Unavailable
308
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175510
Unavailable
314
Not Available As Spare Part - Friction Washer
Unavailable
341
Not Available As Spare Part - Friction Washer
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
359
Male Housing
515175666
Unavailable
363
Female Terminal Housing, 2 Circuits
515175670
Unavailable
368
Female Lock, 2 Circuits
515175675
Unavailable
371
Male Wedge, 6 Circuits
515175678
Unavailable
372
FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership
515175679
Unavailable
382
FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership
515175704
Unavailable
383
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
515175719
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
409
Plug
515175812
Unavailable
410
Female Housing, 24 Circuits
515175801
Unavailable
411
Retainer Block
515175802
Unavailable
412
Wire Seal
515175803
Unavailable
593
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515176069
Unavailable
652
Not Available As Spare Part - Friction Washer
Unavailable
653
Not Available As Spare Part - Friction Washer
Unavailable
654
Not Available As Spare Part - Friction Washer
Unavailable
655
Not Available As Spare Part - Friction Washer
Unavailable
900
Hose
415079200
Unavailable
