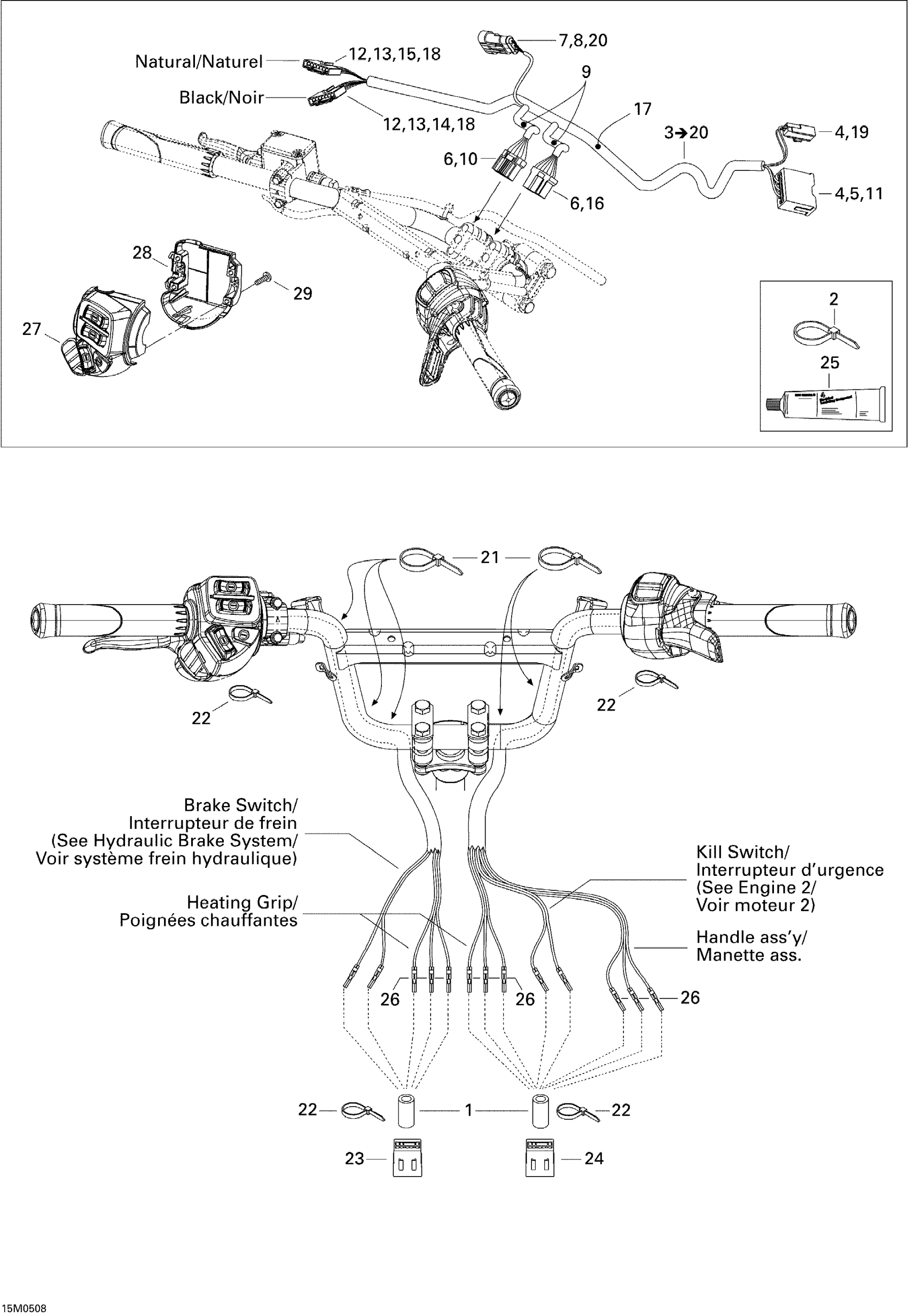

Ski-Doo GTX 600 HO SDI, 2005 Steering Wiring Harness Diagram

#

Description
Price

1

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

2

Tie Wrap 368 mm

293750008

$0.85

3

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 3 to 20

515176205

Unavailable

4

Male Terminal

515175232

$1.49

5

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

6

Female Terminal

515175231

Unavailable

7

Housing

710000568

Unavailable

8

Wire Seal

278001013

Unavailable

9

Tubing 10 MM 1000MM Long

219704407

Unavailable

10

Female Terminal Housing, 6 Circuits

515175543

$8.57

11

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

12

FEMALE TERMINAL - Call your local BRP dealership

515175808

$5.74

13

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

$7.65

14

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

$2.69

15

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

16

Female Terminal Housing, 8 Circuits

515175819

$7.46

17

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

18

Female Terminal

515175941

$2.48

19

Male Terminal Housing, 2 Circuits

515175654

$7.48

20

Male Terminal

515176164

Unavailable

21

Tie-Rap 180 mm

414115200

$0.09

22

Tie Wrap 142 mm

293750002

Unavailable

23

Male Terminal Housing, 6 Circuits

515175662

Unavailable

24

Male Terminal Housing, 8 Circuits

515175817

Unavailable

25

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

26

Male Terminal

515175232

$1.49

27

LH SWITCH HOUSING - Call your local BRP dealership

515176015

Unavailable

28

Switch Housing Plate

515175926

Unavailable

29

Torx Screw #8-18

250000263

$1.02
