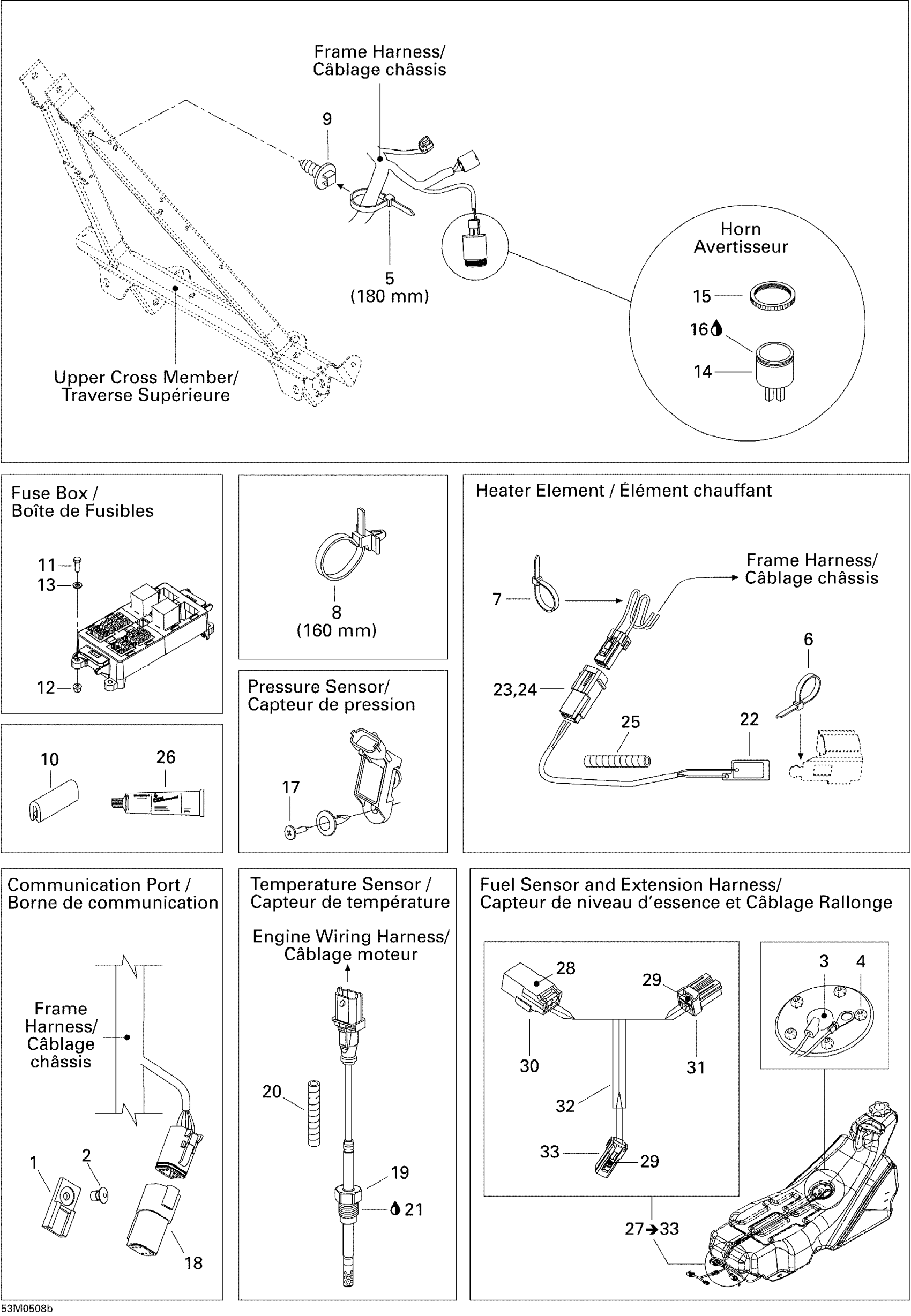

Ski-Doo GTX 600 HO SDI, 2005 Electrical Accessories 2 Diagram

#

Description
Price

1

Clip

270000141

$8.33

2

Avdel Rivet 3/16"

293150037

$0.47

3

FUEL LEVEL SENSOR - Call your local BRP dealership | LTD

515176213

Unavailable

4

Elastic Stop Nut M5

232551414

Unavailable

5

Tie-Rap 180 mm

414115200

$0.09

6

Tie Wrap 94 mm | 4X4

293750001

$0.83

7

Tie Wrap 142 mm

293750002

Unavailable

8

Tie-Rap 173 mm

293750009

Unavailable

9

Mount Dart

293730040

$0.86

10

Was 271000110 Protection Trim

219704353

Unavailable

11

Hex. Screw M5 X 20

207152044

$0.88

12

Hex. Flange Elastic Nut M5

233251414

Unavailable

13

Flat Washer M5

234051410

Unavailable

14

HORN - Call your local BRP dealership

515176035

Unavailable

15

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

16

Silicone Sealant 51388, 300 ml

296000309

Unavailable

17

Tuflock Phillips Plastic Screw

414745900

$1.30

18

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

$10.63

19

Temperature Sensor

515176132

Unavailable

20

Tubing 6 Mm 3000Mm Long

219704425

$13.14

21

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

22

Heater Element

515176256

Unavailable

23

Male Terminal Housing, 2 Circuits

515175654

$7.48

24

Male Terminal

515175232

$1.49

25

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

26

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

27

EXTENSION HARNESS - Call your local BRP dealership | Includes 26 to 32

515176171

Unavailable

28

Male Terminal

515175232

$1.49

29

Female Terminal

515175231

Unavailable

30

Male Housing, 3 Circuits

515175494

$15.35

31

Female Housing, 3 Circuits

515175495

$15.35

32

Tubing 6 Mm 3000Mm Long

219704425

$13.14

33

Female Housing, 2 Circuits

515175658

Unavailable
