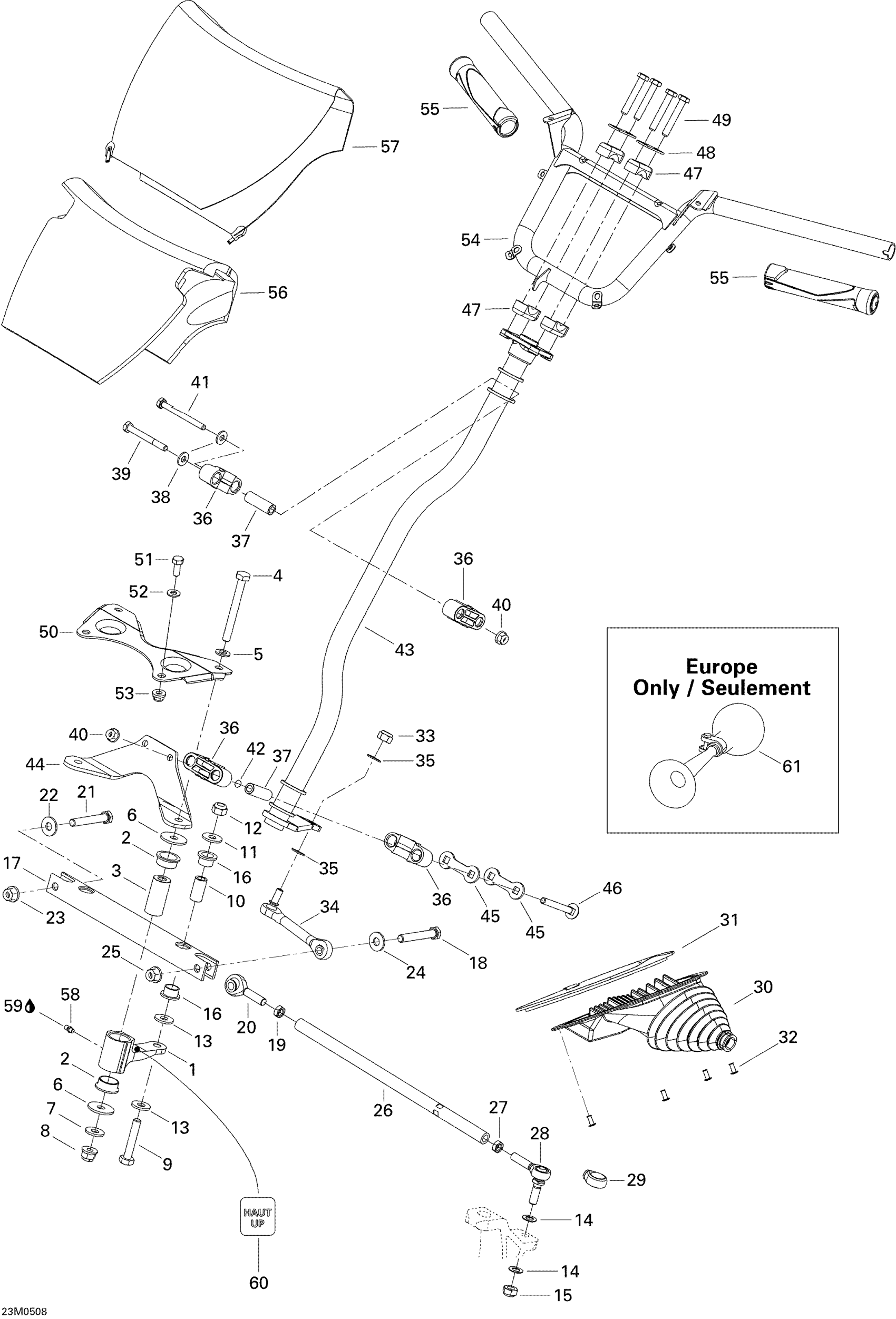

Ski-Doo GTX 600 HO SDI, 2005 Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151627

Unavailable

1

LH Swivel Arm

506151628

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.20

6

Washer 10 mm

506150000

$2.63

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

$5.49

9

Hex. Screw M10 X 55

207005544

$1.85

10

Pivot Bar

506151273

$15.00

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

250200032

$4.98

14

Washer

503175800

$3.26

15

Elastic Flange Nut M10

232501416

$1.25

16

Swivel Bushing

503191555

$5.71

17

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

18

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

19

LH Threaded Hex. Jam Nut M10

250100016

$0.72

20

LH Ball Joint

506151810

Unavailable

21

Hex. Screw M10 X 45

207004544

$1.65

22

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

23

Hex. Flange Elastic Nut M10

233201414

$1.26

24

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

25

Hex. Flange Elastic Nut M10

233201414

$1.26

26

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

27

RH Threaded Hex. Jam Nut M10

732610010

$0.72

28

Ball Joint

506151811

Unavailable

29

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

30

RH Tie-Rod Cap

506151725

$40.74

31

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

30

LH Tie-Rod Cap

506151726

$40.74

31

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

32

Avex Rivet

390909100

$0.29

33

Elastic Flange Nut M10

232501416

$1.25

34

BALL JOINT, DOUBLE - Call your local BRP dealership

506151621

Unavailable

35

Washer

503175800

$3.26

36

Housing Half

506150400

$7.31

37

Housing Bushing

506150500

$7.49

38

Washer

503189157

$3.20

39

Hex. Screw M8 X 70

207087044

$1.73

40

Hex. Flange Elastic Nut M8

233281414

$1.14

41

Hex. Screw M8 X 80

207088044

$1.58

42

O-RING - Call your local BRP dealership

506151140

Unavailable

43

Main Tube

506151334

Unavailable

44

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

45

Stopper Plate

506150600

$4.15

46

Carriage Bolt M8 X 70

207787044

$1.11

47

Steering Support

709400919

$20.74

48

Stiffner

709400509

$4.43

49

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

50

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

51

Hex. Screw M8 X 25

207182544

$0.74

52

Flat Washer 8 mm

234081410

$0.69

53

Hex. Flange Elastic Nut M8

233281414

$1.14

54

Handle Bar

506151908

Unavailable

55

Handle Grip

506152238

Unavailable

56

Cushion Foam

506151957

Unavailable

57

Deep Black, Cushion Cover

506151956

Unavailable

57

Cushion Cover,earth Grey, b-231 | LTD

506151967

Unavailable

58

Grease Fitting

408200700

$2.80

59

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable

60

Upper Decal

516001750

Unavailable
