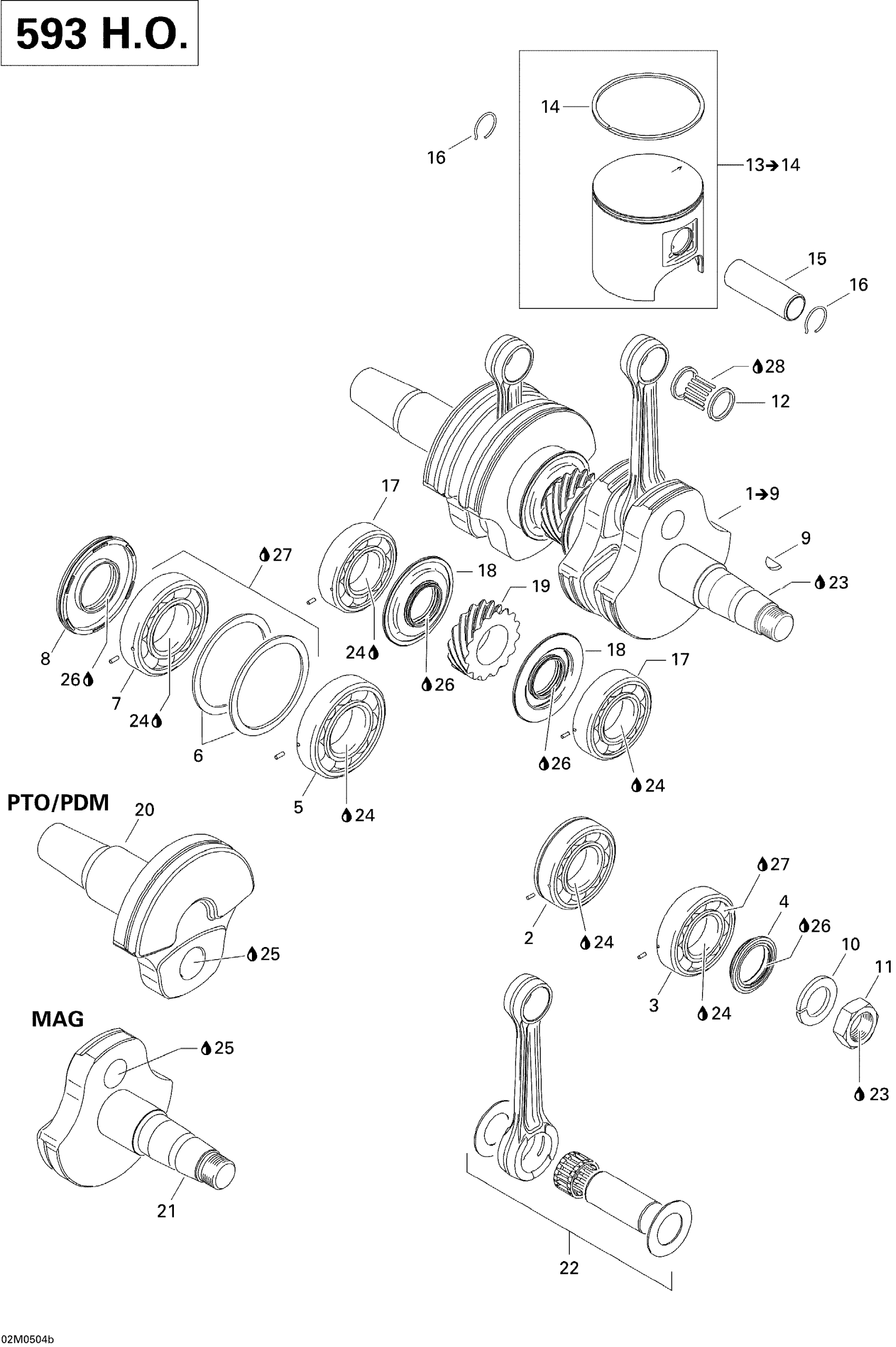

Ski-Doo GTX 600 HO, 2005 Crankshaft And Pistons 593HO Diagram
#
Description
Price
1
REBUILD-CRANKSHAFT 693/593HO - Call your local BRP dealership This part replaces 420889097.
421000609
Unavailable
3
Ball Bearing 6207 | With drive pin
420832575
Unavailable
5
Ball Bearing | With drive pin
420832602
Unavailable
6
Washer
420926190
Unavailable
8
Oil Seal | Included in gasket kit
420931284
Unavailable
9
Woodruff Key
420246015
Unavailable
10
Lock Washer, 22 mm
420945759
Unavailable
11
Hex. Nut, M22 X 1.5
420842239
Unavailable
12
Needle Bearing
420832445
Unavailable
15
Piston Pin
420916412
Unavailable
16
Piston Circlip
420845106
Unavailable
17
Ball Bearing 6207 | With drive pin
420832575
Unavailable
18
Oil Seal
420931455
Unavailable
19
CENTRAL GEAR - Call your local BRP dealership
420834355
Unavailable
20
CRANKSHAFT PTO - Call your local BRP dealership
420818709
Unavailable
21
CRANKSHAFT, MAG SIDE - Call your local BRP dealership
420818739
Unavailable
22
KIT-ROD REPAIR MAG-SIDE - Call your local BRP dealership This part replaces 420684653.
420684080
Unavailable
22
KIT-ROD REPAIR PTO-SIDE - Call your local BRP dealership This part replaces 420684654.
420684081
Unavailable
24
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
25
Sealant Loctite 648
219703000
Unavailable
26
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
27
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
28
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
