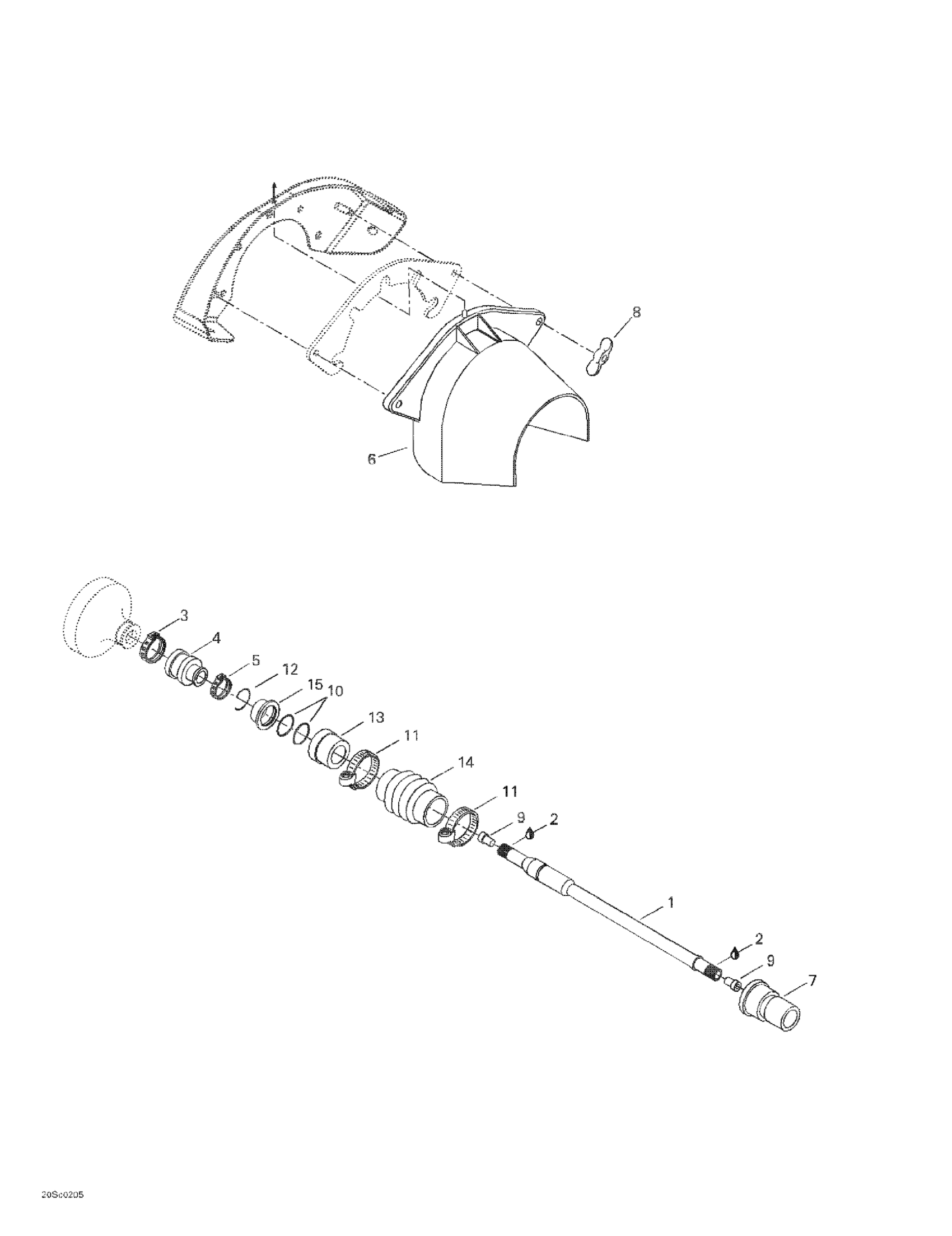

Sea-doo GTX, 5587/5588, 2002 Drive System Diagram

#

Description
Price

1

DRIVE SHAFT - Call your local BRP dealership

272000160

Unavailable

2

Synthetic Grease, 400 G

293550010

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Flywheel Guard

272000168

Unavailable

7

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

8

Wing Nut M8

232681100

$1.73

9

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

10

O-Ring

293300032

$4.89

11

Norma Clamp

293650075

$9.28

12

C-CLIP - Call your local BRP dealership

272000135

Unavailable

13

Carbon Ring

272000770

Unavailable

14

BELLOWS - Call your local BRP dealership

272000184

Unavailable

15

Support Ring

272000064

$53.27
