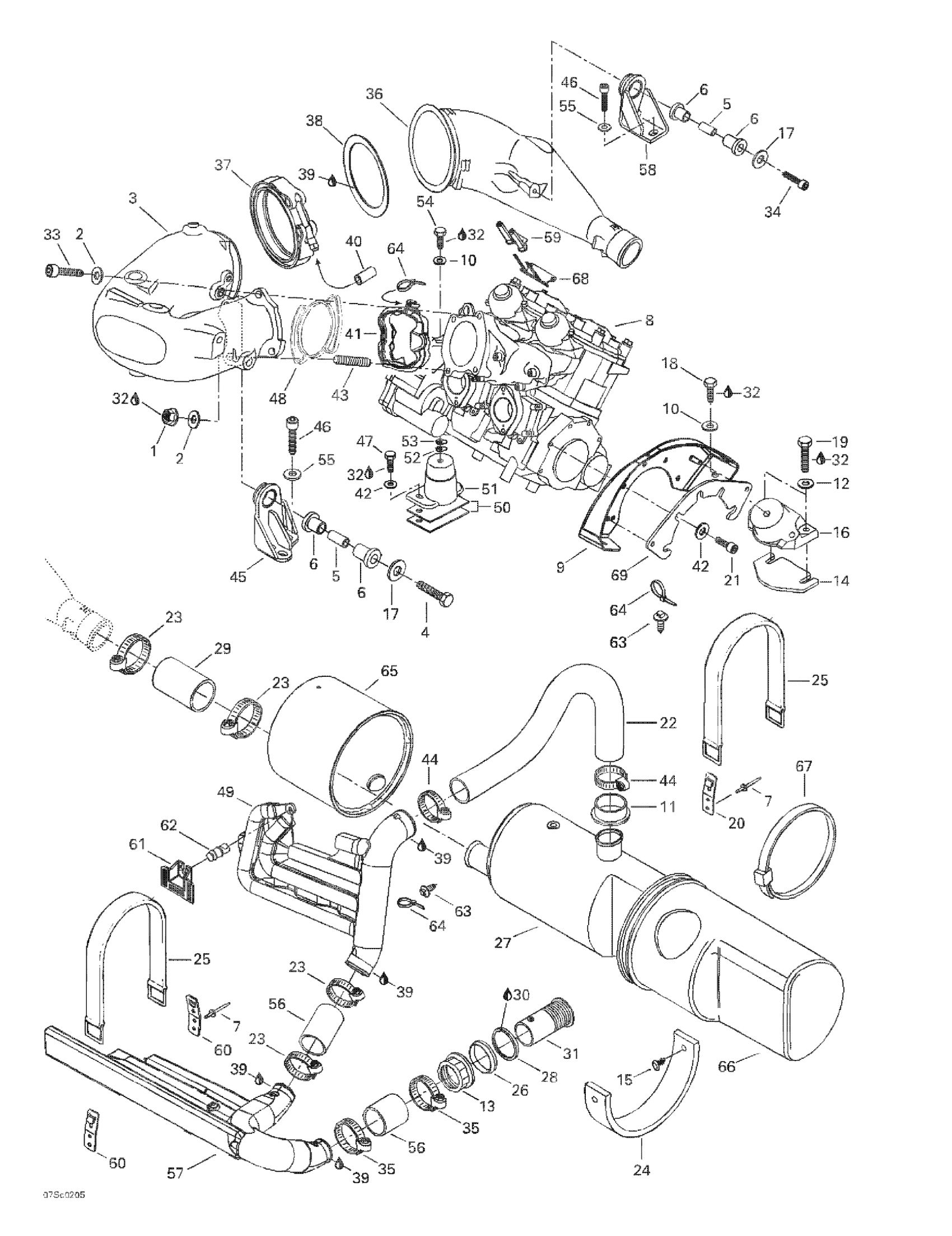

Sea-doo GTX, 5587/5588, 2002 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Flange Nut M10

233101600

$4.39

2

Flat Washer

211200051

$1.34

3

Head Pipe Ass'y | Includes 34 - 38.

274000928

Unavailable

4

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

$5.29

5

BUSHING - Call your local BRP dealership

274000861

Unavailable

6

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

7

Avdel Rivet 3/16"

293150037

$0.47

8

Rotax Engine 947 (Silver)

270000522

Unavailable

9

Engine Support

270000359

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$1.98

11

Hose Adaptor

274000766

Unavailable

12

Stainless, Flat Washer 8 mm

234081600

$0.46

13

Nut 72 mm

274000224

$12.17

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Black, Dart

414644300

$0.78

16

Rubber Mount, Black

270000421

Unavailable

17

Flat Washer 10 mm, Stainless

234002600

$1.85

18

Hex. Screw M8 X 16

207181660

Unavailable

19

Hex. Screw M8 X 40

207184060

$1.85

20

Strap Clip

293850030

$8.97

21

Socket Head Screw M8 X 25, Scotch Grip

205582560

$1.73

22

Exhaust Hose

274000711

Unavailable

23

Tridon Clamp

293650064

$7.80

24

Rubber Pad

293830069

Unavailable

25

Retainer Strap

293850097

$9.26

26

STABILIZING WASHER - Call your local BRP dealership

274000225

$6.42

27

Muffler (Black)

274000749

Unavailable

28

GASKET - Call your local BRP dealership

293250041

$7.85

29

EXHAUST HOSE - Call your local BRP dealership

274000530

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$35.72

31

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

34

Hex. Screw M10 X 40, Scotch Grip

244004060

$3.98

35

Tridon Clamp

293650064

$7.80

36

EXHAUST CONE, BLACK - Call your local BRP dealership

274000871

$295.35

37

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

38

SEALING RING - Call your local BRP dealership

274000511

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

40

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

41

PICK UP ENVELOPE - Call your local BRP dealership

274000862

Unavailable

42

Stainless, Flat Washer 8 mm

234081600

$0.46

43

STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership

250300008

Unavailable

44

Tridon Clamp

293650179

$8.81

45

Pipe Support

274000890

Unavailable

46

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

$2.58

47

Hex. Screw M8 X 40

207184060

$1.85

48

Exhaust Gasket

290931990

Unavailable

49

LH Resonator

274000655

Unavailable

50

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

51

Rubber Mount, Black

270000422

Unavailable

52

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

53

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

54

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

55

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

$5.29

56

Exhaust Hose

274000616

Unavailable

57

Resonator

295500683

Unavailable

58

Pipe Support

274000878

Unavailable

59

INSULATOR - Call your local BRP dealership

278001512

$7.89

60

STRAP CLIP - Call your local BRP dealership

293850024

$13.74

61

Pad Support

291001352

Unavailable

62

RUBBER PAD - Call your local BRP dealership

293830062

$10.74

63

Mount Dart

293730040

$0.86

64

Tie Wrap 142 mm

293750002

$0.88

65

MUFFLER COVER, FRONT - Call your local BRP dealership

274000796

$83.05

66

Muffler Cover, Rear

274000799

Unavailable

67

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

$4.00

68

GROUND PLATE - Call your local BRP dealership

278001662

$18.43

69

Gasket

293250110

Unavailable
