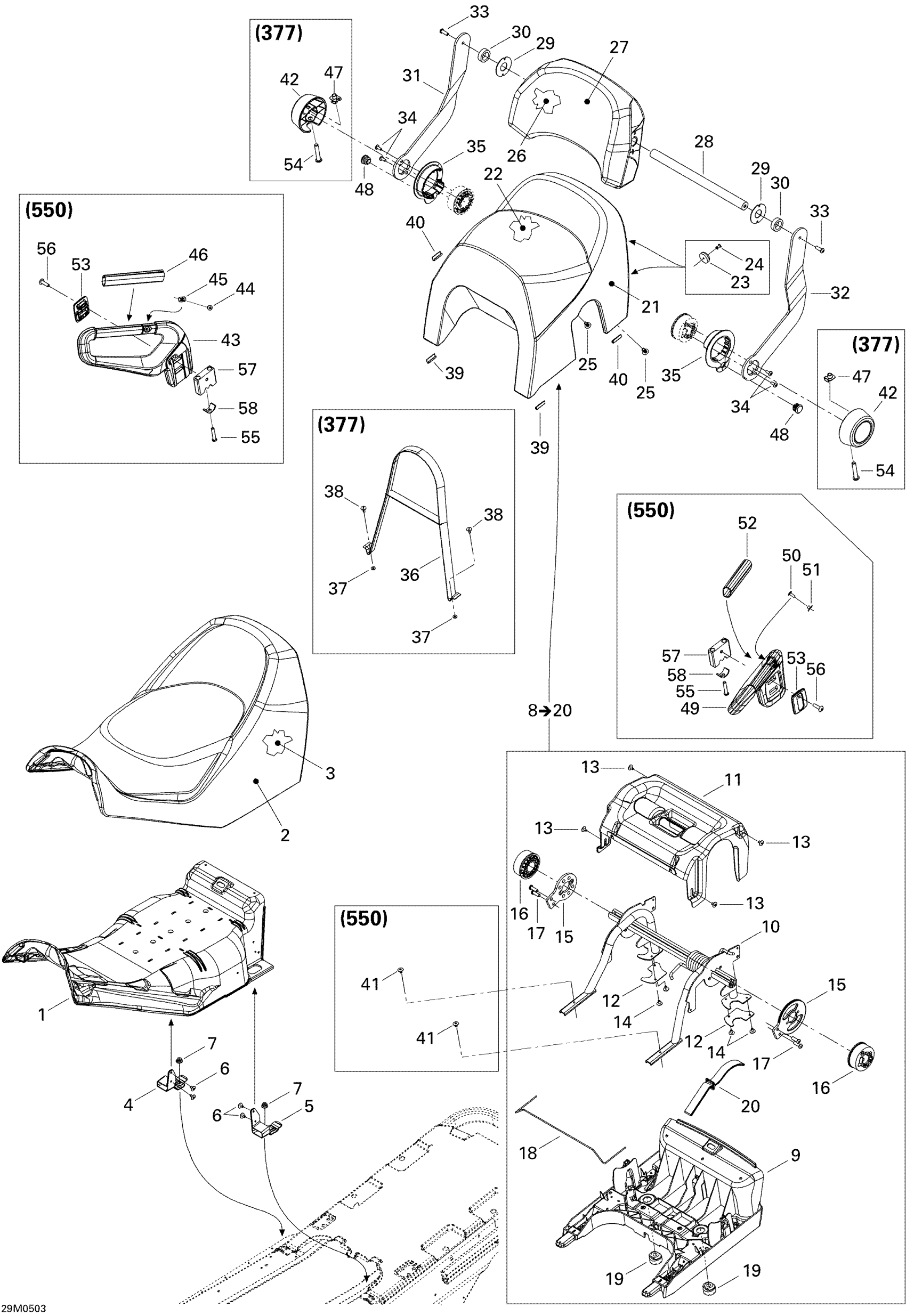

Ski-Doo GTX 550F, 2005 Seat 550F Diagram

#

Description
Price

1

FRONT SEAT BASE - Call your local BRP dealership

510004353

Unavailable

2

FRONT SEAT COVER, BLACK - Call your local BRP dealership

510004549

Unavailable

3

FRONT SEAT FOAM - Call your local BRP dealership

510004355

Unavailable

4

RH FIXATION PLATE, BLACK - Call your local BRP dealership

510004463

Unavailable

5

LH FIXATION PLATE, BLACK - Call your local BRP dealership

510004464

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

SEAT BASE - Call your local BRP dealership

510004433

Unavailable

10

SUPPORT - Call your local BRP dealership

510004569

Unavailable

11

Foam Support

510004423

Unavailable

12

WEAR PLATE - Call your local BRP dealership

510004500

Unavailable

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

14

Pop Rivet 3/16”

293150108

$1.23

15

LINK PLATE - Call your local BRP dealership

510004535

Unavailable

16

Spacer

510004536

Unavailable

17

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

$3.82

18

ANCHOR SPRING - Call your local BRP dealership

510004421

Unavailable

19

Bumper Rubber

708000760

Unavailable

20

BELT - Call your local BRP dealership

510004495

Unavailable

21

SEAT COVER, BLACK - Call your local BRP dealership

510004558

Unavailable

22

REAR SEAT FOAM - Call your local BRP dealership

510004358

Unavailable

23

Rubber Stopper

415018100

$2.35

24

Pop Rivet 1/8", Black

293150189

Unavailable

25

Black Dart

293730010

Unavailable

26

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

27

BACKREST COVER, BLACK - Call your local BRP dealership

510004559

Unavailable

28

Upper Backrest Axle

510004377

Unavailable

29

Washer

510004379

Unavailable

30

Rubber Shim

510004378

Unavailable

31

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

32

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

33

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

$3.82

34

Torx Truss Screw M8 X 16

250000746

$2.78

35

SPACER - Call your local BRP dealership

510004384

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

FRONT SEAT CORNER - Call your local BRP dealership

510004610

Unavailable

40

REAR SEAT CORNER - Call your local BRP dealership

510004611

Unavailable

41

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

42

Not Available As Spare Parts

XXX

Unavailable

43

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

44

Torx Truss Screw M6 X 16

250000721

Unavailable

45

Nut Welded, M6

293100003

Unavailable

46

Handle Grip

510004449

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Cap

517302716

$3.73

49

LH Handle

510005862

Unavailable

50

Torx Truss Screw M6 X 16

250000721

Unavailable

51

Nut Welded, M6

293100003

Unavailable

52

Handle Grip

510004449

Unavailable

53

Passenger Handle Trim

510006602

$11.71

54

Not Available As Spare Parts

XXX

Unavailable

55

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

$2.78

56

Hex Torx Truss M8 X30

250000745

Unavailable

57

HANDLE LINK - Call your local BRP dealership

510004530

Unavailable

58

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable
