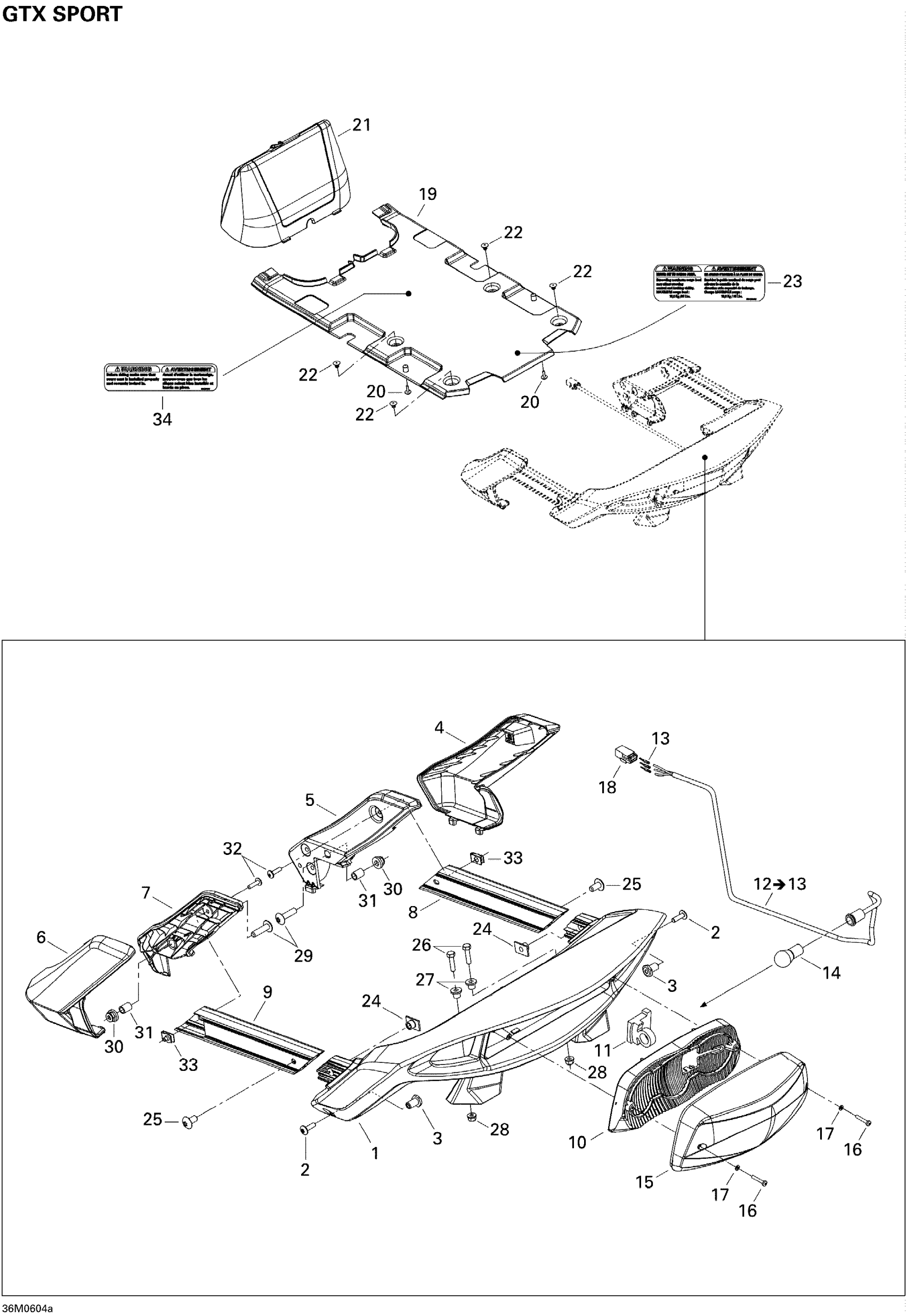

Ski-Doo GTX 500SS, 2006 Luggage Rack Sport Diagram
#
Description
Price
1
RACK - Call your local BRP dealership
511000317
Unavailable
2
Torx Screw M6 X 20
250000722
Unavailable
3
INSERT - Call your local BRP dealership
511000398
Unavailable
4
RH OUTSIDE ARM - Call your local BRP dealership
511000322
Unavailable
5
RH INSIDE ARM - Call your local BRP dealership
511000326
Unavailable
6
LH OUTSIDE ARM - Call your local BRP dealership
511000323
Unavailable
7
LH INSIDE ARM - Call your local BRP dealership
511000327
Unavailable
8
RH SIDE BAR - Call your local BRP dealership
511000321
Unavailable
9
LH SIDE BAR - Call your local BRP dealership
511000345
Unavailable
10
REFLECTOR - Call your local BRP dealership
510004442
Unavailable
11
BULB SUPPORT - Call your local BRP dealership
511000431
Unavailable
12
BULB SOCKET - Call your local BRP dealership | Includes 9 to 10
511000466
Unavailable
15
Lens
511000315
Unavailable
16
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership
209632580
Unavailable
17
Washer - Call your local BRP dealership
414516400
Unavailable
19
RADIATOR COVER - Call your local BRP dealership
511000440
Unavailable
20
Screw M4 X 16
250000725
Unavailable
21
Tank Cover
511000357
Unavailable
22
Pop Rivet 3/16"
293150103
Unavailable
23
WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership
516002960
Unavailable
24
THREAD INSERT - Call your local BRP dealership
511000341
Unavailable
26
Hex. Screw M6 X 25
207162544
Unavailable
27
FLANGED BUSHING - Call your local BRP dealership
511000340
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Hex Torx Truss M8 X30
250000745
Unavailable
30
Hex. Flange Elastic Nut M8
233281414
Unavailable
31
BUSHING - Call your local BRP dealership
511000325
Unavailable
32
Torx Screw M5 X 20
250000724
Unavailable
33
Panel Nut M5 X 0.8
250000958
Unavailable
34
CLENCHING DECAL - Call your local BRP dealership
516003035
Unavailable
