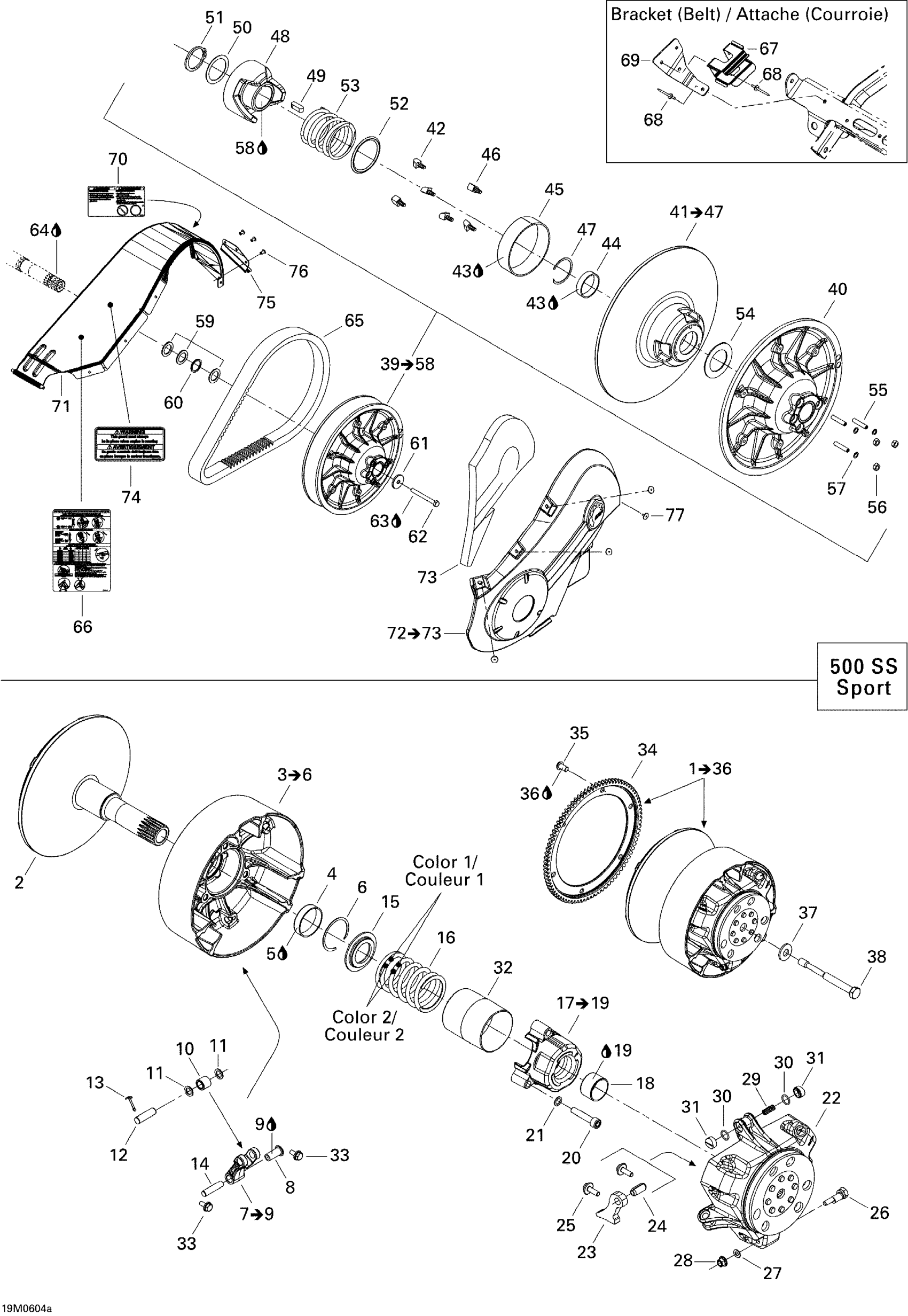

Ski-Doo GTX 500SS, 2006 Pulley System Sport Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417222758

$20.74

5

Loctite 609, 10 ml

413703100

$24.58

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$24.58

10

Roller

417222947

$19.97

11

Stopper Washer

417004302

$15.99

12

Pin

417004308

Unavailable

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

Spring, Violet/pink

414949500

$14.75

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

18

Bushing

417009204

$16.12

19

Loctite 609, 10 ml

413703100

$24.58

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

Unavailable

22

Governor Cup

417222213

Unavailable

23

Ramp 412

417222515

Unavailable

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$3.86

28

Hex. Flange Nut M6

233061414

Unavailable

29

Spring

417005700

Unavailable

30

O-Ring

732401030

$0.95

31

Slider Shoe This part replaces 420460045.

417223021

$6.09

32

Guard

417009205

$16.89

33

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

34

Ring Gear_Starter This part replaces 417223738.

417225070

Unavailable

35

Hex. Screw M8 X 16

236281684

Unavailable

36

Loctite 271, 10 ml

293800005

Unavailable

37

Spring Washer 14 mm

250200006

Unavailable

38

Drive Pulley Bolt

417120000

$63.82

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Fixed Flange

417126499

Unavailable

41

Sliding Flange Ass'y | Includes 41 to 47

417126763

Unavailable

42

Slider Shoe, Front

417126538

Unavailable

43

Loctite 609, 10 ml

413703100

$24.58

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Bushing

417126562

Unavailable

46

SLIDER SHOE, REAR - Call your local BRP dealership

417126539

Unavailable

47

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

48

Cam

417126747

Unavailable

49

Key

414820800

Unavailable

50

Washer

417126555

Unavailable

51

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

52

Abutment Swivel

417126771

Unavailable

53

SPRING, GREEN/GREEN - Call your local BRP dealership

417126801

Unavailable

54

Thrust Washer

504141900

Unavailable

55

Socket Set Screw M6 X 30

206263044

Unavailable

56

Hex. Nut M6

232061414

$0.44

57

WASHER - Call your local BRP dealership

420245370

Unavailable

58

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

59

Spacer

417300252

$5.17

59

Spacer

417300265

$2.12

59

Shim

504112000

$6.05

60

Spacer

504149100

$11.20

61

Strength Washer

517302322

$11.09

62

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

63

Loctite 243, 10 ml

293800060

$20.77

64

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

65

Drive Belt

417300586

$154.58

66

DECAL, SUSPENSION ADJUSTMENT - Call your local BRP dealership

516002616

Unavailable

67

Bracket

517281905

Unavailable

68

Pop Rivet 3/16"

390402200

$0.26

69

Bracket

417300282

Unavailable

70

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

71

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

72

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

73

Foam

417300246

Unavailable

74

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

75

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

76

Avex Rivet

390909200

Unavailable

77

Pop Rivet 3/16"

293150103

Unavailable
