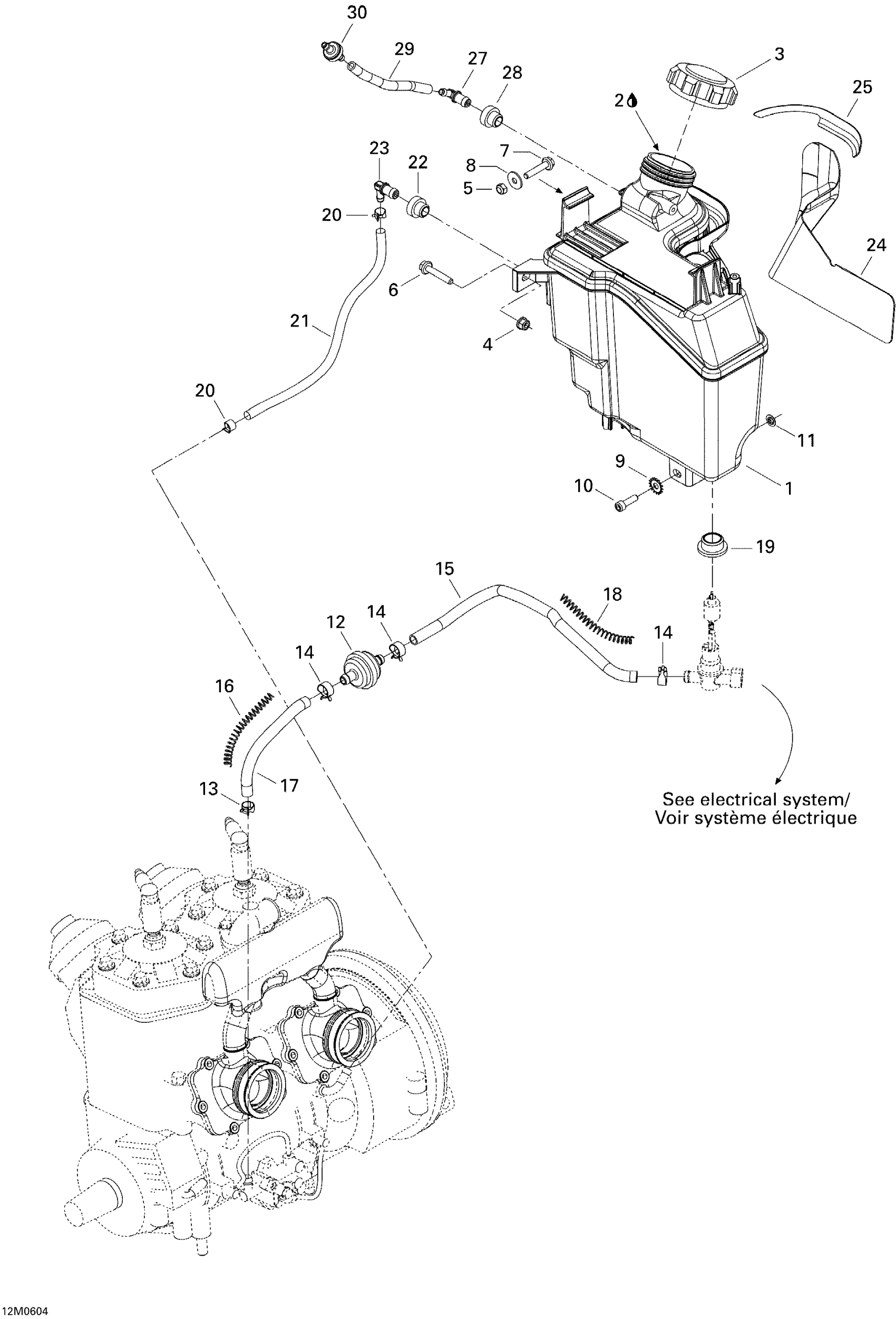

Ski-Doo GTX 500SS, 2006 Oil System Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

519000111

Unavailable

2

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

2

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

2

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

5

Elastic Stop Nut M6

232561414

Unavailable

6

Hex. Flange Screw M6 X 35

207663544

$0.74

7

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

8

Flat Washer

250200082

Unavailable

9

Lock Washer Serrated M6

250200041

Unavailable

10

Socket Head Screw M6 X 20

205062044

$1.07

11

Push Nut

732610072

Unavailable

12

Filter

414536500

$3.25

13

Spring Clamp

414420700

Unavailable

14

Spring Clamp

414415200

$0.83

15

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

16

SPRING - Call your local BRP dealership

519000064

Unavailable

17

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

18

SPRING - Call your local BRP dealership

519000065

Unavailable

19

Insulating Ring

570023000

Unavailable

20

Spring Clamp

414554800

$0.83

21

Polyurethane Hose 10000Mm Long

219704410

Unavailable

22

Grommet

513032908

$8.74

23

Male Connector

414580700

Unavailable

24

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

25

REFLECTIVE SHEET - Call your local BRP dealership

519000072

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Male Connector

414580700

Unavailable

28

Grommet

513032908

$8.74

29

Polyurethane Hose 10000Mm Long

219704410

Unavailable

30

Check Valve

275500398

Unavailable
