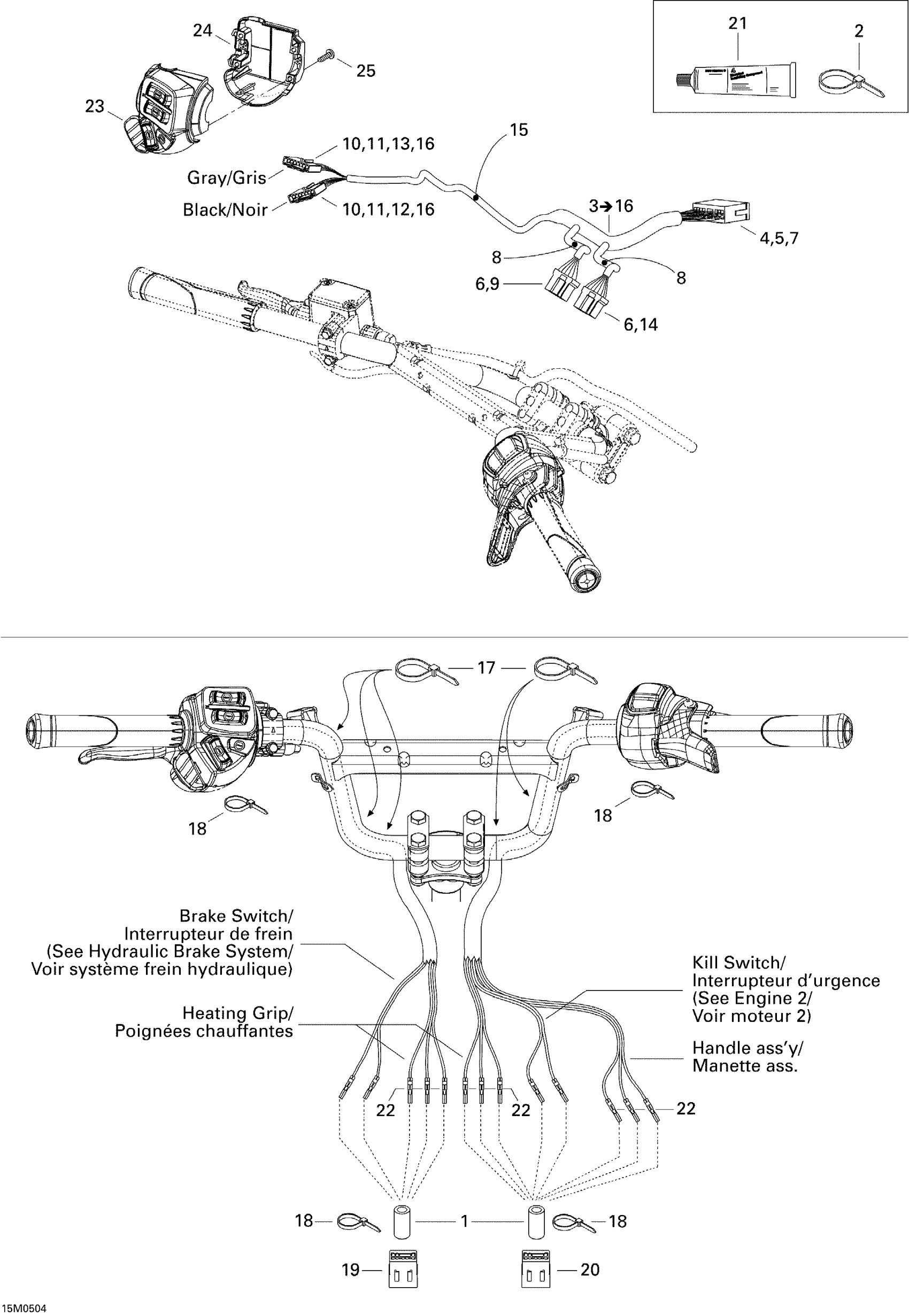

Ski-Doo GTX 500SS, 2005 Steering Wiring Harness Diagram

#

Description
Price

1

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

2

Tie Wrap 368 mm

293750008

$0.85

3

Steering Wiring Harness | Includes 3 to 16

515176228

Unavailable

4

Male Terminal

515175232

$1.49

5

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

6

Female Terminal

515175231

Unavailable

7

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

8

Tubing 10 MM 1000MM Long

219704407

Unavailable

9

Female Terminal Housing, 6 Circuits

515175543

$8.57

10

FEMALE TERMINAL - Call your local BRP dealership

515175808

$5.74

11

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

$7.65

12

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

$2.69

13

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

14

Female Terminal Housing, 8 Circuits

515175819

$7.46

15

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

16

Female Terminal

515175941

$2.48

17

Tie-Rap 180 mm

414115200

$0.09

18

Tie Wrap 142 mm

293750002

Unavailable

19

Male Terminal Housing, 6 Circuits

515175662

Unavailable

20

Male Terminal Housing, 8 Circuits

515175817

Unavailable

21

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

22

Male Terminal

515175232

$1.49

23

LH Switch Housing

515176062

Unavailable

24

Switch Housing Plate

515175926

Unavailable

25

Torx Screw #8-18

250000263

$1.02
