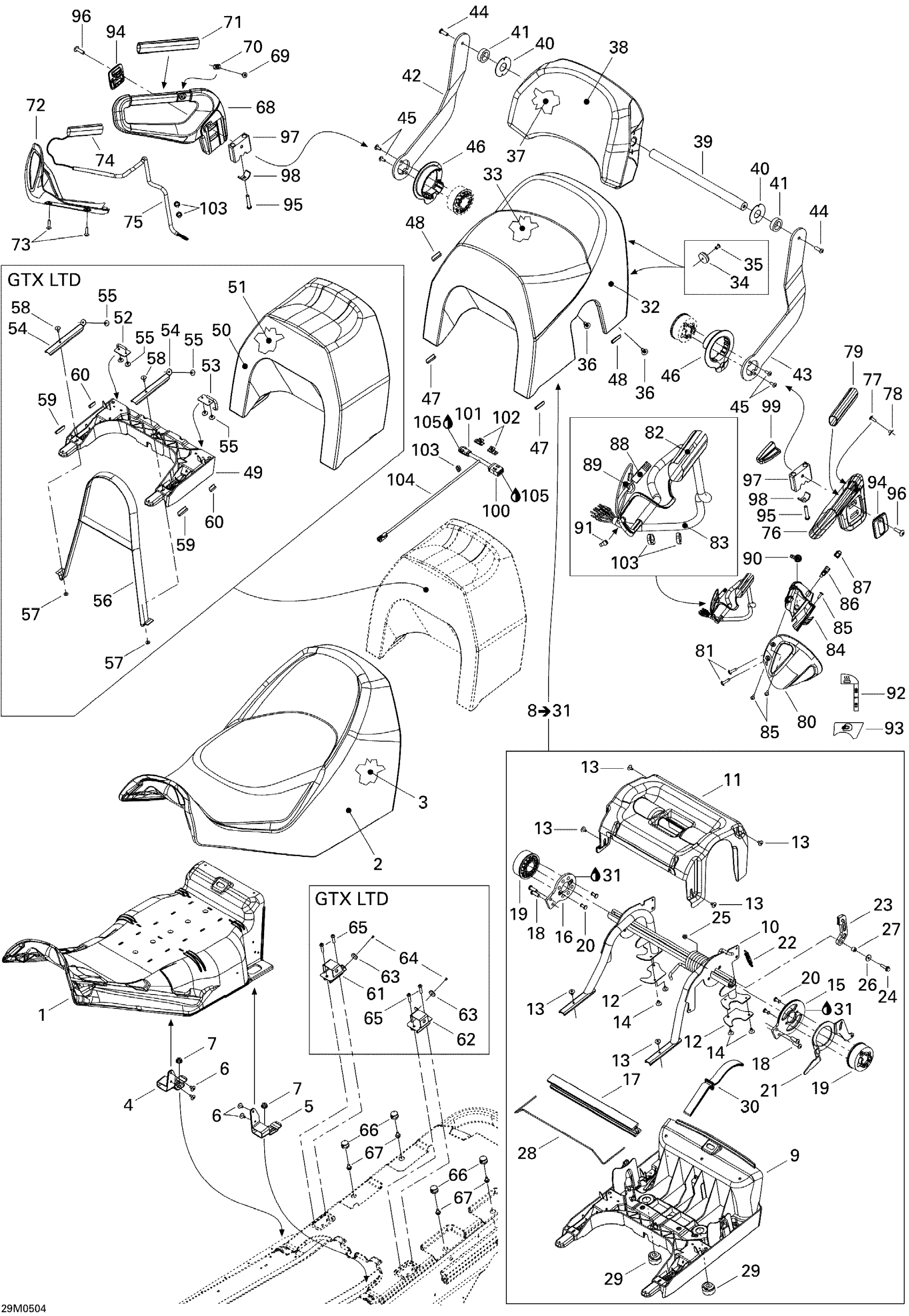

Ski-Doo GTX 500SS, 2005 Seat 500SS Diagram

#

Description
Price

1

FRONT SEAT BASE - Call your local BRP dealership

510004353

Unavailable

2

Deep Black, Front Seat Cover | GTX Sport, Black B-160

510004547

Unavailable

3

FRONT SEAT FOAM - Call your local BRP dealership

510004355

Unavailable

4

RH FIXATION PLATE, BLACK - Call your local BRP dealership

510004463

Unavailable

5

LH FIXATION PLATE, BLACK - Call your local BRP dealership

510004464

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

SEAT BASE - Call your local BRP dealership

510004433

Unavailable

10

SUPPORT - Call your local BRP dealership

510004381

Unavailable

11

Foam Support

510004423

Unavailable

12

WEAR PLATE - Call your local BRP dealership

510004500

Unavailable

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

14

Pop Rivet 3/16”

293150108

$1.23

15

Sprocket

510004391

$28.43

16

LINK PLATE - Call your local BRP dealership

510004393

Unavailable

17

LINK TUBE - Call your local BRP dealership

510005496

$204.99

18

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

$3.82

19

SPACER - Call your local BRP dealership

510005425

Unavailable

20

STEEL RIVET - Call your local BRP dealership

293150129

$6.45

21

HANDLE, BLACK - Call your local BRP dealership

510004385

$47.66

22

HANDLE SPRING - Call your local BRP dealership

510004395

Unavailable

23

Adjustment Pivot

510006338

$20.74

24

Hex. Flange Screw M6 X 25

207662544

Unavailable

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

26

Flat Washer

224061201

Unavailable

27

BUSHING - Call your local BRP dealership

510004425

$10.26

28

ANCHOR SPRING - Call your local BRP dealership

510004421

Unavailable

29

Bumper Rubber

708000760

Unavailable

30

BELT - Call your local BRP dealership

510004495

Unavailable

31

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

32

REAR SEAT COVER, BLACK B-160 - Call your local BRP dealership

510004555

Unavailable

33

REAR SEAT FOAM - Call your local BRP dealership

510004358

Unavailable

34

Rubber Stopper

415018100

$2.35

35

Pop Rivet 1/8", Black

293150189

Unavailable

36

Black Dart

293730010

Unavailable

37

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

38

Deep Black, Backrest Cover | GTX Sport, Black B-160

510004556

Unavailable

39

Upper Backrest Axle

510004377

Unavailable

40

Washer

510004379

Unavailable

41

Rubber Shim

510004378

Unavailable

42

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

43

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

44

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

$3.82

45

Torx Truss Screw M8 X 16

250000746

$2.78

46

SPACER - Call your local BRP dealership

510004384

Unavailable

47

FRONT SEAT CORNER - Call your local BRP dealership

510004610

Unavailable

48

REAR SEAT CORNER - Call your local BRP dealership

510004611

Unavailable

49

Not Available As Spare Parts

XXX

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

Not Available As Spare Parts

XXX

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

Not Available As Spare Parts

XXX

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable

59

Not Available As Spare Parts

XXX

Unavailable

60

Not Available As Spare Parts

XXX

Unavailable

61

Not Available As Spare Parts

XXX

Unavailable

62

Not Available As Spare Parts

XXX

Unavailable

63

Not Available As Spare Parts

XXX

Unavailable

64

Not Available As Spare Parts

XXX

Unavailable

65

Not Available As Spare Parts

XXX

Unavailable

66

SEAT STUD - Call your local BRP dealership

510004417

Unavailable

67

Flange Screw M6 X 10, Scotch Grip

207561044

Unavailable

68

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

69

Torx Truss Screw M6 X 16

250000721

Unavailable

70

Nut Welded, M6

293100003

Unavailable

71

Handle Grip

510004449

Unavailable

72

RH Deflector

510004415

$26.12

73

Screw 25MM

250000961

$2.38

74

Heater

515176393

$59.20

75

Was 515175506 Tubing

219704426

Unavailable

76

LH Handle

510005862

Unavailable

77

Torx Truss Screw M6 X 16

250000721

Unavailable

78

Nut Welded, M6

293100003

Unavailable

79

Handle Grip

510004449

Unavailable

80

LH Deflector

510004416

$26.12

81

Screw 25MM

250000961

$2.38

82

Heater

515176393

$59.20

83

Was 515175506 Tubing

219704426

Unavailable

84

Switch Housing

510004566

$11.94

85

Torx Screw K50 X 16

250000720

$1.39

86

Rocker Switch

510004413

Unavailable

87

Switch Protector

510004414

$7.37

88

LH Handle Harness

515176241

Unavailable

89

Not Available As Spare Parts

XXX

Unavailable

90

Not Available As Spare Parts

XXX

Unavailable

91

Tie-Rap 180 mm

414115200

$0.09

92

Handle Heater Decal

516002835

$10.35

93

Not Available As Spare Parts

XXX

Unavailable

94

Passenger Handle Trim

510006602

$11.71

95

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

$2.78

96

Hex Torx Truss M8 X30

250000745

Unavailable

97

HANDLE LINK - Call your local BRP dealership

510004530

Unavailable

98

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable

99

GRIP - Call your local BRP dealership

510004419

Unavailable

100

Male Terminal Housing, 8 Circuits

515175817

Unavailable

101

Male Housing, 3 Circuits

515175494

$15.35

102

Housing Support

515175283

$8.43

103

Tie-Rap 180 mm

414115200

$0.09

104

SEAT HARNESS - Call your local BRP dealership

515176170

Unavailable

105

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
