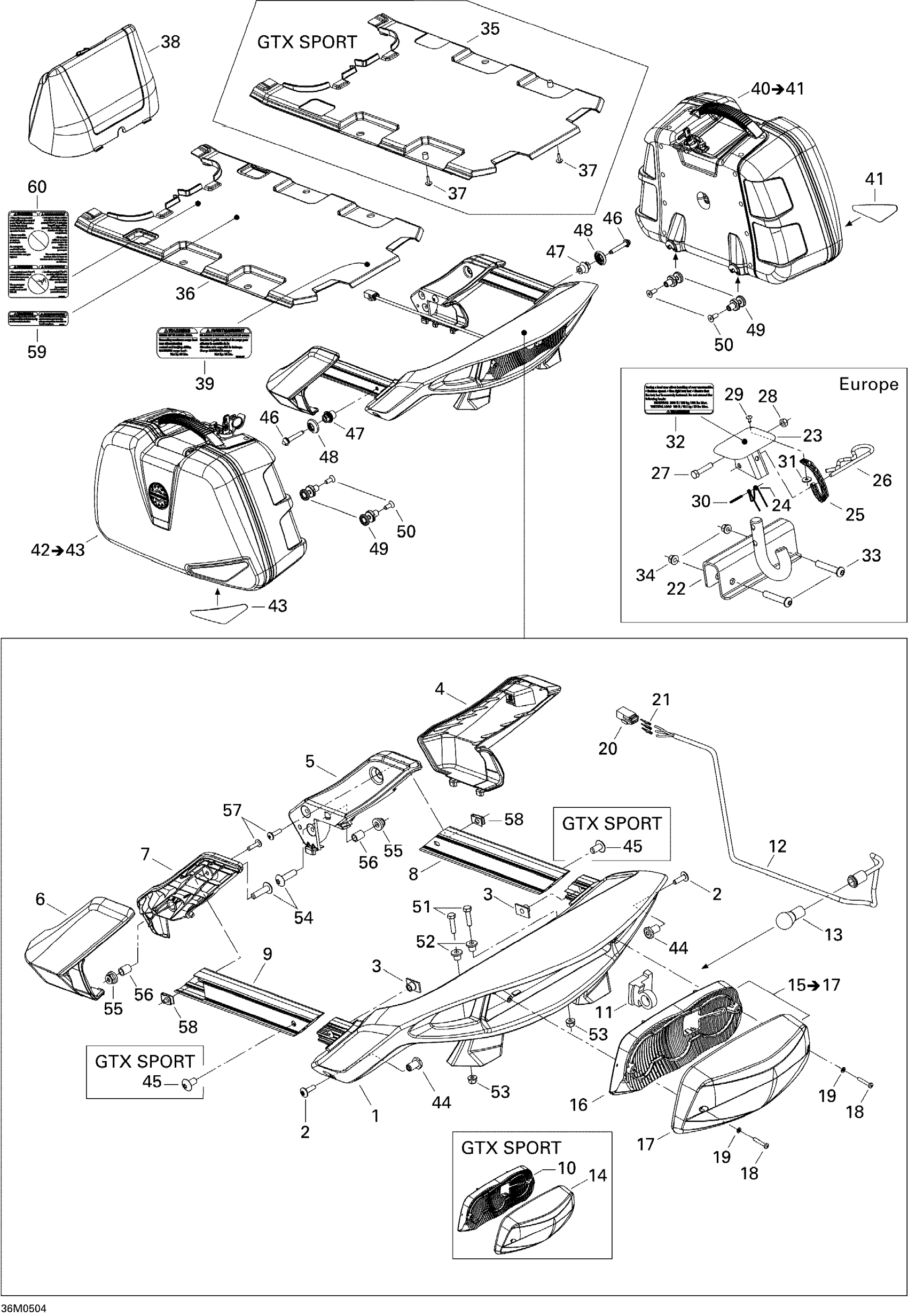

Ski-Doo GTX 500SS, 2005 Luggage Rack 500SS Diagram

#

Description
Price

1

RACK - Call your local BRP dealership

511000317

Unavailable

2

Torx Screw M6 X 20

250000722

Unavailable

3

THREAD INSERT - Call your local BRP dealership

511000341

Unavailable

4

RH OUTSIDE ARM - Call your local BRP dealership

511000322

Unavailable

5

RH INSIDE ARM - Call your local BRP dealership

511000326

Unavailable

6

LH OUTSIDE ARM - Call your local BRP dealership

511000323

Unavailable

7

LH INSIDE ARM - Call your local BRP dealership

511000327

Unavailable

8

RH SIDE BAR - Call your local BRP dealership

511000321

Unavailable

9

LH SIDE BAR - Call your local BRP dealership

511000345

Unavailable

10

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

11

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

12

Bulb Socket

511000428

Unavailable

13

Bulb

520000758

$7.49

14

Lens

511000315

Unavailable

15

Lens And Reflector Kit | LTD

861509300

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

19

Washer - Call your local BRP dealership

414516400

Unavailable

20

Male Housing, 3 Circuits

515175494

$15.35

21

Male Terminal

515175232

$1.49

22

HITCH, BLACK - Call your local BRP dealership | Europe

511000354

Unavailable

23

Hitch Protector | Europe

517152700

Unavailable

24

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

25

Chain | Europe

517152900

Unavailable

26

Hair Pin

114045200

Unavailable

27

Hex. Screw M6 X 30

207063044

Unavailable

28

Elastic Stop Nut M6

232561414

Unavailable

29

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

30

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

31

Flat Washer

391303100

Unavailable

32

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

33

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.23

34

Hex. Flange Elastic Nut M8

233281414

Unavailable

35

Radiator Cover

511000319

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Screw M4 X 16

250000725

Unavailable

38

Tank Cover

511000357

Unavailable

39

Warning Label, Maximum Cargo Load

516002666

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

INSERT - Call your local BRP dealership

511000398

Unavailable

45

Torx Truss Screw M8 X 16

250000746

$2.78

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Not Available As Spare Parts

XXX

Unavailable

49

Not Available As Spare Parts

XXX

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

51

Hex. Screw M6 X 25

207162544

Unavailable

52

FLANGED BUSHING - Call your local BRP dealership

511000340

Unavailable

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

54

Hex Torx Truss M8 X30

250000745

Unavailable

55

Hex. Flange Elastic Nut M8

233281414

Unavailable

56

BUSHING - Call your local BRP dealership

511000325

Unavailable

57

Torx Screw M5 X 20

250000724

Unavailable

58

Panel Nut M5 X 0.8

250000958

Unavailable

59

Warning Decal, Secure Lock

516002743

Unavailable

60

Not Available As Spare Part - Friction Washer

Unavailable
