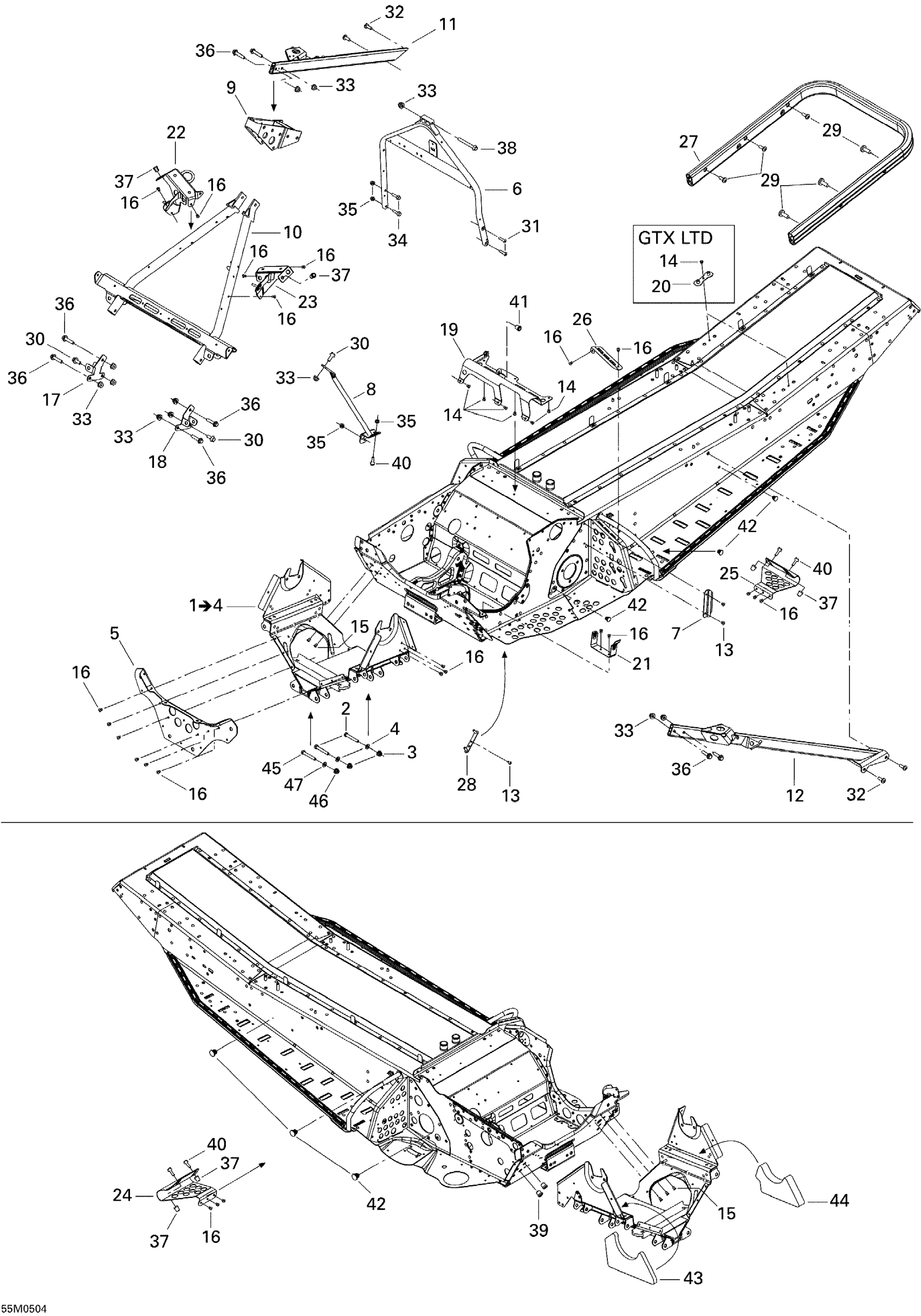

Ski-Doo GTX 500SS, 2005 Frame and Components 500SS Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

Unavailable

2

Hex. Screw M8 X 55

207085544

$1.62

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Flat Washer 8 mm

234081410

Unavailable

5

Front Plate

518324726

Unavailable

6

HANDLE SUPPORT - Call your local BRP dealership

518323979

Unavailable

7

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

8

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

9

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

10

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

11

RH MEMBER - Call your local BRP dealership

518324182

Unavailable

12

LH Member

518324183

Unavailable

13

Pop Rivet 3/16"

390402200

$0.26

14

Pop Rivet 3/16"

390402400

Unavailable

15

Avex Rivet

390909100

$0.29

16

Avex Rivet

390909200

Unavailable

17

RH SHOCK BRACKET - Call your local BRP dealership

518322461

$8.43

18

LH SHOCK BRACKET - Call your local BRP dealership

518322462

$8.43

19

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

22

RH Console Support

518323535

Unavailable

23

LH Console Support

518323536

Unavailable

24

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

25

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

26

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

27

Rear Bumper | Europe

518324401

Unavailable

27

Rear Bumper

518324655

Unavailable

28

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

29

Hex. Flange Screw M8 X 20

207682044

Unavailable

30

Hex. Flange Screw M8 X 20

207682044

Unavailable

31

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

32

Pan Head Torx Screw M8 X 12

250000887

$1.56

33

Hex. Flange Elastic Nut M8

233281414

Unavailable

34

Hex. Flange Screw M6 X 25

207662544

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

36

Hex. Flange Screw M8 X 35

207683544

$1.39

37

Insert

293450275

Unavailable

38

Hex. Flange Screw M8 X 70

207687044

Unavailable

39

Insert

293450166

Unavailable

40

Hex. Flange Screw M6 X 20

207662044

Unavailable

41

Threaded Insert M6 X 1.0

250100242

Unavailable

42

Panel Fastener

518321954

Unavailable

43

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

44

LH FRONT FOAM - Call your local BRP dealership

518323007

$8.68

45

Hex. Screw M8 X 55

207085544

$1.62

46

Hex. Flange Elastic Nut M8

233281414

Unavailable

47

Flat Washer 8 mm

234081410

Unavailable
