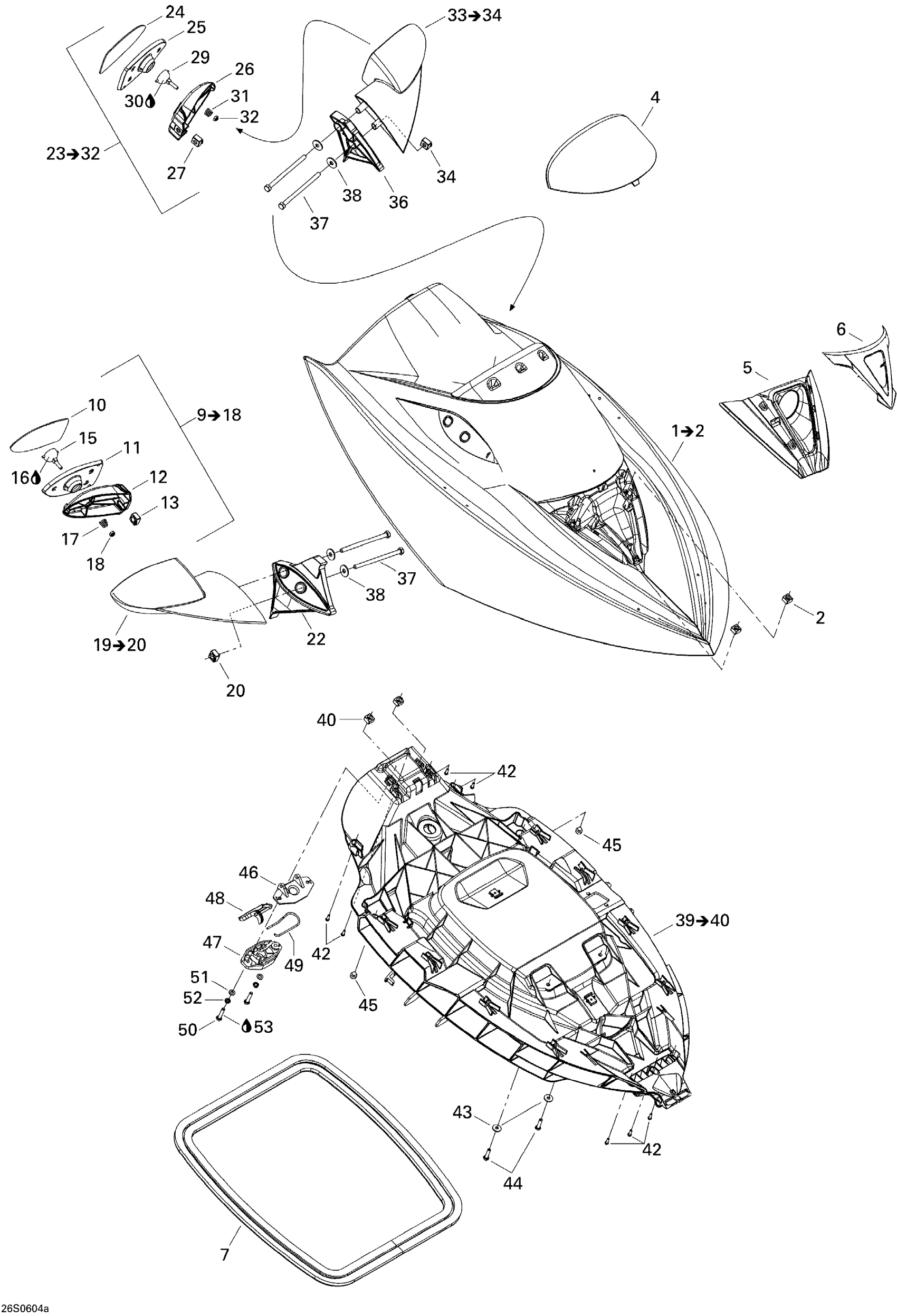

Sea-doo GTX 4-TEC, WAKE, 2006 Front Storage Compartment 1, WAKE Diagram

#

Description
Price

1

Lugage Cover | Includes 1 to 2, WAKE

269501451

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

Deflector, Smoke

269501485

Unavailable

5

Lower Grille

269501520

Unavailable

6

Upper Grille

269500942

Unavailable

7

Was 293200017 Neoprene Seal

219704365

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

RH Mirror Ass'y | Includes 1 to 9

269501393

Unavailable

10

RH MIRROR - Call your local BRP dealership

269501292

Unavailable

11

Frame Mirror

269500697

Unavailable

12

Housing Support | WAKE

269500807

Unavailable

13

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Mirror Spring

269500453

Unavailable

18

Hex. Elastic Stop Nut M6

232561600

$0.92

19

RH Mirror Shell | Includes 19 to 20, WAKE

269501456

Unavailable

20

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

RH Spacer

269500950

Unavailable

23

LH Mirror Ass'y | Includes 12 to 20

269501394

Unavailable

24

LH MIRROR - Call your local BRP dealership

269501294

Unavailable

25

Frame Mirror

269500697

Unavailable

26

Housing Support | WAKE

269500807

Unavailable

27

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

30

Synthetic Grease, 400 G

293550010

Unavailable

31

Mirror Spring

269500453

Unavailable

32

Hex. Elastic Stop Nut M6

232561600

$0.92

33

LH Mirror Shell | Includes 33 to 34, WAKE

269501459

Unavailable

34

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

LH Spacer

269500951

Unavailable

37

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

38

Flat Washer 8 mm, Stainless

234082600

Unavailable

39

LOWER STORAGE COVER ASS'Y - Call your local BRP dealership | Includes 39 to 40

269501413

Unavailable

40

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Hex. Flange Screw K40 X 13

241141360

Unavailable

43

Flat Washer M6, Stainless

234062600

Unavailable

44

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

Unavailable

45

Rubber Bumper

293830005

$5.33

46

Latch Ass'y

269700109

Unavailable

47

Latch Ass'y

269700109

Unavailable

48

Latch Ass'y

269700109

Unavailable

49

Latch Spring

269700017

$7.27

50

Hex. Screw M6 X 30

207063060

Unavailable

51

Stainless Flat Washer M6

234061600

$0.25

52

Lock Washer Helical M6

234161601

Unavailable

53

Loctite 243, 10 ml

293800060

$20.77
