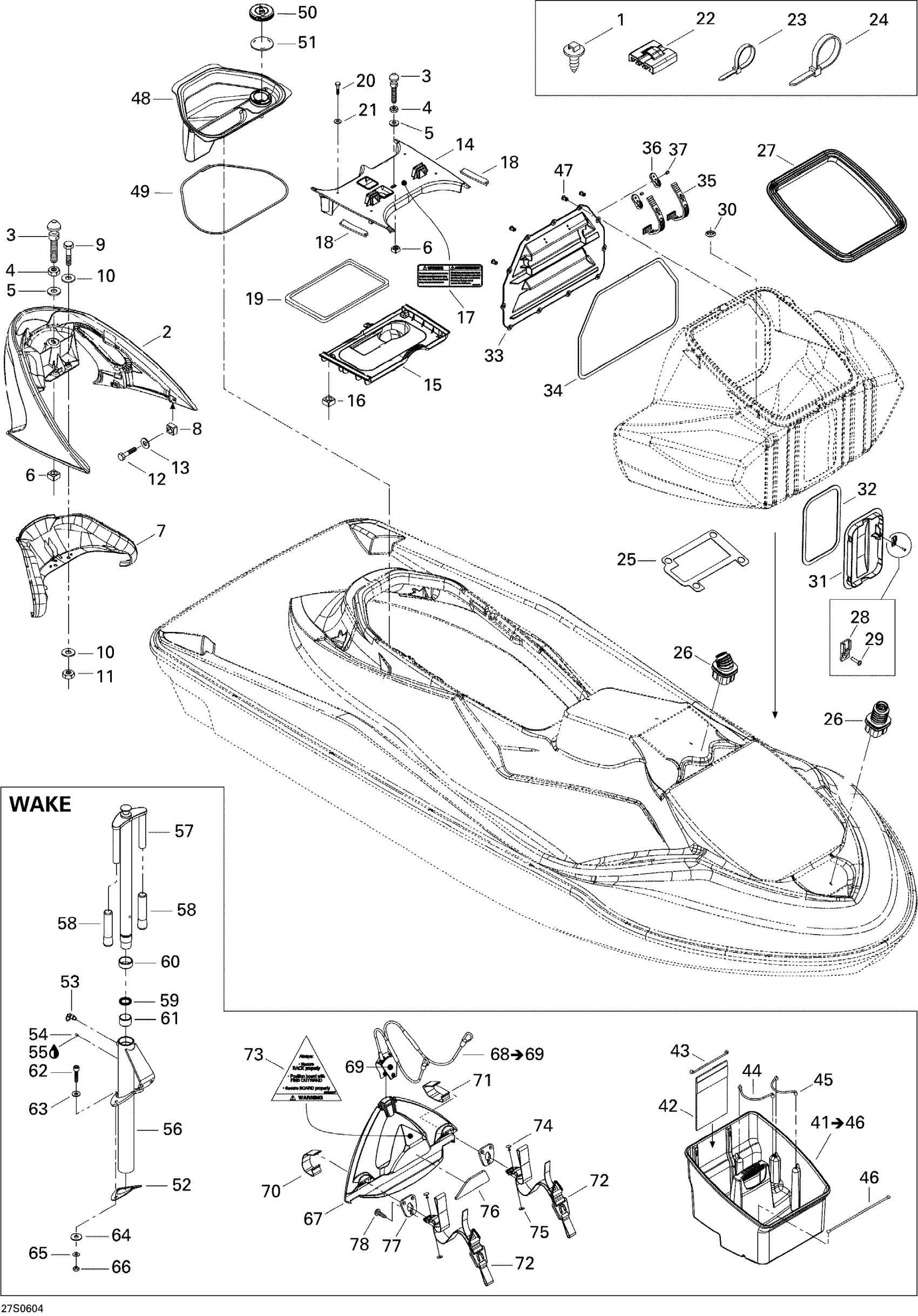

Sea-doo GTX 4-TEC, WAKE, 2006 Body, Front View WAKE Diagram

#

Description
Price

1

Mount Dart

293730040

$0.99

2

GRAB HANDLE, BLACK - Call your local BRP dealership

269000722

Unavailable

3

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

4

Hex. Jam Nut M10

232100600

$2.12

5

Flat Washer 10 mm, Stainless

234002600

$2.12

6

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

7

HANDLE COVER, BLACK - Call your local BRP dealership

269000749

Unavailable

8

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

9

Hex. Screw M8 X 45

207084560

$3.18

10

Stainless, Flat Washer 8 mm

234081600

$0.52

11

Hex. Elastic Nut M8 Brass

232581200

$1.48

12

Hex. Screw M6 X 25

207162560

$1.40

13

Flat Washer M6, Stainless

234062600

$0.73

14

UPPER BRIDGE, BLACK - Call your local BRP dealership

291002136

Unavailable

15

Lower Bridge, Black

291002138

Unavailable

16

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

17

WARNING DECAL, SECURITY - Call your local BRP dealership

219902643

Unavailable

18

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

19

GASKET - Call your local BRP dealership

293200090

Unavailable

20

Hex. Screw M6 X 75

207167560

Unavailable

21

Flat Washer M6, Stainless

234062600

$0.73

22

Tie-Rap Mount

293750025

$0.99

23

Tie-Rap 180 mm

414115200

$0.10

24

Tie Wrap 368 mm

293750008

$0.97

25

GASKET - Call your local BRP dealership

293250171

Unavailable

26

GROMMET - Call your local BRP dealership

293720042

Unavailable

27

Cover Trim

269501234

Unavailable

28

Clip

270000141

$9.57

29

Flange Screw K40 X 20

241642060

$1.06

30

Black Plug

291000279

$6.88

31

Front Door

291002416

Unavailable

32

Gasket, Neoprene 2000Mm Long

219704476

$14.51

33

Rear Door

291001743

Unavailable

34

Gasket, Neoprene 2000Mm Long

219704476

$14.51

35

Strap

269502417

$16.39

36

Hook

269500521

Unavailable

37

Avdel Rivet

293150027

$2.30

41

Removable Tray | Includes 40 to 45

269501478

$104.45

42

Storage Pocket

269501442

Unavailable

43

STRAP - Call your local BRP dealership

269501175

Unavailable

44

STRAP - Call your local BRP dealership

269501174

Unavailable

45

STRAP - Call your local BRP dealership

269501175

Unavailable

46

STRAP - Call your local BRP dealership

269501176

Unavailable

47

Tuflok Plastic Rivet

293150230

$1.39

48

Rear Tray

269501036

Unavailable

49

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

50

COVER - Call your local BRP dealership

269000788

Unavailable

51

COVER SEAL - Call your local BRP dealership

269000810

Unavailable

52

Seal

293250151

$9.64

53

RETRACTABLE SPRING PIN - Call your local BRP dealership | WAKE

291002276

Unavailable

54

SOCKET SET SCREW M6 X 8 - Call your local BRP dealership | WAKE

206560860

Unavailable

55

Loctite 243, 10 ml

293800060

$21.49

56

Support | WAKE

291001921

Unavailable

57

Ski Pole | WAKE

291001903

Unavailable

58

Grip | WAKE This part replaces M5340464.

506152483

$11.31

59

X-RING - Call your local BRP dealership | WAKE

293300118

Unavailable

60

Upper Sleeve | WAKE

291002350

Unavailable

61

Lower Sleeve | WAKE

291001941

Unavailable

62

Socket Head Screw M8 X 40

205484060

$3.88

63

Stainless, Flat Washer 8 mm

234081600

$0.52

64

Rubber Washer

293830037

$2.68

65

Flat Washer 8 mm, Stainless

250200175

$1.48

66

Hex. Elastic Nut M8 Brass

232581200

$1.48

67

Board Support

291002256

Unavailable

68

ELASTIC ROPE ASS'Y - Call your local BRP dealership | Includes 59 to 60

291002026

Unavailable

69

ROPE CAP - Call your local BRP dealership

291002025

Unavailable

70

LH Bracket Support

291002027

Unavailable

71

RH BRACKET SUPPORT - Call your local BRP dealership

291002028

Unavailable

72

STRAP ASS'Y - Call your local BRP dealership

291002029

Unavailable

73

Warning Decal, English, Secure Board

219902347

Unavailable

74

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

75

Washer

517124300

$0.18

76

GASKET - Call your local BRP dealership

293250149

Unavailable

77

BOARD RACK - Call your local BRP dealership

291002050

Unavailable

78

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable
