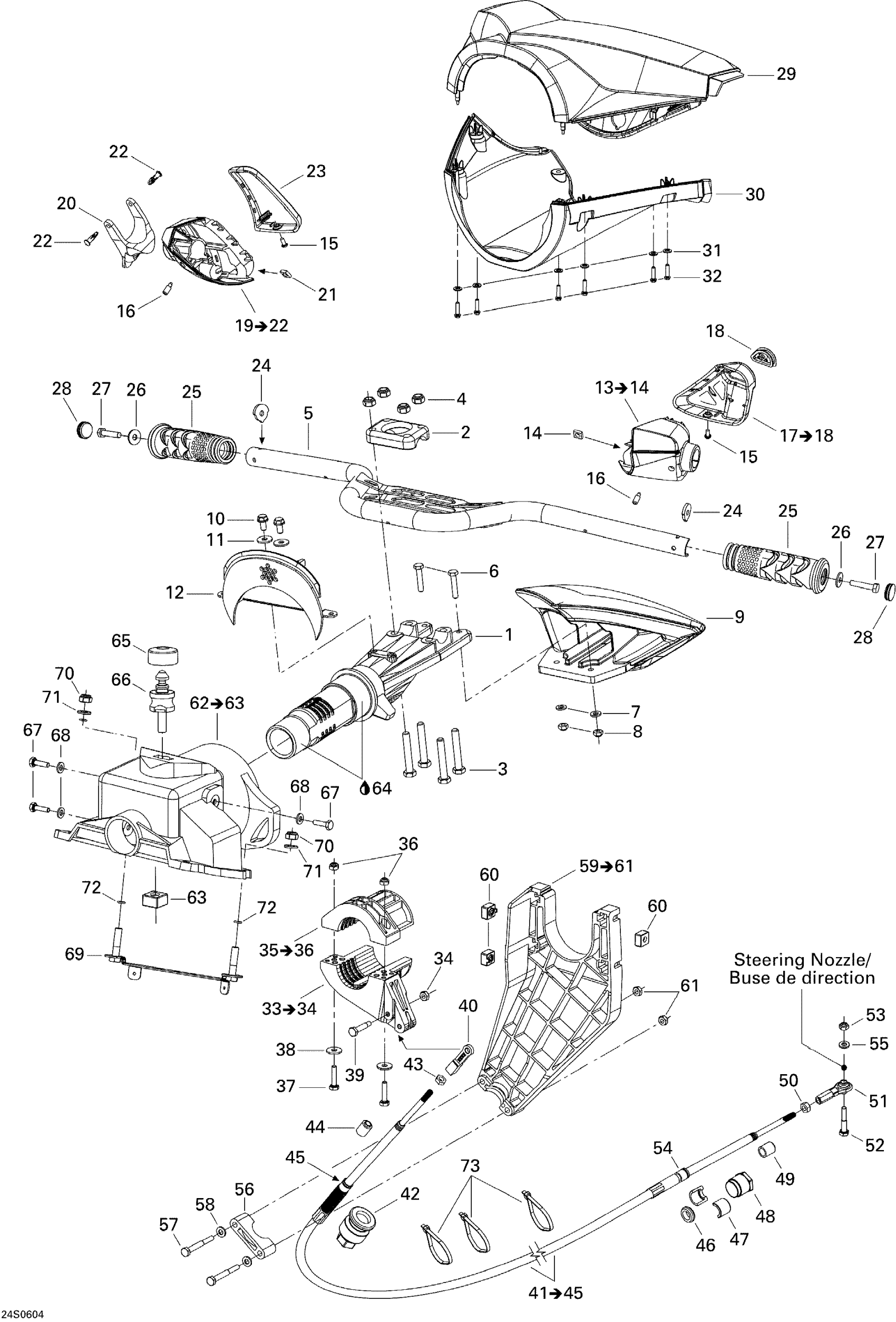

Sea-doo GTX 4-TEC, WAKE, 2006 Steering System WAKE Diagram

#

Description
Price

1

Steering Stem

277000562400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

4

Hex. Elastic Nut M8 Brass

232581200

$1.29

5

Handlebar

277001460

Unavailable

6

Hex. Screw M6 X 30

207063060

Unavailable

7

Stainless Flat Washer M6

234061600

$0.25

8

Elastic Stop Nut M6, Brass

232561200

Unavailable

9

Handle Pad | WAKE

277001434

Unavailable

10

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

11

Flat Washer M6, Stainless

234062600

Unavailable

12

PLATE - Call your local BRP dealership

277000549

Unavailable

13

HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9

277001481

Unavailable

14

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

15

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

16

Socket Head Screw M6 X 16

250000036

Unavailable

17

HOUSING COVER - Call your local BRP dealership | Includes 13 to 14

277001447

Unavailable

18

Stop Knob

278001713

Unavailable

19

THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19

277001483

Unavailable

20

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

21

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

22

PIN - Call your local BRP dealership

277000381

Unavailable

23

HOUSING COVER - Call your local BRP dealership

277001355

Unavailable

24

Insert Grip Handle

277001863

Unavailable

25

Handle Grip, Slate Grey

277001336

Unavailable

26

Flat Washer M6, Stainless

234062600

Unavailable

27

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

28

Black, Cap

277000203

Unavailable

29

UPPER STEERING COVER, BLACK - Call your local BRP dealership

277000952

Unavailable

30

LOWER STEERING COVER, BLACK - Call your local BRP dealership

277001145

Unavailable

31

Flat Washer M5, Stainless

234051600

$0.64

32

Hex. Flange Screw K40 X 16

241141660

Unavailable

33

STEERING STEM ARM - Call your local BRP dealership | Includes 33 to 34

277001472

Unavailable

34

Hex. Elastic Stop Nut M6

232561600

$0.92

35

Arm Thrust

277001473

Unavailable

36

Hex. Elastic Stop Nut M6

232561600

$0.92

37

Hex. Screw M6 X 25

207162560

Unavailable

38

Flat Washer M6, Stainless

234062600

Unavailable

39

Hex. Screw M6 X 30

211000081

Unavailable

40

Ball Joint

277001180

Unavailable

41

Steering Cable Ass'y | Includes 540 TO 540d

277001578

Unavailable

42

Ajustment Knob

277000782

Unavailable

43

Hex. Nut 1/4"-28

211100056

Unavailable

44

Wiper Rod

277001582

Unavailable

45

End Piece

277001583

Unavailable

46

Rubber Washer

293830063

Unavailable

47

Half Ring

277001527

Unavailable

48

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

49

Wiper Rod

277001582

Unavailable

50

Hex. Nut 1/4"-28

211100056

Unavailable

51

Ball Joint

277000775

Unavailable

52

Hex. Screw M6 X 35

207063560

Unavailable

53

Elastic Stop Nut M6, Brass

232561200

Unavailable

54

End Piece

277001583

Unavailable

55

Stainless Flat Washer M6

234061600

$0.25

56

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

57

Hex. Screw M6 X 50

207065060

Unavailable

58

Stainless Flat Washer M6

234061600

$0.25

59

CABLE SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001470

Unavailable

60

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

61

Hex. Elastic Stop Nut M6

232561600

$0.92

62

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

63

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

64

Synthetic Grease, 400 G

293550010

Unavailable

65

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

66

Latch Stud

291002147

Unavailable

67

Hex. Forming Screw M6 X 20

207162060

Unavailable

68

Stainless Flat Washer M6

234061600

$0.25

69

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

70

Hex. Elastic Nut M8 Brass

232581200

$1.29

71

Stainless, Flat Washer 8 mm

234081600

Unavailable

72

O-Ring

293300123

$1.00

73

Tie Wrap 368 mm

293750008

$0.85
