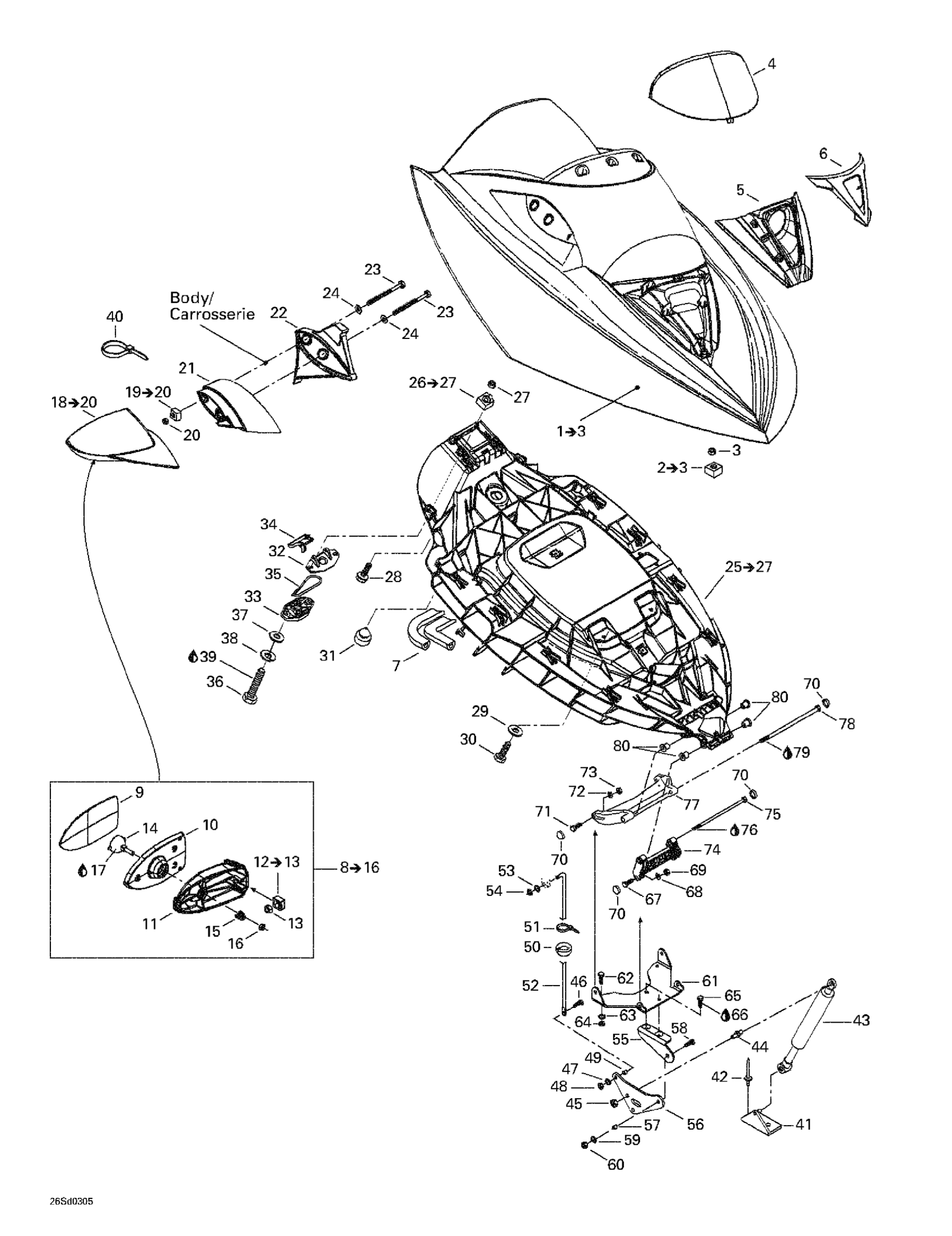

Sea-doo GTX 4-TEC Wake, 2003 Front Cover Diagram

#

Description
Price

1

Upper Storage Cover | Includes 1 - 3. AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.

269501152

Unavailable

Upper Storage Cover | BLUE (B-544) GTX 4-TEC 6125/6126.

269501138

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

3

Hex. Nut M6

232061600

$1.04

4

Deflector, Amber | Viper Red, B-267

269500943

Unavailable

5

Lower Grille

269500994

Unavailable

6

Upper Grille

269500942

Unavailable

7

Was 293200017 Neoprene Seal

219704365

$135.79

8

RH Mirror Ass’Y | Includes Items 19 to 28 / LE

269500685

Unavailable

LH Mirror Ass'y | Includes Items 19 to 28 / LE

269500688

Unavailable

9

RH Mirror

269500687

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

10

Frame Mirror

269500697

Unavailable

11

Housing Support | WAKE

269500807

Unavailable

12

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

13

Hex. Elastic Nut M8

232581600

$1.43

14

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

15

Mirror Spring

269500453

$9.15

16

Hex. Elastic Stop Nut M6

232561600

$1.06

17

Synthetic Grease, 400 G

293550010

Unavailable

18

RH Mirror Shell | Includes 18 - 20. AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.

269501042

Unavailable

RH Mirror Shell | BLUE (B-544) GTX 4-TEC 6125/6126.

269500893

Unavailable

18

LH mirror shell | AUTOMNE RED (B-549)

269501043

Unavailable

18

LH mirror shell | BLUE (B-544)

269500895

Unavailable

19

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

20

Hex. Elastic Nut M8

232581600

$1.43

21

RH Mirror Support | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.

269501044

Unavailable

RH Mirror Support | BLUE (B-544) GTX 4-TEC 6125/6126.

269500897

Unavailable

LH Mirror Support | AUTOMNE RED (B-549)

269501045

Unavailable

LH Mirror Support | BLUE (B-544)

269500899

Unavailable

22

RH Spacer

269500950

Unavailable

LH Spacer

269500951

Unavailable

23

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

24

Flat Washer 8 mm, Stainless

234082600

$2.27

25

Lower Storage Cover Ass'y | Includes 25 to 27

269500952

Unavailable

26

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

27

Hex. Nut M6

232061600

$1.04

28

Hex. Flange Screw K40 X 13

241141360

$0.64

29

Flat Washer M6, Stainless

234062600

$0.73

30

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.40

31

Rubber Bumper

293830005

$6.12

32

Latch Ass'y

269700109

$23.10

33

Latch Ass'y

269700109

$23.10

34

Latch Ass'y

269700109

$23.10

35

Latch Spring

269700017

$8.34

36

Hex. Screw M6 X 30

207063060

$1.73

37

Stainless Flat Washer M6

234061600

$0.28

38

Lock Washer Helical M6

234161601

$1.06

39

Loctite 243, 10 ml

293800060

$21.49

40

Tie Wrap 368 mm

293750008

$0.97

41

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

42

Avdel Rivet 3/16"

293150037

$0.54

43

Gas Shock Ass'y

269501625

$69.37

44

Ball Head Stud

250300016

$13.42

45

Hex. Elastic Nut M8

232581600

$1.43

46

Hex. Screw M4 X 16 | Europe

207141660

$1.40

47

Flat Washer 4 mm, Stainless

234041600

$1.04

48

Elastic Stop Nut M4

232541600

$1.06

49

SPACER - Call your local BRP dealership

269501130

Unavailable

50

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

51

Tie-Rap 180 mm

414115200

$0.10

52

ROD - Call your local BRP dealership

269500842

Unavailable

53

Stainless Flat Washer M6

234061600

$0.28

54

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

55

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

56

LEVER - Call your local BRP dealership

269501576

Unavailable

57

SPACER - Call your local BRP dealership

269501172

Unavailable

58

Hex. Forming Screw M6 X 20

207162060

$1.18

59

Flat Washer M6, Stainless

234062600

$0.73

60

Hex. Elastic Stop Nut M6

232561600

$1.06

61

Pivot Support

269500934

Unavailable

62

Hex. Forming Screw M6 X 20

207162060

$1.18

63

Flat Washer M6, Stainless

234062600

$0.73

64

Hex. Elastic Stop Nut M6

232561600

$1.06

65

Hex. Forming Screw M6 X 20

207162060

$1.18

66

Loctite 243, 10 ml

293800060

$21.49

67

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

68

Stainless Flat Washer M6

234061600

$0.28

69

Hex. Elastic Stop Nut M6

232561600

$1.06

70

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

71

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

72

Stainless Flat Washer M6

234061600

$0.28

73

Hex. Elastic Stop Nut M6

232561600

$1.06

74

FRONT ARM - Call your local BRP dealership

269501482

$17.88

75

Hex. Screw M6 X 100

230060060

$6.99

76

Loctite 243, 10 ml

293800060

$21.49

77

REAR ARM - Call your local BRP dealership

269501481

Unavailable

78

Hex. Screw M6 X 150

230065060

$9.40

79

Loctite 271, 10 ml

293800005

$23.85

80

Sleeve

269500706

$4.30
