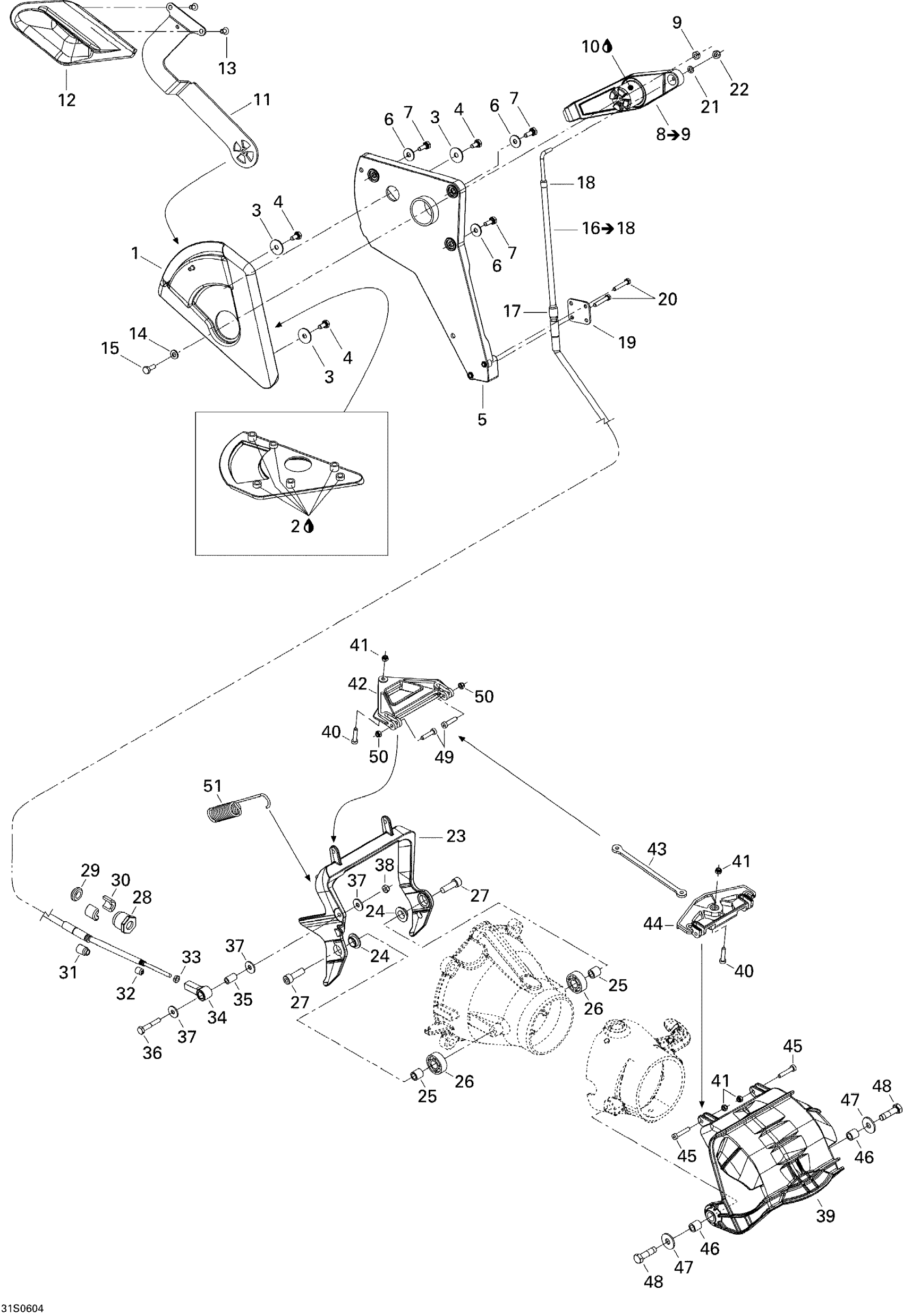

Sea-doo GTX 4-TEC, STD, 2006 Reverse STD Diagram

#

Description
Price

1

REVERSE HANDLE HOUSING - Call your local BRP dealership

268000009

Unavailable

2

Silicone Sealant 51388, 300 ml

296000309

Unavailable

3

Flat Washer M6.6 X 22

250200022

Unavailable

4

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

5

REVERSE CABLE SUPPORT - Call your local BRP dealership

268000010

Unavailable

6

Flat Washer M6, Stainless

234062600

Unavailable

7

Hex. Screw M6 X 16, Scotch Grip

207361660

Unavailable

8

Lever Ass.

271000986

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

Synthetic Grease, 400 G

293550010

Unavailable

11

REVERSE HANDLE LEVER - Call your local BRP dealership | GTS PRO

268000022

Unavailable

12

Reverse Handle, Slate Gray

271001510

Unavailable

13

Phillips Screw M5 x 12

250000319

Unavailable

14

Stainless Flat Washer M6

234061600

$0.25

15

Hex. Screw M6 X 16

207161660

Unavailable

16

Reverse Cable | Includes 16 to 18

268000030

Unavailable

17

Boot, Large

277000473

Unavailable

18

Boot, Small

277000466

Unavailable

19

BRACKET - Call your local BRP dealership

277001058

Unavailable

20

Hex. Flange Screw M5 X 30

207153060

Unavailable

21

Flat Washer M5, Stainless

234051600

$0.64

22

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

23

ARM BLACK - Call your local BRP dealership

271001012

Unavailable

24

Venturi Bushing

271000321

Unavailable

25

Spacer

271001039

Unavailable

26

BUSHING - Call your local BRP dealership | GTS PRO

293900038

Unavailable

27

PIVOT SCREW M8 X 25 - Call your local BRP dealership

250000026

Unavailable

28

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

29

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

30

Half Ring

277000055

Unavailable

31

Boot, Large

277000473

Unavailable

32

Boot, Small

277000466

Unavailable

33

Hex. Nut

212100005

Unavailable

34

Joint

277001204

Unavailable

35

Spacer

271001020

Unavailable

36

Hex. Screw M6 X 35

207063560

Unavailable

37

Flat Washer M6, Stainless

234062600

Unavailable

38

Elastic Stop Nut M6, Brass

232561200

Unavailable

39

Reverse Gate

268000028

Unavailable

40

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

41

Elastic Stop Nut 5 mm

232551200

Unavailable

42

TRIANGLE - Call your local BRP dealership

268000013

Unavailable

43

CONNECTOR ROD - Call your local BRP dealership

271001018

Unavailable

44

ROD PIVOT - Call your local BRP dealership

268000014

Unavailable

45

SCREW PIVOT - Call your local BRP dealership

250000023

Unavailable

46

Spacer

271001039

Unavailable

47

Flat Washer 8 mm, Stainless

234082600

Unavailable

48

Hex. Screw M8 X 30, Scotch Grip

207383060

Unavailable

49

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

50

Elastic Stop Nut 5 mm

232551200

Unavailable

51

Spring

271001328

Unavailable
