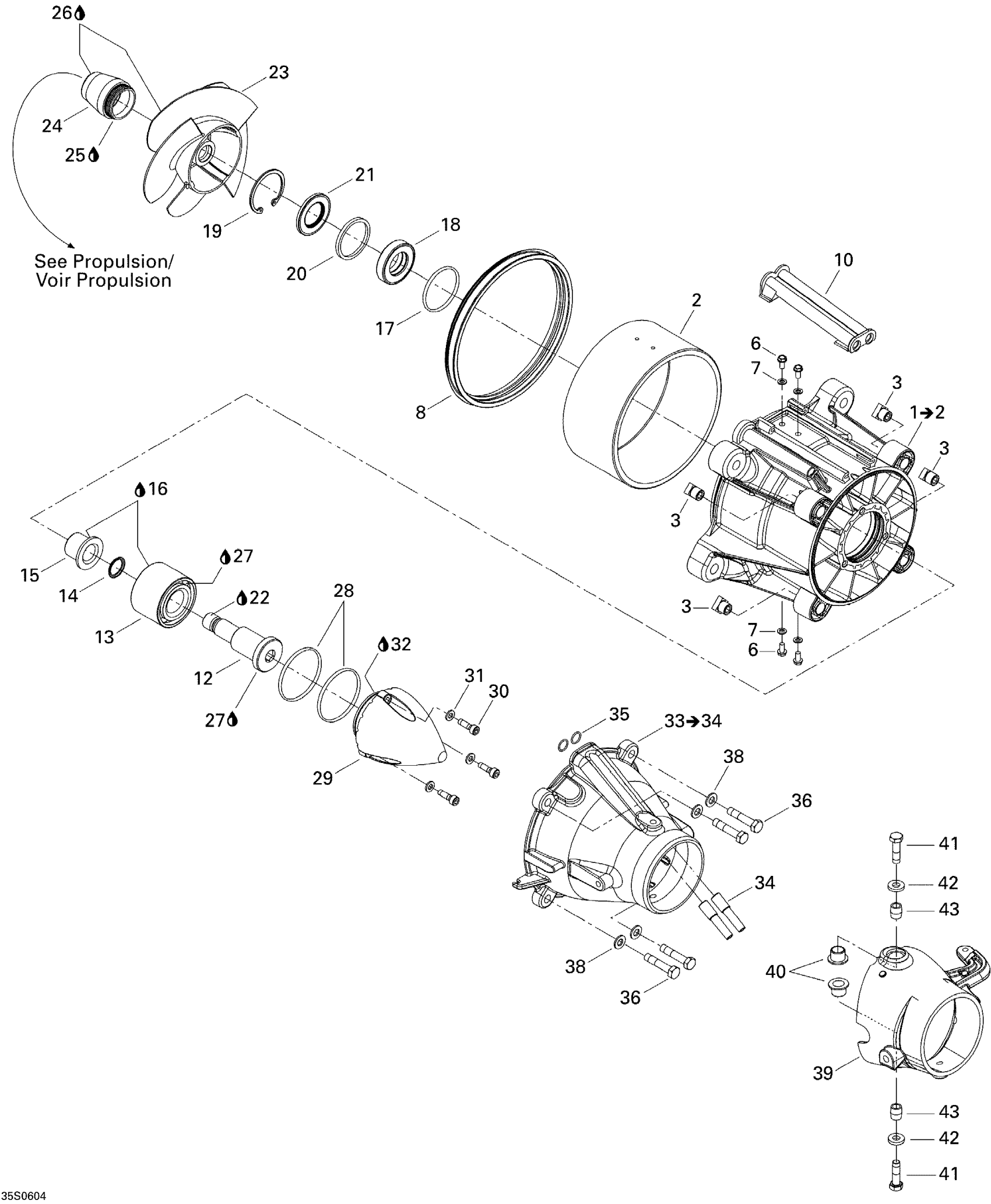

Sea-doo GTX 4-TEC, STD, 2006 Pump Diagram
#
1
Impeller Housing Ass'y | Includes 1 to 5
267000269
Unavailable
2
Wear Ring
267000419
Unavailable
3
Square Nut M8
211100033
Unavailable
6
Hex. Plastite Screw #10 X 3/8"
250000040
Unavailable
8
Neoprene Seal
293200087
Unavailable
10
Water Outlet
271000785
Unavailable
12
Impeller Shaft
267000054
Unavailable
13
Angled Bearing This part replaces 267000030.
267000900
Unavailable
14
O-Ring
505070315
Unavailable
15
Shaft Sleeve
267000318
Unavailable
16
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
17
O-Ring
293300090
Unavailable
18
Seal
271002071
Unavailable
19
Circlip
293370038
Unavailable
20
Spacer
271001393
Unavailable
21
Oil Seal
293200089
Unavailable
22
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
23
Impeller Assy | Port Side This part replaces 267000211.
267000675
Unavailable
24
Guard
271002225
Unavailable
25
Était Was 293800050 Loctite 577, 250 ml
219704459
Unavailable
26
Synthetic Grease, 400 G
293550010
Unavailable
27
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
28
O-Ring
293300086
Unavailable
29
Impeller Cover
267000262
Unavailable
30
Socket Head Screw M6 X 20, Scotch Grip
205562060
Unavailable
32
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
33
VENTURI, BLACK - Call your local BRP dealership
267000226
Unavailable
34
Siphon Tube
271001133
Unavailable
36
Hex. Screw M8 X 50, Scotch Grip
207285060
Unavailable
38
Stainless, Flat Washer 8 mm
234081600
Unavailable
39
STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 267000140.
267000552
Unavailable
40
Venturi Bushing
293900001
Unavailable
41
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
42
Flat Washer M8.5 x 18
293050001
Unavailable
43
Sleeve
271001816
Unavailable
