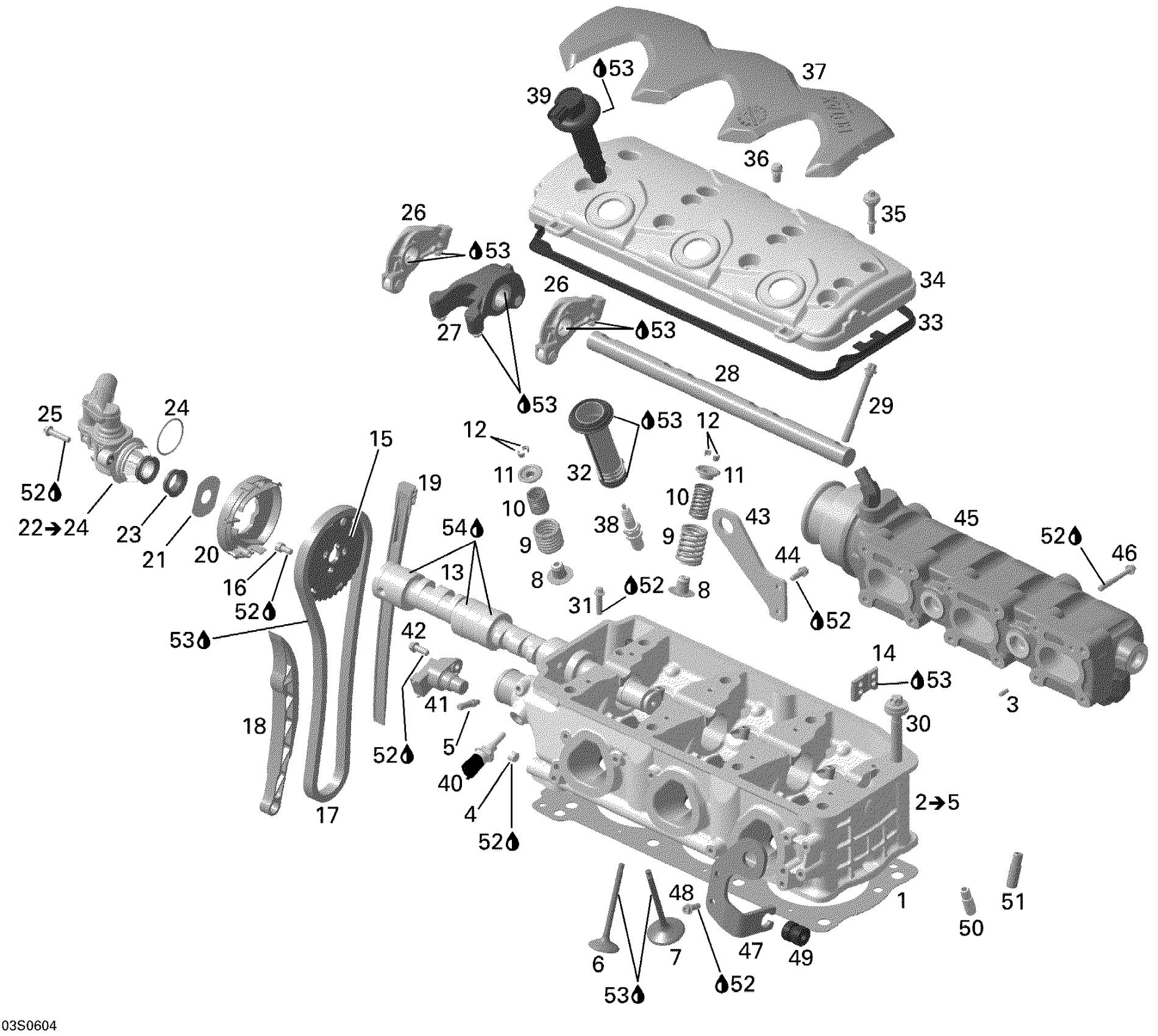

Sea-doo GTX 4-TEC, STD, 2006 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

Unavailable

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

Unavailable

3

Drive Pin 5 X 10

420929650

Unavailable

4

Plug Screw M10 X 1

420641323

Unavailable

5

Hose Nipple

420924724

Unavailable

6

Exhaust Valve, 31 mm

420254682

Unavailable

7

Intake Valve 38MM

420253163

Unavailable

8

Valve Steam Seal

420630202

Unavailable

9

Valve Spring

420238180

Unavailable

10

Valve Spring Inside

420838280

Unavailable

11

Valve Spring Retainer

420254283

Unavailable

12

Valve Cotter

420253645

Unavailable

13

Camshaft This part replaces 420837851.

420637780

Unavailable

14

Camshaft Guide

420851694

Unavailable

15

Timing Gear, 38 Teeth

420254309

Unavailable

16

Allen Screw M6 X 12

420840032

Unavailable

17

Camshaft Chain

420898042

Unavailable

18

Chain Tension Guide

420236541

Unavailable

19

Chain Guide

420236501

Unavailable

20

Cover

420660037

Unavailable

21

Thrust Washer

420627494

$6.11

22

Vent Valve | Includes 22 to 24

420856500

Unavailable

23

V-Ring 20S FPM Blow By Valve

420630125

$9.37

24

O-Ring

420950870

$4.41

25

Torx Flange Screw M6 X 25

420641238

Unavailable

26

Rocker Arm, Exhaust

420254329

Unavailable

27

Rocker Arm, Inner

420254316

Unavailable

28

Rocker Arm, Shaft

420854594

Unavailable

29

Torx Screw M8 X 72

420641080

Unavailable

30

Torx Flange Screw M11 X 147

420641110

Unavailable

31

Torx Flange Screw M6 X 25

420641238

Unavailable

32

Spark Plug Pipe

420851754

Unavailable

33

Valve Cover Gasket | Included in gasket kit

420950820

Unavailable

34

VALVE COVER - Call your local BRP dealership

420811587

Unavailable

35

Hex Screw M6 X 30

420440568

Unavailable

36

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

37

Valve Cover

420660167

Unavailable

38

Spark Plug, NGK DCP-R8E

715900637

Unavailable

39

Ignition Coil Kit This part replaces 420664020.

296000307

Unavailable

40

Temperature Sensor

278002895

$31.82

41

Camshaft Position Sensor Ass'y

420664046

$70.82

42

Torx Flange Screw M6 X 16

420641048

Unavailable

43

Transport Bracket PTO

420851618

Unavailable

44

Torx Flange Screw M6 X 16

420641048

Unavailable

45

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

Unavailable

46

Torx Flange Screw M6 X 45

420641198

Unavailable

47

TRANSPORT BRACKET FRONT - Call your local BRP dealership

420951380

Unavailable

48

Torx Flange Screw M6 X 16

420641048

Unavailable

49

Rubber Bracket

420660090

Unavailable

50

Valve Guide | Inner diameter machined

420253929

Unavailable

51

Valve Guide | Inner diameter machined

420253929

Unavailable

52

Loctite 243, 10 ml

293800060

$20.77

53

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

54

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable
