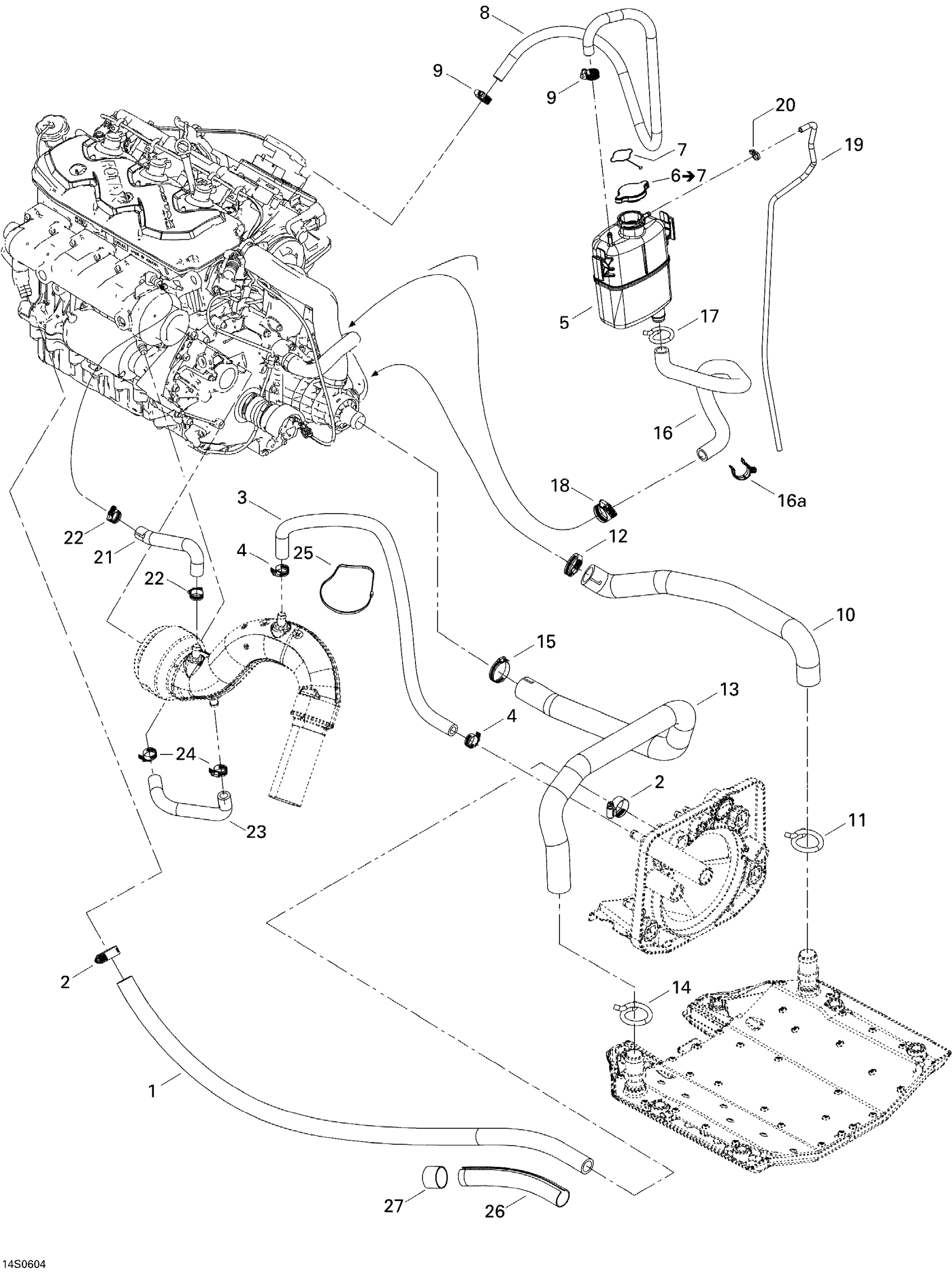

Sea-doo GTX 4-TEC, STD, 2006 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

Unavailable

2

Tridon Gear Clamp

293650051

Unavailable

3

Was 276000001 Hose 12.5 mm

219704394

Unavailable

4

Tridon Gear Clamp

293650172

$2.68

5

Coolant Tank

276000086

Unavailable

6

Pressure Cap | Includes 720 to 720a

276000100

Unavailable

7

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

8

Was 275500549 Hose 1/4"

219704357

Unavailable

9

Tridon Gear Clamp

293650170

$1.74

10

RH Radiator Hose

276000248

Unavailable

11

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

12

Tridon Gear Clamp

293650045

Unavailable

13

LH RADIATOR HOSE - Call your local BRP dealership

276000250

$23.05

14

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

15

Tridon Gear Clamp

293650045

Unavailable

16

Formed Return Hose

276000143

Unavailable

16a

Retainer

275500526

Unavailable

17

Spring Clamp

293650115

Unavailable

18

Tridon Gear Clamp

293650019

Unavailable

19

Polyurethane Hose 10000Mm Long

219704410

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$0.83

21

Formed Hose

276000155

Unavailable

22

Tridon Gear Clamp

293650172

$2.68

23

FORMED HOSE - Call your local BRP dealership

276000156

Unavailable

24

Tridon Gear Clamp

293650172

$2.68

25

Tie Wrap 368 mm

293750008

$0.85

26

Tubing 25 MM 1000MM Long

219704402

Unavailable

27

SHRINK TUBING - Call your local BRP dealership

276000125

Unavailable
