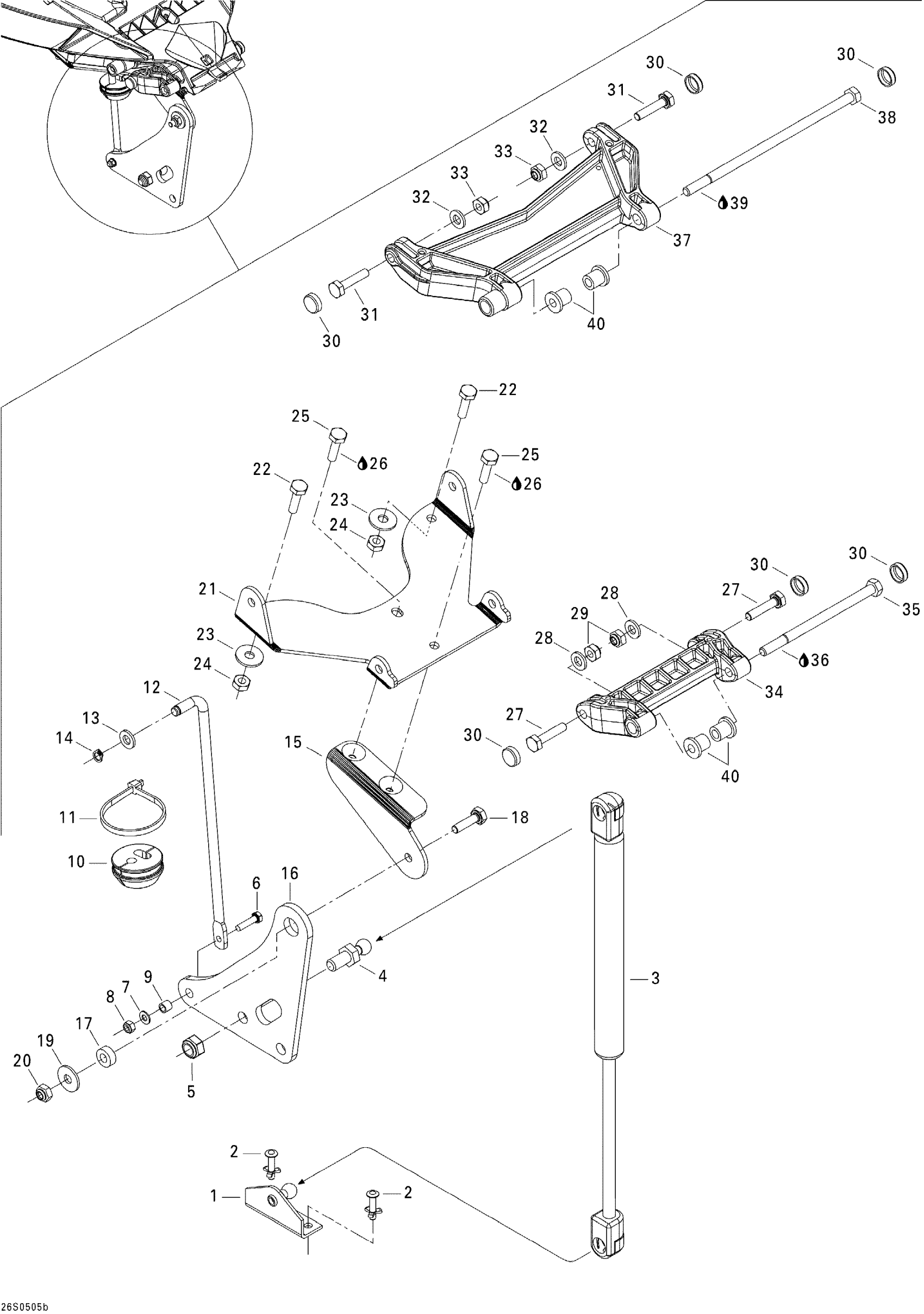

Sea-doo GTX 4-TEC, STD, 2005 Front Storage Compartment 2 Diagram

#

Description
Price

1

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

2

Avdel Rivet 3/16"

293150037

$1.49

3

Gas Shock Ass'y

269501625

$77.99

4

Ball Head Stud

250300016

$14.81

5

Hex. Elastic Nut M8

232581600

$1.49

6

Hex. Screw M4 X 16 | Europe

207141660

$1.49

7

Flat Washer 4 mm, Stainless

234041600

$1.49

8

Elastic Stop Nut M4

232541600

$1.49

9

SPACER - Call your local BRP dealership

269501130

Unavailable

10

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

11

Tie-Rap 180 mm

414115200

$1.49

12

ROD - Call your local BRP dealership

269500842

Unavailable

13

Stainless Flat Washer M6

234061600

$1.49

14

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

15

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

16

LEVER - Call your local BRP dealership

269501576

Unavailable

17

SPACER - Call your local BRP dealership

269501172

Unavailable

18

Hex. Forming Screw M6 X 20

207162060

$1.49

19

Flat Washer M6, Stainless

234062600

$1.49

20

Hex. Elastic Stop Nut M6

232561600

$1.49

21

Pivot Support

269500934

Unavailable

22

Hex. Forming Screw M6 X 20

207162060

$1.49

23

Flat Washer M6, Stainless

234062600

$1.49

24

Hex. Elastic Stop Nut M6

232561600

$1.49

25

Hex. Forming Screw M6 X 20

207162060

$1.49

26

Loctite 243, 10 ml

293800060

$21.49

27

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

28

Stainless Flat Washer M6

234061600

$1.49

29

Hex. Elastic Stop Nut M6

232561600

$1.49

30

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

31

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

32

Stainless Flat Washer M6

234061600

$1.49

33

Hex. Elastic Stop Nut M6

232561600

$1.49

34

FRONT ARM - Call your local BRP dealership

269501482

$19.99

35

Hex. Screw M6 X 100

230060060

$7.59

36

Loctite 243, 10 ml

293800060

$21.49

37

REAR ARM - Call your local BRP dealership

269501481

Unavailable

38

Hex. Screw M6 X 150

230065060

$10.16

39

Loctite 271, 10 ml

293800005

$26.99

40

Sleeve

269500706

$4.65
