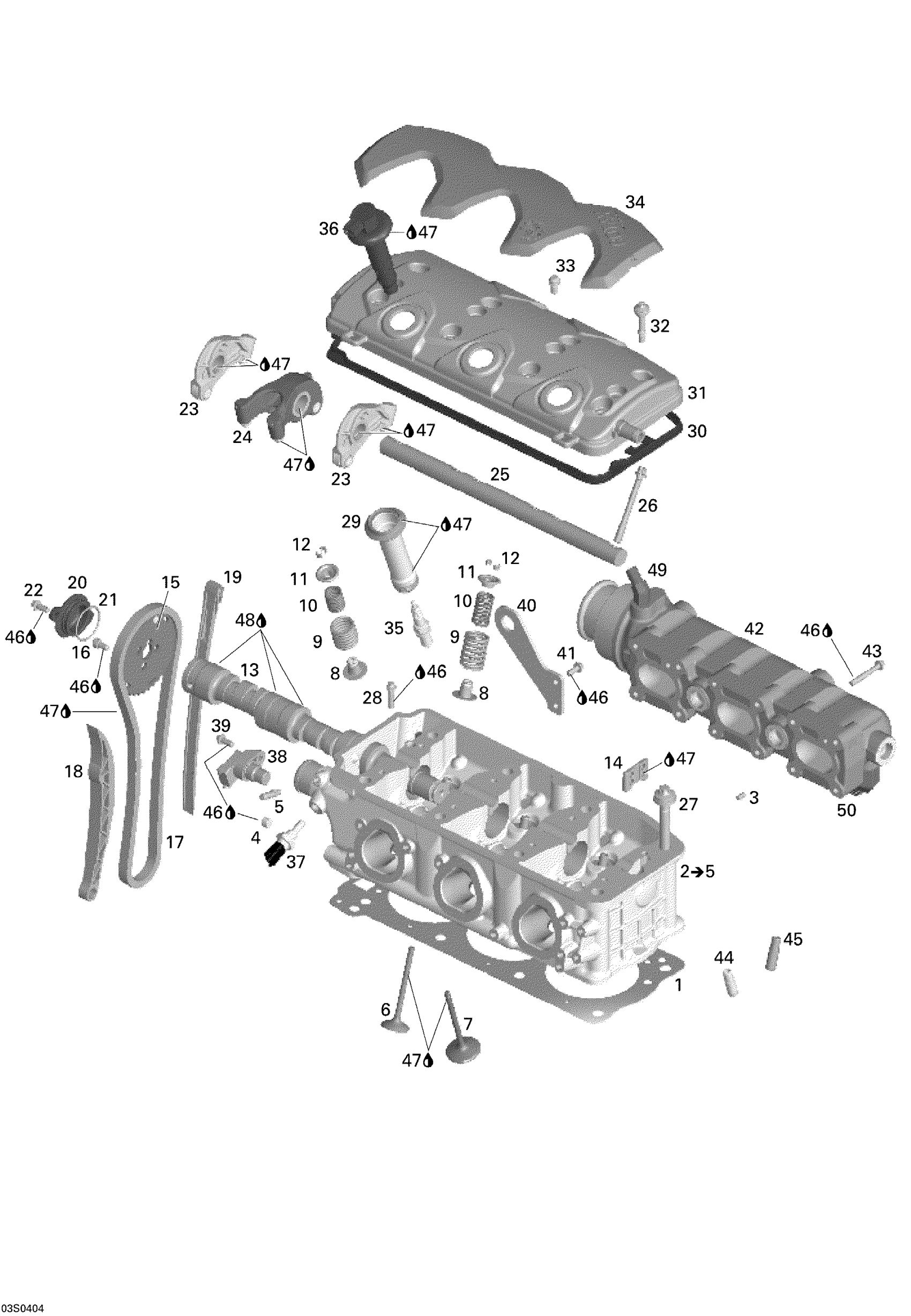

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

Unavailable

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

Unavailable

2

REBUILD-CYLINDER HEAD 1503 - Call your local BRP dealership

421000644

Unavailable

3

Drive Pin 5 X 10

420929650

Unavailable

4

Plug Screw M10 X 1

420641323

Unavailable

5

Hose Nipple

420924724

Unavailable

6

EXHAUST VALVE, 31 MM - Call your local BRP dealership | 6 Valves per package. Always replace complete valve set.

295501047

Unavailable

7

Intake Valve 38MM

420253163

Unavailable

8

Valve Steam Seal

420630202

Unavailable

9

Valve Spring

420238180

Unavailable

10

Valve Spring Inside

420838280

Unavailable

11

Valve Spring Retainer

420254283

Unavailable

12

Valve Cotter

420253645

Unavailable

13

Camshaft

420837628

Unavailable

14

Camshaft Guide

420851694

Unavailable

15

Timing Gear, 38 Teeth

420254309

Unavailable

16

Allen Screw M6 X 12

420840032

Unavailable

17

Camshaft Chain

420898042

Unavailable

18

Chain Tension Guide

420236541

Unavailable

19

Chain Guide

420236501

Unavailable

20

CAMSHAFT COVER - Call your local BRP dealership

420660100

Unavailable

21

O-Ring

420950870

Unavailable

22

Torx Flange Screw M6 X 16

420641048

Unavailable

23

Rocker Arm, Exhaust

420254329

Unavailable

24

Rocker Arm, Inner

420254316

Unavailable

25

Rocker Arm Shaft

420854592

Unavailable

26

Torx Screw M8 X 72

420641080

Unavailable

27

Torx Flange Screw M11 X 147

420641110

Unavailable

28

Torx Flange Screw M6 X 25

420641238

Unavailable

29

Spark Plug Pipe

420851754

Unavailable

30

Valve Cover Gasket | Included in gasket kit

420950820

Unavailable

31

VALVE COVER - Call your local BRP dealership

420811581

Unavailable

32

Allen Screw M6 x 30,5

420440561

Unavailable

33

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

34

Valve Cover

420660167

Unavailable

35

Spark Plug, NGK DCP-R8E

715900637

Unavailable

36

Ignition Coil Kit This part replaces 420664020.

296000307

Unavailable

37

Temperature Sensor

278002895

Unavailable

38

Camshaft Position Sensor Ass'y

420664046

Unavailable

39

Torx Flange Screw M6 X 16

420641048

Unavailable

40

Transport Bracket PTO

420851618

Unavailable

41

Torx Flange Screw M6 X 16

420641048

Unavailable

42

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

Unavailable

43

Torx Flange Screw M6 X 45

420641198

Unavailable

44

Valve Guide | Inner diameter machined

420253929

Unavailable

45

Valve Guide | Inner diameter machined

420253929

Unavailable

46

Loctite 243, 10 ml

293800060

Unavailable

47

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

48

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable

49

Fitting 45°

420922434

Unavailable

50

Fitting 90°

420922249

Unavailable
