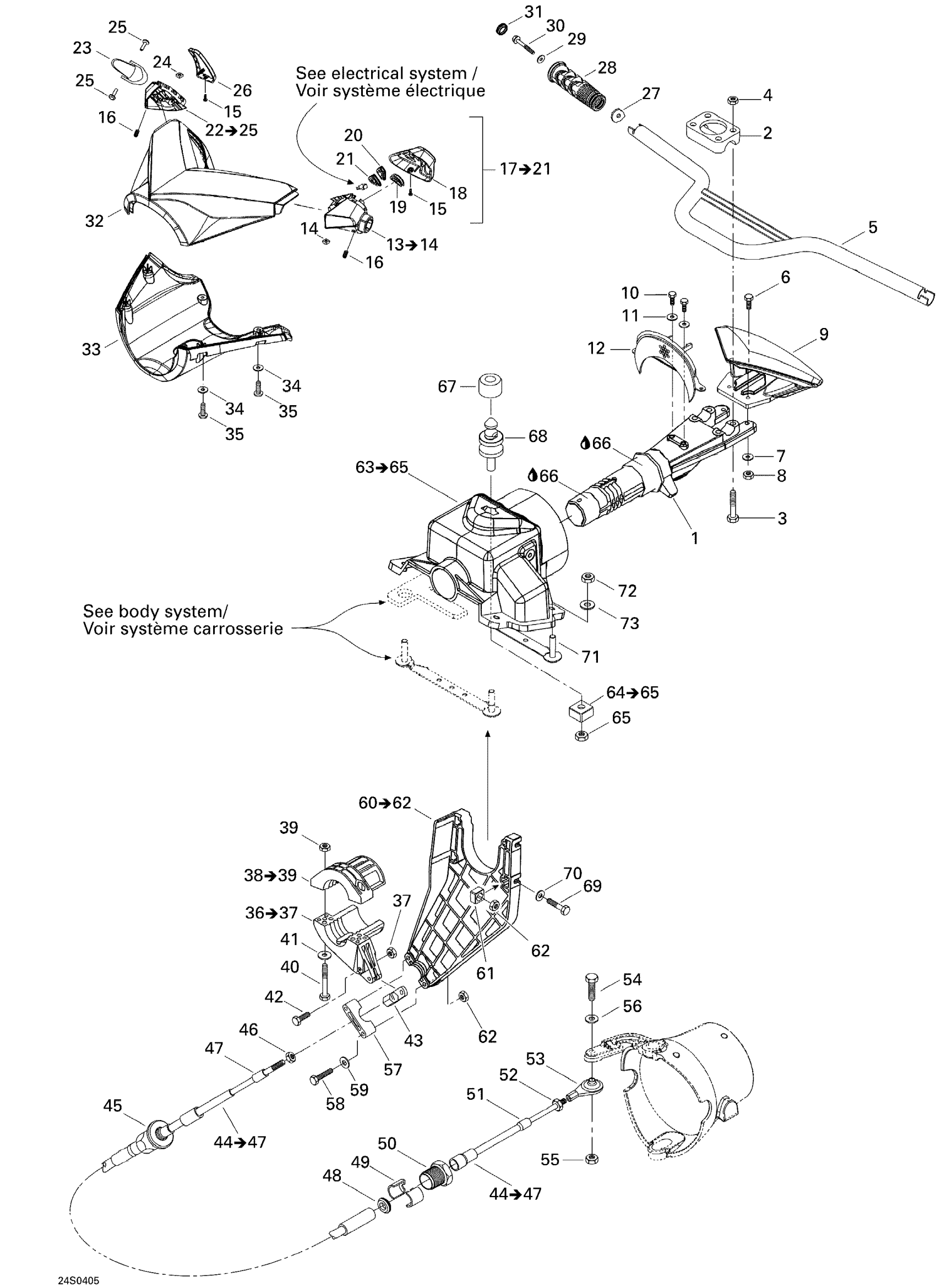

Sea-doo GTX 4-TEC, 2004 Steering System Diagram

#

Description
Price

1

Steering Stem

277000562400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

4

Hex. Elastic Nut M8

232581600

Unavailable

5

Handlebar

277001012

Unavailable

6

Hex. Screw M6 X 30

207063060

Unavailable

7

Stainless Flat Washer M6

234061600

Unavailable

8

Hex. Elastic Stop Nut M6

232561600

Unavailable

9

Handle Pad Arthen Clay, M-532 | STD

277001096

Unavailable

9

Handle Pad Metalic Silver (M-519) | WAKE

277001100

Unavailable

10

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

11

Flat Washer M6, Stainless

234062600

Unavailable

12

PLATE - Call your local BRP dealership

277000549

Unavailable

13

HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9

277001481

Unavailable

14

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

15

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

16

Socket Head Screw M6 X 16

250000036

Unavailable

17

LH HOUSING COVER ASS?Y - Call your local BRP dealership | STD, Includes 17 to 21

277001061

Unavailable

17

Housing Cover Ass’Y | WAKE / Includes 17 to 21

277001103

Unavailable

18

LH Cover Housing

277001025

Unavailable

19

Stop Knob

278001713

Unavailable

20

MODE KNOB - Call your local BRP dealership

278001714

Unavailable

21

SET KNOB - Call your local BRP dealership

278001715

Unavailable

22

THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19

277001483

Unavailable

23

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

24

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

25

PIN - Call your local BRP dealership

277000381

Unavailable

26

THROTTLE HOUSING COVER - Call your local BRP dealership

277001023

Unavailable

27

Insert Grip Handle

277001863

Unavailable

28

Handle Grip | STD

277001130

Unavailable

28

Handle Grip Kit Red/Black | Premium, Viper Red B-176 This part replaces 277001245.

295500979

Unavailable

29

Flat Washer M6, Stainless

234062600

Unavailable

30

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

31

Black, Cap

277000203

Unavailable

32

UPPER STEERING COVER, BLACK - Call your local BRP dealership

277000952

Unavailable

33

LOWER STEERING COVER, BLACK - Call your local BRP dealership

277001145

Unavailable

34

Flat Washer M5, Stainless

234051600

Unavailable

35

Hex. Flange Screw K40 X 16

241141660

Unavailable

36

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

37

Hex. Elastic Stop Nut M6

232561600

Unavailable

38

Arm Thrust | Includes 43 to 44

277000519

Unavailable

39

Hex. Elastic Stop Nut M6

232561600

Unavailable

40

Hex. Screw M6 X 25

207162560

Unavailable

41

Flat Washer M6, Stainless

234062600

Unavailable

42

Hex. Screw M6 X 30

211000081

Unavailable

43

Ball Joint

277001180

Unavailable

44

Steering Cable Ass’Y | Includes 44 to 47

277000949

Unavailable

45

Ajustment Knob

277000782

Unavailable

46

Hex. Nut 1/4"-28

211100056

Unavailable

47

Terminal Wiper

277000441

Unavailable

48

Rubber Washer

293830063

Unavailable

49

Half Ring

277001527

Unavailable

50

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

51

Terminal Wiper

277000441

Unavailable

52

Hex. Nut 1/4"-28

211100056

Unavailable

53

Ball Joint

277000775

Unavailable

54

Hex. Screw M6 X 35

207063560

Unavailable

55

Hex. Elastic Stop Nut M6

232561600

Unavailable

56

Stainless Flat Washer M6

234061600

Unavailable

57

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

58

Hex. Screw M6 X 50

207065060

Unavailable

59

Stainless Flat Washer M6

234061600

Unavailable

60

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

61

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

62

Hex. Elastic Stop Nut M6

232561600

Unavailable

63

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

64

Nut Housing Ass’Y | Includes 64 to 65

271001115

Unavailable

65

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

68

Latch Stud

291001420

Unavailable

69

Hex. Forming Screw M6 X 20

207162060

Unavailable

70

Stainless Flat Washer M6

234061600

Unavailable

71

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

72

Hex. Elastic Nut M8

232581600

Unavailable

73

Stainless, Flat Washer 8 mm

234081600

Unavailable
