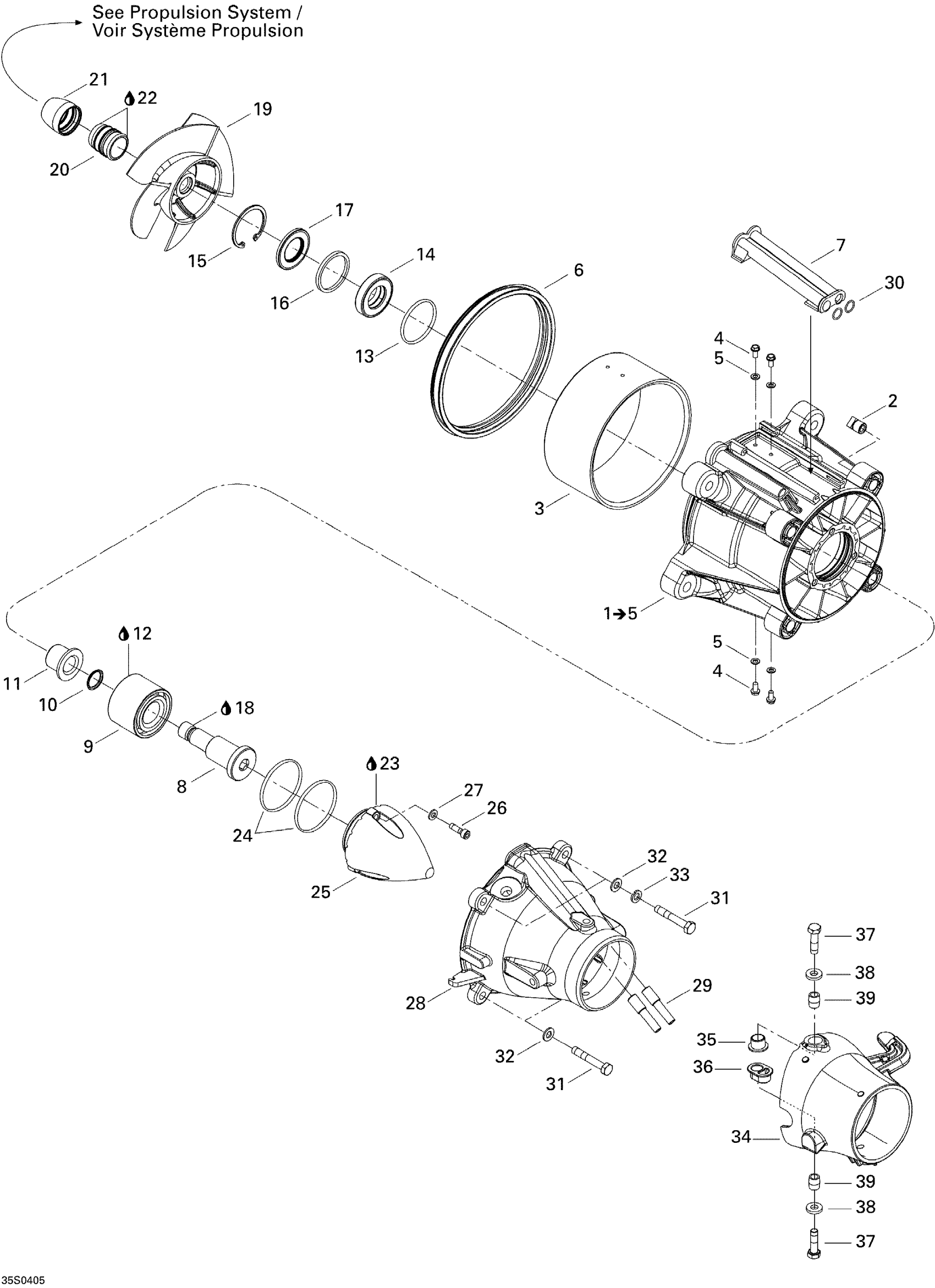

Sea-doo GTX 4-TEC, 2004 Pump Diagram
#
1
Impeler Housing Ass'y | Includes 9 to 12
267000056
Unavailable
2
Square Nut M8
211100033
Unavailable
3
Wear Ring
267000419
Unavailable
4
Hex. Plastite Screw #10 X 3/8"
250000040
Unavailable
5
Flat Washer M5, Stainless
234051600
Unavailable
6
Neoprene Seal
293200087
Unavailable
7
Water Outlet
271000785
Unavailable
8
Impeller Shaft
267000054
Unavailable
9
Angled Bearing This part replaces 267000030.
267000900
Unavailable
10
O-Ring
505070315
Unavailable
11
Shaft Sleeve
267000318
Unavailable
12
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
13
O-Ring
293300090
Unavailable
14
Seal
271002071
Unavailable
15
Circlip
293370038
Unavailable
16
Spacer
271001393
Unavailable
17
Oil Seal
293200089
Unavailable
18
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
19
Impeller Assy This part replaces 267000115.
267000673
Unavailable
20
IMPELLER BOOT - Call your local BRP dealership
271001152
Unavailable
21
IMPELLER RING - Call your local BRP dealership
271001153
Unavailable
22
Synthetic Grease, 400 G
293550010
Unavailable
23
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
24
O-Ring
293300086
Unavailable
25
Impeller Cover
267000262
Unavailable
26
Socket Head Screw M6 X 20, Scotch Grip
205562060
Unavailable
27
Stainless Flat Washer M6
234061600
Unavailable
28
Venturi, Black
267000068
Unavailable
29
Siphon Tube
271001133
Unavailable
30
O-Ring
293300013
Unavailable
31
Hex. Screw M8 X 50, Scotch Grip
207285060
Unavailable
32
Stainless, Flat Washer 8 mm
234081600
Unavailable
33
Lock Washer 8 mm, Stainless
234181601
Unavailable
34
Steering Nozzle, Black
271001469
Unavailable
35
Venturi Bushing
293900001
Unavailable
36
Plastic Bushing
293900010
Unavailable
37
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
38
Flat Washer M8.5 x 18
293050001
Unavailable
39
Sleeve
271001816
Unavailable
