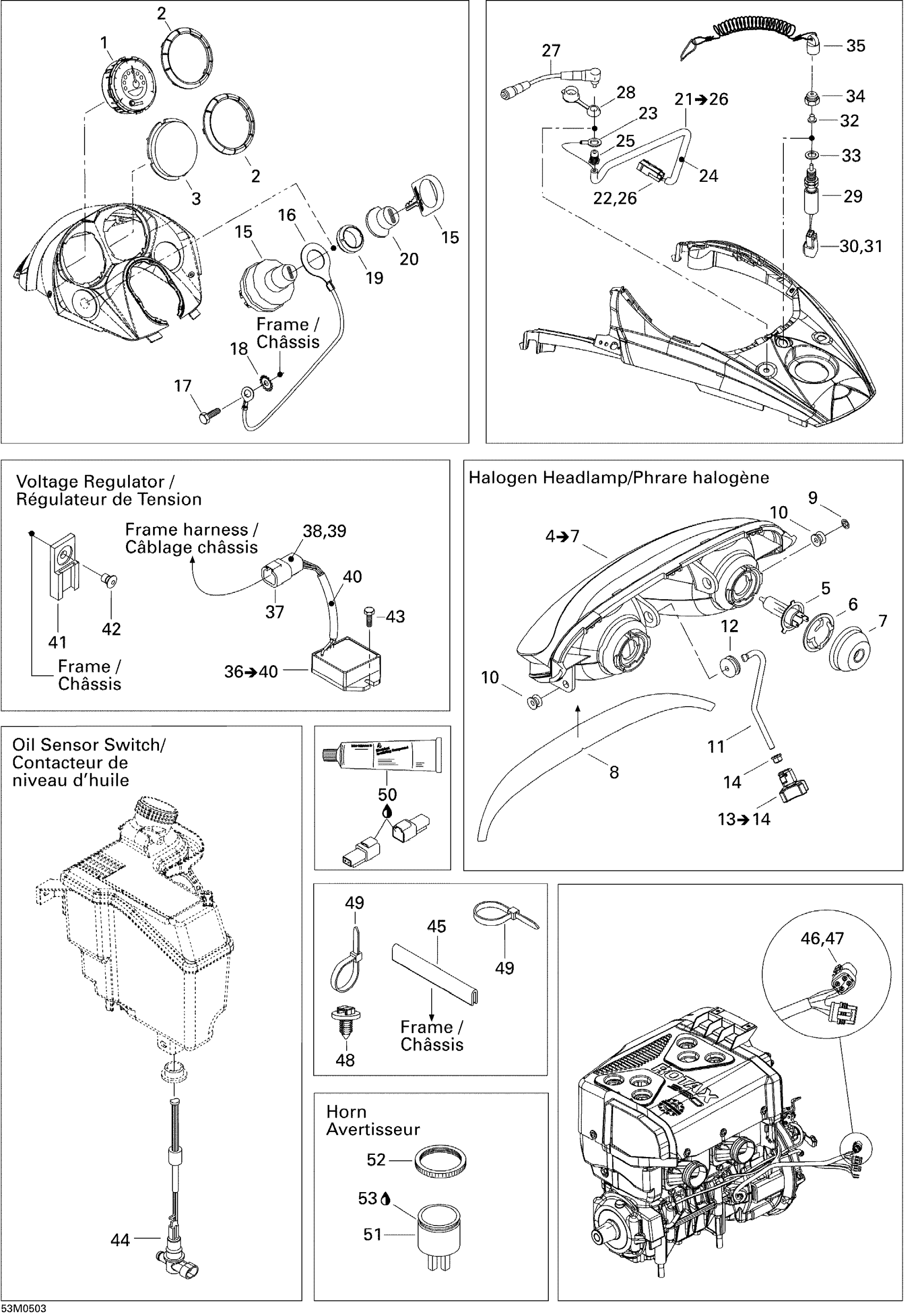

Ski-Doo GTX 380F, 2005 Electrical Accessories Diagram

#

Description
Price

1

Speedometer

515176263

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

Unavailable

3

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

9

Push Nut

732610072

Unavailable

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

15

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

16

Ignition Switch Ground Wire

515176288

Unavailable

17

Hex. Forming Screw M6 X 10

210261050

$1.42

18

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

19

FACE NUT - Call your local BRP dealership

410112100

$14.29

20

Switch Boot

570013700

Unavailable

21

Visor Harness

515177837

$32.28

22

Male Terminal

515175232

$1.49

23

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

24

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

25

Visor Plug

415096100

Unavailable

26

Male Terminal Housing, 2 Circuits

515175654

$7.48

27

Extension

515175851

Unavailable

28

Cap

572103300

$9.65

29

Brake Switch

515175653

$15.57

30

Male Terminal Housing, 2 Circuits

515175654

$7.48

31

Male Terminal

515175232

$1.49

32

Plunger Cap

570151100

$10.14

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Switch Nut

515145900

$10.83

35

Cap Ass'y

515178283

$37.66

36

Voltage Regulator | Includes 34 to 40

515176189

Unavailable

37

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

38

Male Terminal

515175568

$7.48

39

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

40

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

41

Clip

270000141

$8.33

42

Avdel Rivet 3/16"

293150037

$0.47

43

Hex. Flange Screw M6 X 12

210261250

$1.56

44

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

45

TRIM - Call your local BRP dealership

509000263

Unavailable

46

Female Terminal Housing, 4 Circuits

278001473

Unavailable

47

Female Lock, 4 Circuits

278001474

Unavailable

48

Mount Dart

293730040

$0.86

49

Tie-Rap 180 mm

414115200

$0.09

49

Tie Wrap 142 mm

293750002

Unavailable

49

Tie-Rap 173 mm

293750009

Unavailable

50

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

51

HORN - Call your local BRP dealership

515176035

Unavailable

52

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

53

Silicone Sealant 51388, 300 ml

296000309

Unavailable
