2005 Ski-Doo GTX 380F Windshield AND Console Diagram

← All diagrams

Find the part on the Windshield AND Console diagram for your 2005 Ski-Doo GTX 380F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

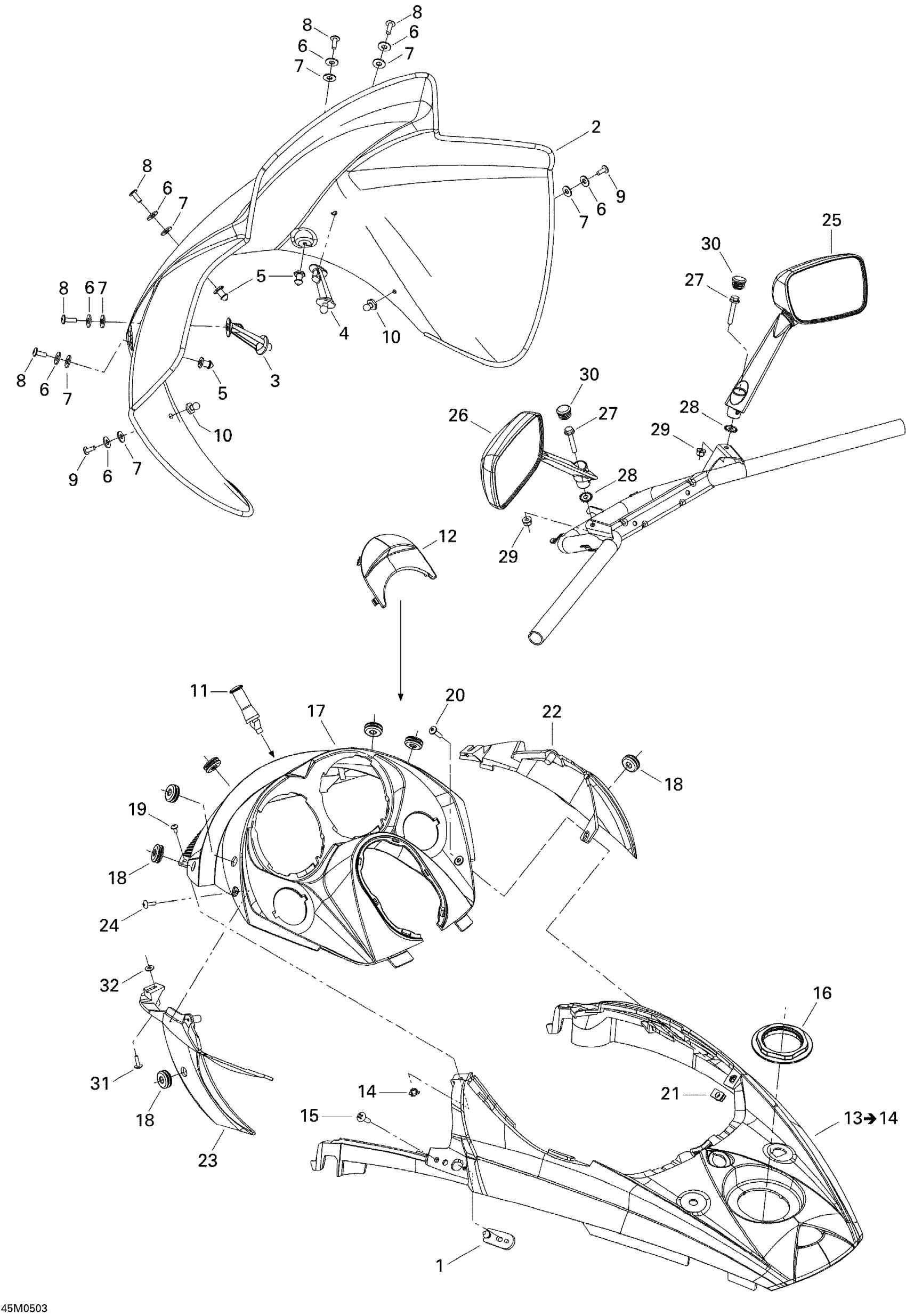

2005 Ski-Doo GTX 380F Windshield AND Console Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOOD LATCH - Call your local BRP dealership

517302616

—
Out of stock

2

High Windshield

517303247

1
Out of stock

3

LH WINDSHIELD SUPPORT - Call your local BRP dealership

517303214

—
Out of stock

4

RH WINDSHIELD SUPPORT - Call your local BRP dealership

517303215

—
Out of stock

5

Knob

517303439

3
Out of stock

6

Washer M5

250200025

7
Out of stock

7

Rubber Washer 5 mm

250200024

7
Out of stock

8

Torx Screw K50 X 16

250000720

5
Out of stock

9

Torx Screw M5 X 14

250000742

2
Out of stock

10

Knob

517245800

2
Out of stock

11

WINDSHIELD SUPPORT - Call your local BRP dealership

517303197

—
Out of stock

12

CONSOLE CAP - Call your local BRP dealership

517302592

—
Out of stock

13

CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 11 to 12

517303381

—
Out of stock

14

—

$6.31

In stock

15

Torx Screw M6 X 20

250000722

2

$1.34

In stock

16

CONSOLE NUT - Call your local BRP dealership

517302575

—
Out of stock

17

INDICATOR SUPPORT - Call your local BRP dealership

517303397

—
Out of stock

18

Grommet

517302841

7

$2.22

In stock

19

Torx Screw M4 X 8

250000127

2
Out of stock

20

Torx Screw M5 X 20

250000724

2
Out of stock

21

Panel Nut M5 X 0.8

250000958

2
Out of stock

22

RH AIR DEFLECTOR - Call your local BRP dealership

517303413

—
Out of stock

23

LH AIR DEFLECTOR - Call your local BRP dealership

517303414

—
Out of stock

24

4

$0.81

In stock

25

RH MIRROR - Call your local BRP dealership

517302449

—
Out of stock

26

LH MIRROR - Call your local BRP dealership

517302450

—
Out of stock

27

Hex. Flange Screw M6 X 35

207663544

2
Out of stock

28

2

$0.92

In stock

29

Hex. Flange Elastic Nut M6

233261494

2
Out of stock

30

Cap

517302716

2
Out of stock

31

Screw M4 X 16

250000725

2
Out of stock

32

2

$0.92

In stock
