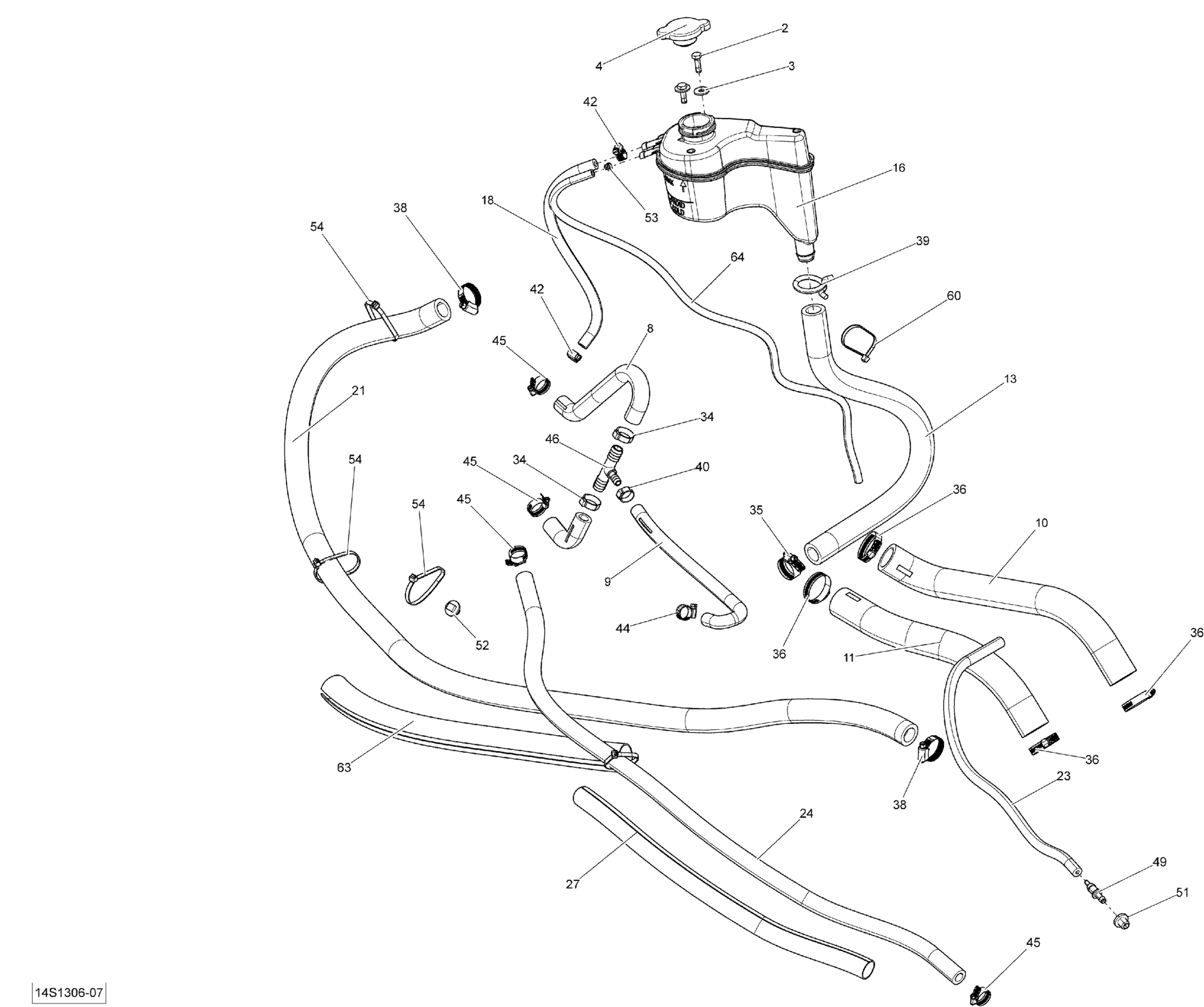

Sea-doo GTX 215, 2013 Cooling System Diagram

#

Description
Price

2

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

3

Flat Washer M6, Stainless

234062600

$0.64

4

Pressure Cap | Includes 720 to 720a

276000100

$20.77

8

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

9

Formed Hose | Without Catalyst

276000246

$14.92

10

Radiator Hose This part replaces 276000240.

276000491

$40.27

11

Radiator Hose

276000241

$32.28

13

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

16

Coolant Tank

276000265

$102.67

18

Was 275500549 Hose 1/4"

219704357

$183.82

21

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

23

Not Available As Spare Parts

XXX

Unavailable

24

Was 276000001 Hose 12.5 mm

219704394

$42.87

27

Tubing 25 MM 1000MM Long

219704402

$12.69

34

Oetiker Clamp

293650012

$4.94

35

Tridon Gear Clamp

293650019

$4.81

36

Tridon Gear Clamp

293650185

$10.91

38

Tridon Gear Clamp

293650051

$3.61

39

Spring Clamp

293650115

$2.46

40

Oetiker Clamp | Europe

293650030

$4.32

42

Tridon Gear Clamp

293650170

$1.74

44

Tridon Gear Clamp

293650171

$2.46

45

Tridon Gear Clamp

293650172

$2.68

46

T-Fitting

293710116

$14.27

49

Straight Fitting

293710133

$13.52

51

Grommet

293720029

$1.13

52

Mount Dart

293730040

$0.86

53

Tie Wrap 94 mm | 4X4

293750001

$0.83

54

Tie Wrap 368 mm

293750008

$0.85

60

Tie-Rap 180 mm

414115200

$0.09

63

Tubing 25 MM 1000MM Long

219704402

$12.69

64

Polyurethane Hose 10000Mm Long

219704410

$46.12
