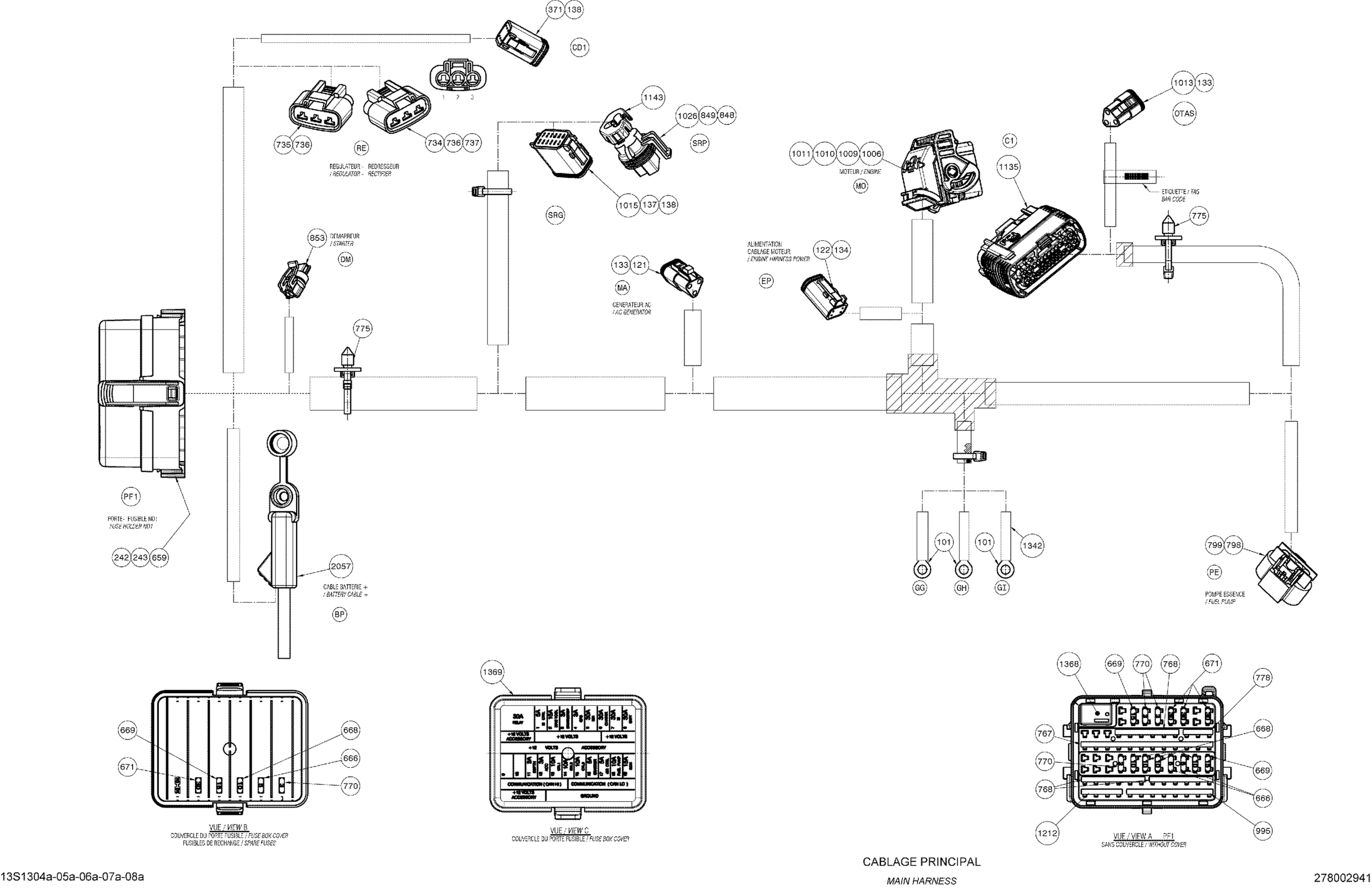

Sea-doo GTX 155, 2013 Electrical Harness Diagram

#

Description
Price

1000

Wiring Harness | Includes 101 To 2057

278002941

Unavailable

101

Open Barrel Terminal

278001392

Unavailable

112

Female Terminal

278000632

Unavailable

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

122

Male Connector, 4 Circuits | CE

278000739

$14.92

133

Female Lock

409207200

$3.48

134

Male Lock, 4 Circuits | CE

278000738

$2.91

137

Female Lock, 12 Circuits

409015700

$3.73

138

Sealing Cap

293000052

Unavailable

242

Wire Seal

278000218

Unavailable

243

Wire Seal

710000048

Unavailable

371

Male Wedge, 6 Circuits

515175678

Unavailable

659

Wire Seal

278001065

Unavailable

666

Little Fuse, 5 Amperes

710000742

Unavailable

668

Little Fuse, 10 Amperes

710000744

Unavailable

669

Little Fuse, 15 Ampere

710000745

Unavailable

671

Little Fuse, 30 Amperes

710000747

Unavailable

690

Female Terminal

710000890

$3.73

732

Female Terminal

710000877

Unavailable

734

Female Housing, 3 Circuits

710000879

Unavailable

735

Housing, 3 Circuits

710000880

Unavailable

736

Seal

710000881

Unavailable

737

Cap

710000882

$9.19

751

Female Terminal

710000918

Unavailable

757

Female Terminal

278001665

Unavailable

767

Bus Bar

278002165

Unavailable

768

Bus Bar

278002165

Unavailable

770

Little Fuse, 3 AMP

710001008

Unavailable

775

Mount Dart

293730040

$0.86

778

Bus Bar

278002165

Unavailable

798

Male Housing, 4 Circuits

278002185

Unavailable

799

Wire Seal

278002186

Unavailable

800

Female Terminal

278002187

Unavailable

848

PLUG - Call your local BRP dealership

710001158

Unavailable

849

Wire Seal

710001159

Unavailable

850

Female Terminal

710001160

Unavailable

853

Wire Seal

710001163

Unavailable

854

Female Terminal

710001164

Unavailable

995

Bus Bar

278002165

Unavailable

1006

Female Terminal Housing, 48 Circuits

710001588

$39.62

1007

Female Terminal

710001589

Unavailable

1008

Female Terminal

710001590

Unavailable

1009

Cover, 48 positions

710001591

Unavailable

1010

Plug

710001592

Unavailable

1011

Plug

710001593

Unavailable

1013

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

1015

Female Terminal Housing, 12 Circuits

278002377

Unavailable

1026

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278002388

Unavailable

1032

Female Terminal

710001727

Unavailable

1135

HOUSING - Call your local BRP dealership

278002451

Unavailable

1137

Female Terminal | Not Shown

278002453

Unavailable

1139

Female Terminal

278002455

Unavailable

1143

LOCK - Call your local BRP dealership

278002459

Unavailable

1204

Female Terminal

278002578

Unavailable

1212

Bus Bar

278002165

Unavailable

1230

Female Terminal | Not Shown

278002642

Unavailable

1342

Shrink Tubing, 6 mm

515177246

Unavailable

1368

Relay 30 Amp

278003828

Unavailable

1369

Fuse Cover This part replaces 278002529.

278002823

Unavailable

2057

Battery Cable

278002815

Unavailable
