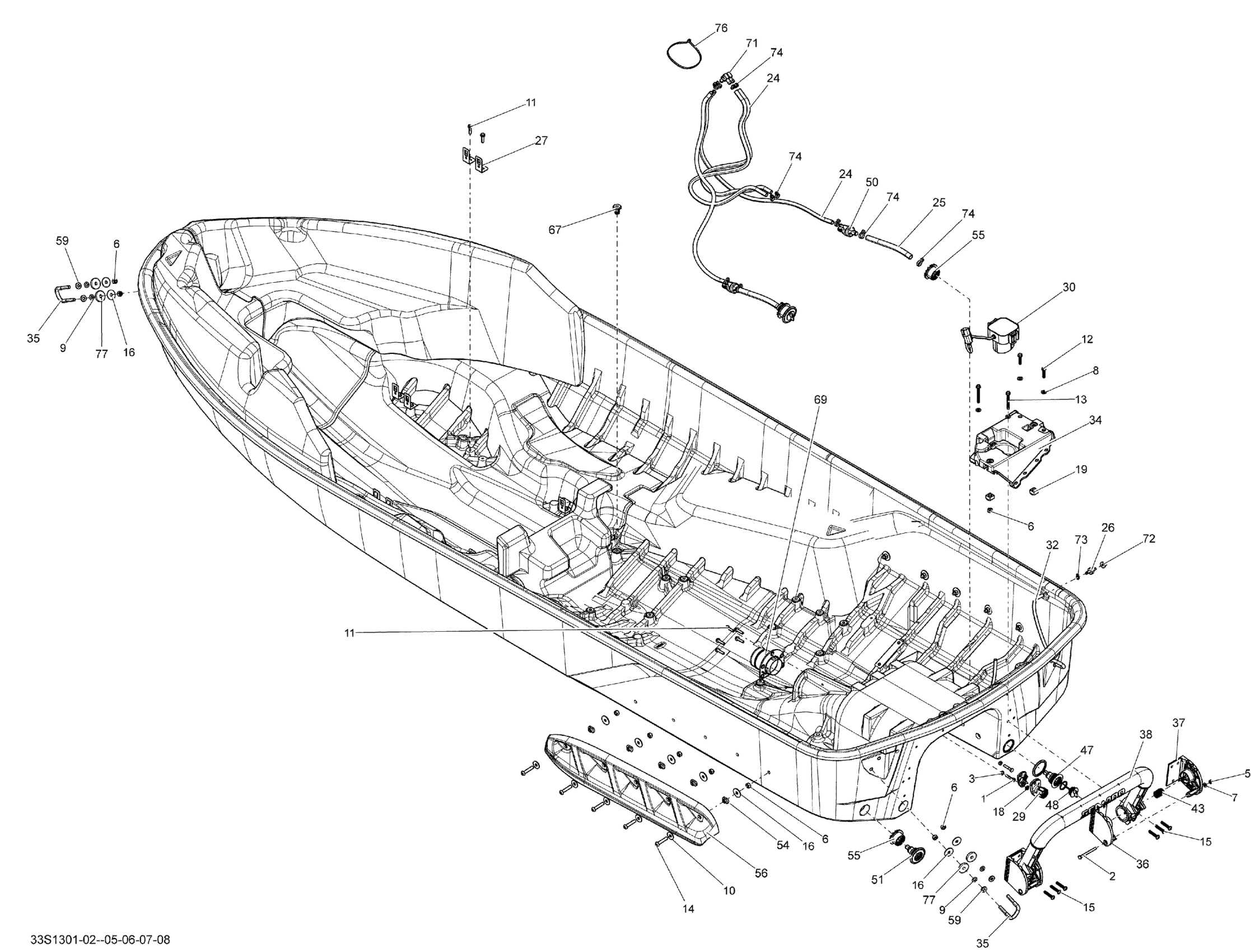

Sea-doo GTX 155, 2013 Hull Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063060

$1.73

2

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$1.78

3

Elastic Stop Nut M6, Brass

232561200

$4.03

5

Hex. Elastic Stop Nut M6

232561600

$1.06

6

Hex. Elastic Nut M8 Brass

232581200

$1.48

7

Stainless Flat Washer M6

234061600

$0.28

8

Flat Washer M8, Stainless

234080600

$1.43

9

Flat Washer 8 mm, Nylon

234081100

$1.15

9

Flat Washer 8 mm, Nylon

234081100

$1.15

10

Flat Washer 8 mm, Stainless

234082600

$2.27

11

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.67

12

Hex. Flange Screw M6.81 X 30

243163060

$2.18

13

Hex. Flange Screw M6.81 X 55

243165560

$3.73

14

Torx Screw M8 X 40, Stainless

250000452

$3.73

15

Torx Screw

250000468

$3.58

16

Flat Washer 8 mm, Stainless

250200175

$1.48

18

Sealing Washer

250200114

$4.15

19

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

24

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

25

Was 275500008 Hose 12 mm

219704356

$6.82

26

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

27

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

29

Cable Adaptor Ass'y

277001881

$17.88

30

Depth Sensor

278002954

$373.99

32

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

34

Battery Base Ass'y

278002343

$58.93

35

U-Clamp

292000933

$37.28

36

A Section Support

292001509

$59.99

37

B Section Support

292001510

$59.99

38

Overmolded Bar

292001204

$141.01

43

Spring

292001259

$24.60

47

Drain Neck Ass'y

292001315

$24.60

48

Plug Drain Ass'y | Includes 310 to 310b

292002024

$11.81

50

Bailer Ass'y

292001310

$22.36

51

Drain Neck Ass'y

292001317

$24.60

54

Spacer Sponson

292001349

$9.84

55

Bushing

292001371

$14.43

56

LH Sponson

292001877

$83.55

56

RH Sponson

292001878

$83.55

59

Flat Washer M8.5 x 18

293050001

$1.48

67

INSERT CAPUCHON M8 - Call your local BRP dealership

293450290

Unavailable

69

HULL INSERT - Call your local BRP dealership

293450306

Unavailable

71

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

72

Grommet

293720029

$1.30

73

Tie Wrap 94 mm | 4X4

293750001

$0.96

74

Tie Wrap 94 mm | 4X4

293750001

$0.96

76

Tie Wrap 368 mm

293750008

$0.97

77

Rubber Washer

293830037

$2.68

80

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable
