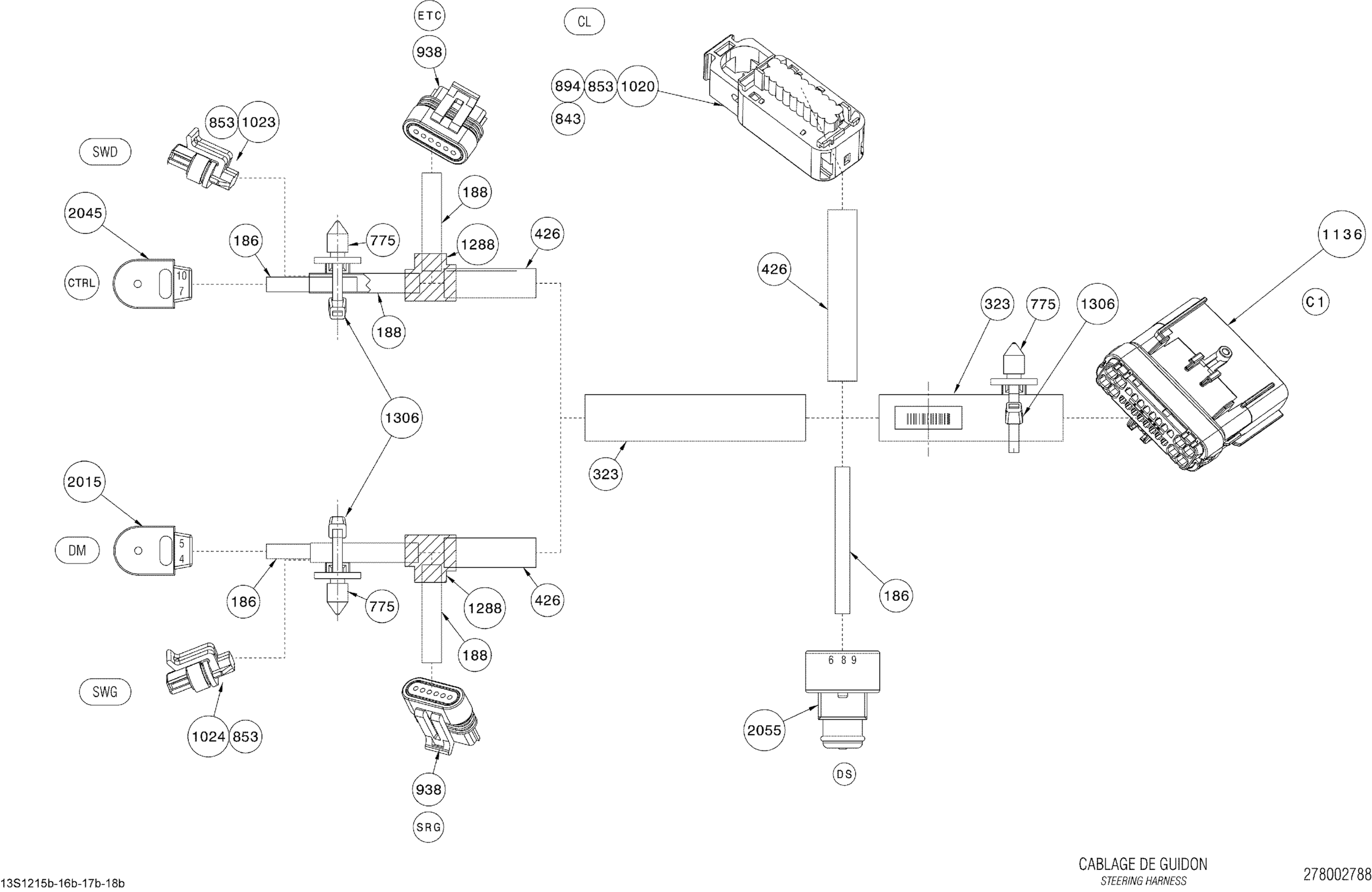

Sea-doo GTX 155, 2012 Electrical Harness Steering Diagram

Description

Price

Steering Handle Harness | Includes 1 to 2055

278002788

$373.07

775

Mount Dart

293730040

$0.86

827

Female Terminal

710001119

$4.32

843

Seal Wire

710001153

$1.79

853

Wire Seal

710001163

$5.10

854

Female Terminal

710001164

$5.92

894

Cap

710001225

$7.27

938

Female Terminal Housing 6 Circuits

278002299

$8.85

1020

Male Terminal Housing, 20 Circuits

278002385

$16.89

1023

Female Terminal Housing, 3 Circuits

278003442

$8.29

1024

Female Terminal Housing 3 Circuits

278002387

$7.24

1136

HOUSING - Call your local BRP dealership

278002452

$15.20

1138

Male Terminal

278002454

$4.51

1140

Male Terminal

278002456

$4.51

2015

Start/Stop Switch Kit

295501137

$48.07

2045

Start/Stop Switch Kit

295501137

$48.07

2055

Safety Switch This part replaces 278002325.

278002773

$89.67
