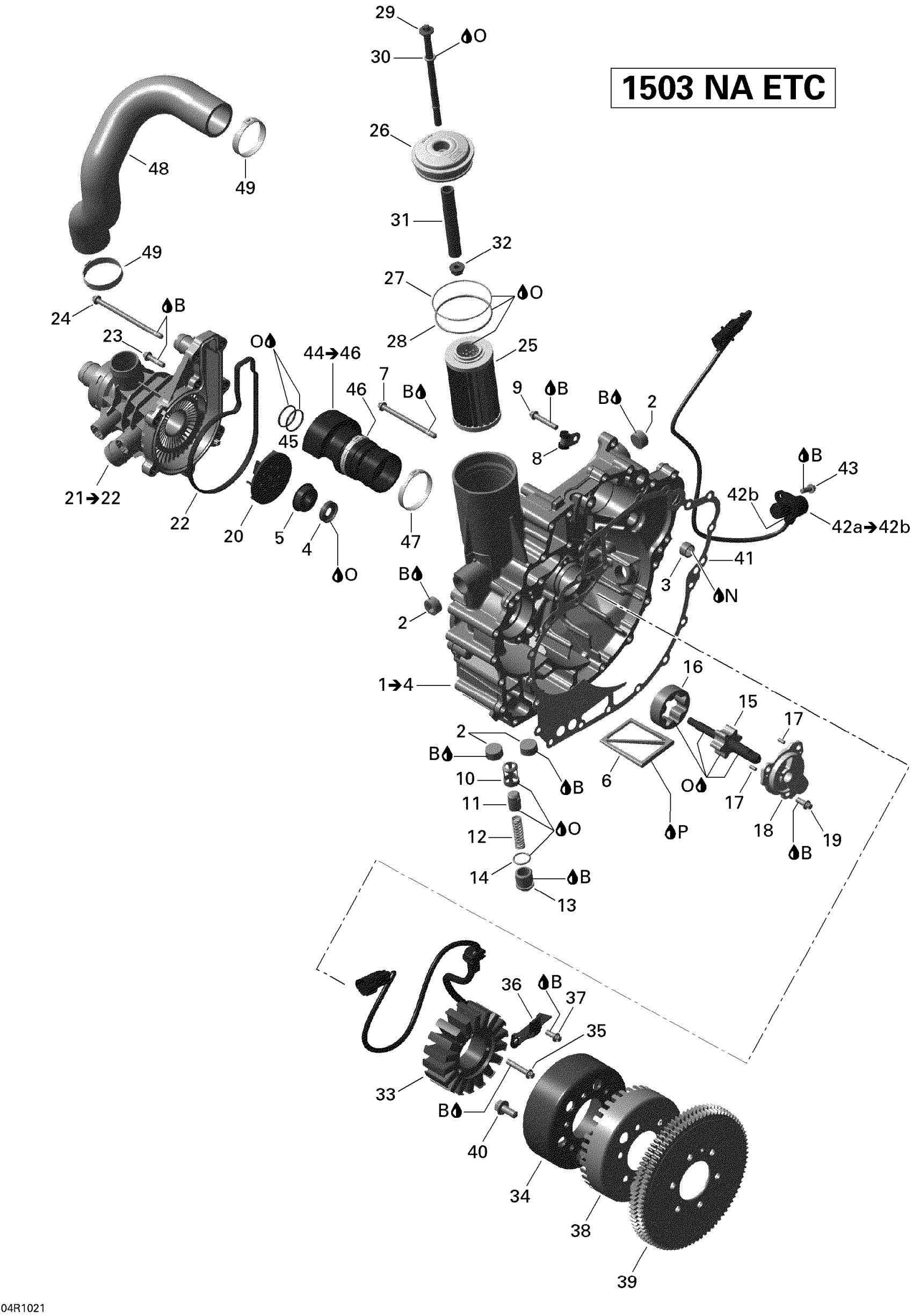

Sea-doo GTX 155, 2010 PTO Cover And Magneto V1 Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-5

420910527

$597.73

2

Plug Screw M20 X 1.5

420641317

$12.15

3

Needle Bushing

420232482

$17.88

4

Oil Seal

420650315

$11.04

5

Rotary Seal

420650371

$41.01

6

Oil Sieve

420956950

$14.33

7

Torx Flange Screw M6 X 85

420641228

$7.01

8

Clamp

420853414

$17.13

9

Torx Flange Screw M6 X 35

420641258

$3.19

10

Valve Seat Sleeve

420256606

$27.58

11

Piston Valve

420256638

Unavailable

12

Compression Spring

420939410

Unavailable

13

Plug Screw M20 X 1.5

420641052

$35.79

14

O-Ring

420230890

$5.06

15

Pump Shaft Ass'y

420837472

$52.21

16

Oil Pump Rotor 16 mm

420956675

$33.55

17

Needle Pin

420929070

$1.79

18

Oil Pump Cover

420811591

$34.30

19

Torx Flange Screw M6 X 16

420641048

$2.82

20

Impeller

420922801

$16.39

21

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$276.84

22

Water Pump Housing Gasket | Included in gasket kit

420950840

$13.07

23

Torx Flange Screw M6 X 25

420641238

$3.07

24

Torx Flange Screw M6 X 105

420641338

$7.01

25

Oil Filter

420956741

$12.79

26

Oil Filter Cover

420612081

$10.57

27

O-Ring

420230923

$2.97

28

O-Ring

420850500

$3.01

29

Hex Screw M8 X 140.5

420641104

$12.87

30

O-Ring

420950860

$3.67

31

Spacer

420857229

$19.37

32

Hex. Nut M8

420842610

$12.87

33

Stator Plate This part replaces 420889721.

420889726

$319.49

34

Magneto Flywheel

420296900

$461.99

35

Torx Flange Screw M6 X 35

420641258

$3.19

36

Retaining Plate

420926300

$14.90

37

Torx Flange Screw M6 X 16

420641048

$2.82

38

Trigger Wheel

420966851

$17.13

39

Starter Gear, 86 Teeth

420835163

$276.84

40

Hex Screw

295501162

$13.16

41

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

42a

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

42b

O-Ring

420431580

$14.10

43

Torx Flange Screw M6 X 16

420641048

$2.82

44

Ball Bearing With Bellows | Includes 42 to 43

420832753

$137.28

45

Not Available As Spare Parts

XXX

Unavailable

46

Gear Clamp 46.8-50.0MM

420853023

$7.01

47

Gear Clamp

420851653

$7.01

48

Formed Hose This part replaces 420922825.

420922828

$41.76

49

Oetiker Clamp

420851687

$10.82

B

Loctite 243, 10 ml

293800060

$21.49

N

Dow Corning 111, 150 g

413707000

$59.99

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99
